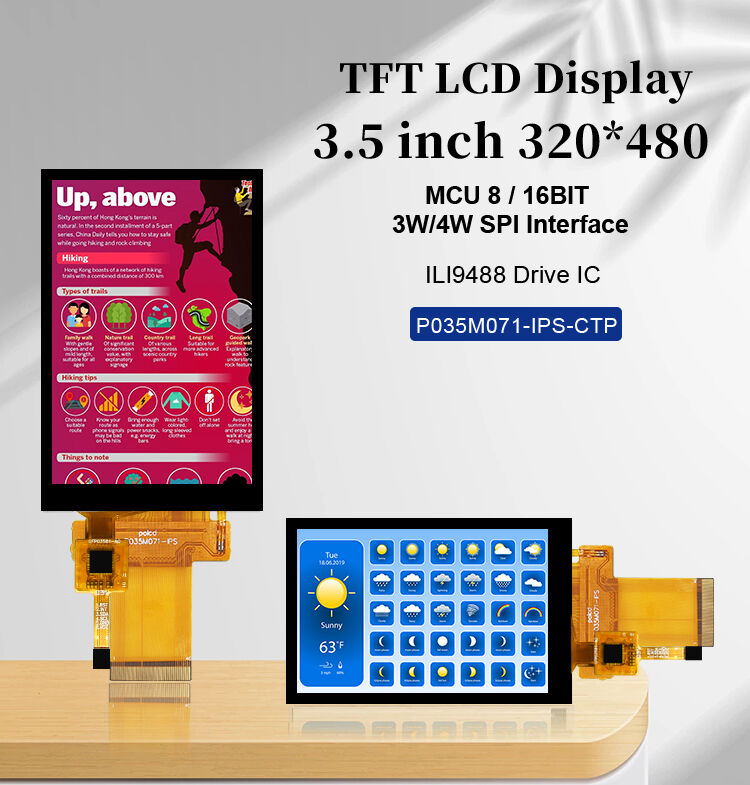

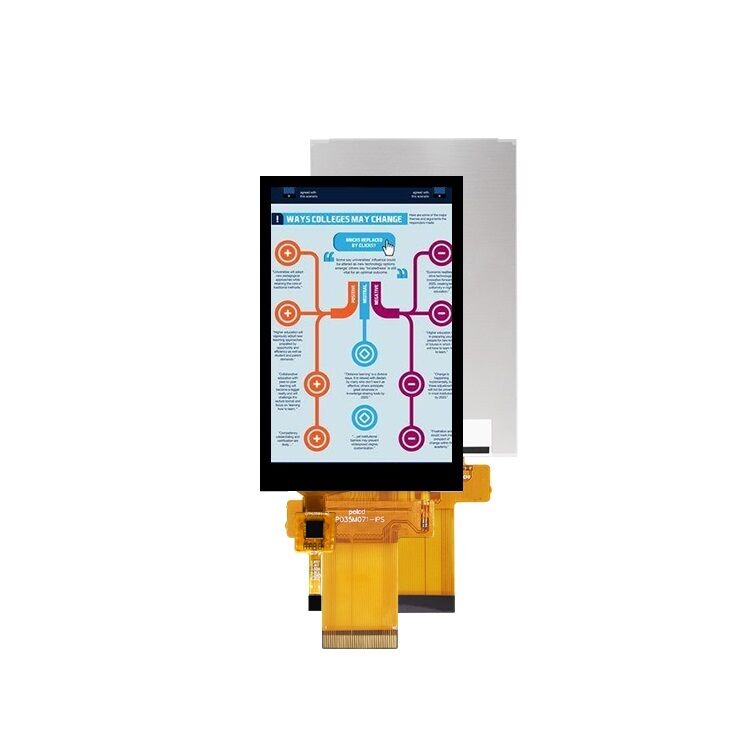

Name: Polcd Thin Glass 3.5" Capacitive Touch Screen IPS 320x480 Smart TFT LCD Display for Electronic Product
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P035M071-IPS-CTP
Availability: InStock

Home > Products > TFT LCD Module >

Polcd Thin Glass 3.5" Capacitive Touch Screen IPS 320x480 Smart TFT LCD Display for Electronic Product

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P035M071-IPS-CTP

Request A Quote

Product Details

Resolution:

3.5 Inch 320x480

Interface:

MCU 8/16BIT SPI 3/4 Wire

Brightness (cd/m²):

300 Nit

Viewing Direction(eye):

IPS All View Angle

Driver IC:

ILI9488

Outline Dimension:

54.66x84.71x3.40mm

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

1-7 working days

Payment Terms

T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram

Supply Ability

40,000 PCS per day

Polcd 3.5 inch Capacitive Touch Screen Manufacturer MCU SPI interface 40pin 320x480 IPS TFT LCD Module

Get Best Price

Video

Polcd 3.5 Inch 320*480 IPS Screen Tft Lcd Display Module Panel For Camera

Get Best Price

Video

Polcd 3.5 Inch TFT Display MCU SPI Interface Industrial Equipment IPS Screen Full View Color Lcd Module

Get Best Price

Video

Polcd 3.5 Inch LCD Module 320X480 pixels IPS Screen ILI9488 SPI MCU interface TFT Display

Get Best Price

008613714394335

anna@polcd.com

86-755-21011746

Contact Now

Product Description

Description:

3.5 inch TFT LCD is a high-quality display screen that is commonly used in various electronic devices, including handheld devices, automotive displays, and medical equipment.

The 3.5 inch TFT LCD is a versatile and reliable display technology that offers high-quality display performance, low power consumption, and durability. Its wide range of applications and customization options make it an ideal choice for a variety of electronic devices.

Parameter:

Model	P035M071-IPS-CTP
Screen Size	3.5 inch
Number of Pixel	320RGB(H)x480(V)
Display area	48.96(H)x73.44(V)mm
Pixel pitch	51(H)x153(V) um
Pins	40 pins
CTP IC	FT6336U

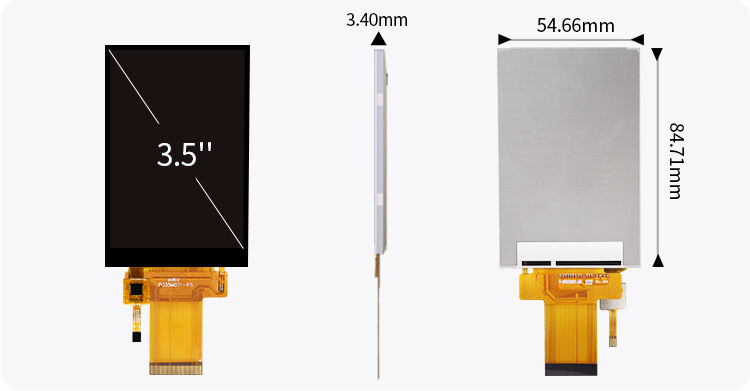

Outline Dimension	54.66x84.71x3.40mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262k
Luminance(cd/m2)	300 nit
Contrast Ratio	700:1
Interface	MCU 8/16bit 3/4wire SPI
Back-light	LED Side-light type
Drive IC	ILI9488
Operation Temperature	-20~70 ℃
Storage Temperature	-30~80 ℃
