Home > Products > TFT LCD Module >
Polcd 3.2'' 3.2 inch 320x480 Vertical Type 350nits RGB SPI Interface ST7701S ic TFT LCD Display

Polcd 3.2'' 3.2 inch 320x480 Vertical Type 350nits RGB SPI Interface ST7701S ic TFT LCD Display

3.2 inch TFT LCD display

320x480 SPI interface LCD

ST7701S vertical TFT module

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P032010A

Contact Us

Request A Quote
Polcd 3.2'' 3.2 inch 320x480 Vertical Type 350nits RGB SPI Interface ST7701S ic TFT LCD Display
Polcd 3.2'' 3.2 inch 320x480 Vertical Type 350nits RGB SPI Interface ST7701S ic TFT LCD Display Polcd 3.2'' 3.2 inch 320x480 Vertical Type 350nits RGB SPI Interface ST7701S ic TFT LCD Display Polcd 3.2'' 3.2 inch 320x480 Vertical Type 350nits RGB SPI Interface ST7701S ic TFT LCD Display Polcd 3.2'' 3.2 inch 320x480 Vertical Type 350nits RGB SPI Interface ST7701S ic TFT LCD Display
Product Details
Size (inch):
3.2 Inch
Resolution:
320x820
Brightness:
300 Cd/m²
Interface:
RGB SPI 16bit
Driver Ic:
ST7701S
Contrast Ratio:
600:1
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Delivery Time
1-7 working days
Payment Terms
T/T,L/C,Credit card,PayPal,D/A,D/P
Supply Ability
40,000 PCS per day
RELATED PRODUCTS
Good price Polcd ILI9488 Drive 3.5 inch LCD Module High Brightness 300 nit IPS Wide View CTP RTP 320*480 TFT Display online Video

Polcd ILI9488 Drive 3.5 inch LCD Module High Brightness 300 nit IPS Wide View CTP RTP 320*480 TFT Display

Get Best Price
Good price Polcd 3.2'' 3.2 inch 320x480 Vertical Type 350nits RGB SPI Interface ST7701S ic TFT LCD Display online Video

Polcd 3.2'' 3.2 inch 320x480 Vertical Type 350nits RGB SPI Interface ST7701S ic TFT LCD Display

Get Best Price
Good price Polcd 3.2 inch 240x320 LCD Module Display Spi interface TFT Panel ST7789V 3.2'' LCD Screen online Video

Polcd 3.2 inch 240x320 LCD Module Display Spi interface TFT Panel ST7789V 3.2'' LCD Screen

Get Best Price
Good price Polcd 2.8 inch LCD Module 240x320 SPI Interface 10pin Small Size Color Screen 2.8 TFT Display online Video

Polcd 2.8 inch LCD Module 240x320 SPI Interface 10pin Small Size Color Screen 2.8 TFT Display

Get Best Price
Contact Us
008613714394335
anna@polcd.com
86-755-21011746
Contact Now
Product Description

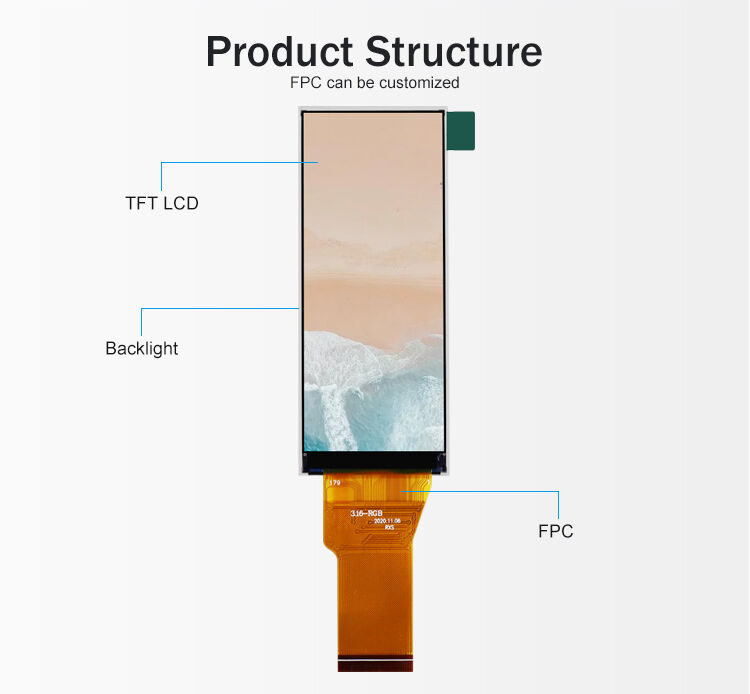

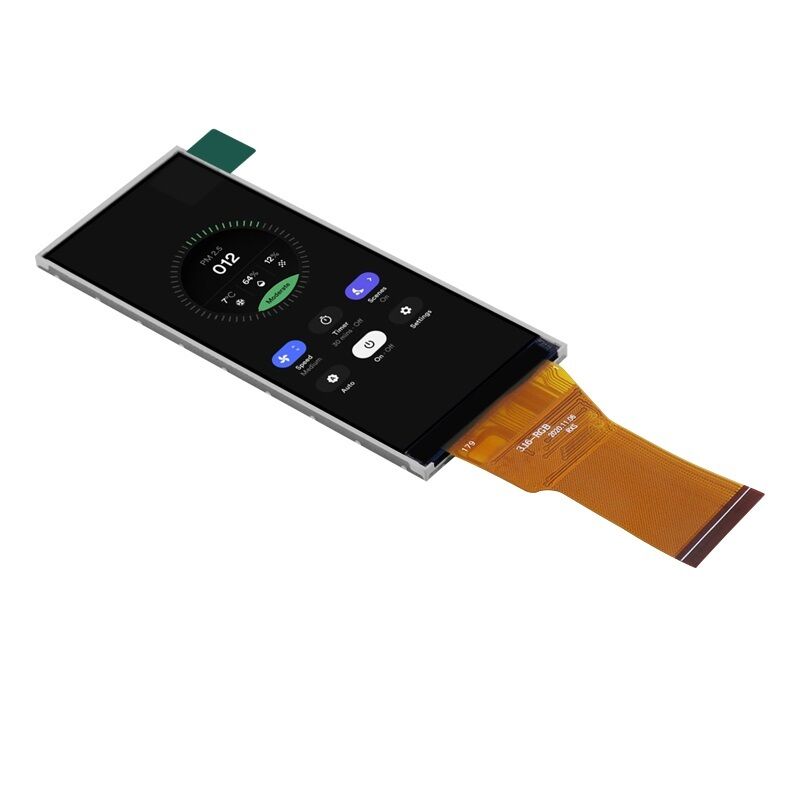

The 3.2 inch long strip TFT LCD screen is a long and narrow display screen, which is usually used in electronic equipment that requires a long strip display. The display uses thin-film transistor (TFT) technology for high-quality graphics and text.



Parameter:

Model

P032010A

LCD Type

IPS TFT-LCD / Transmissive

Size

3.2 inch

Number of Dots

320(RGB)x820

Active area

26.4(W)* 67.65 (H)mm

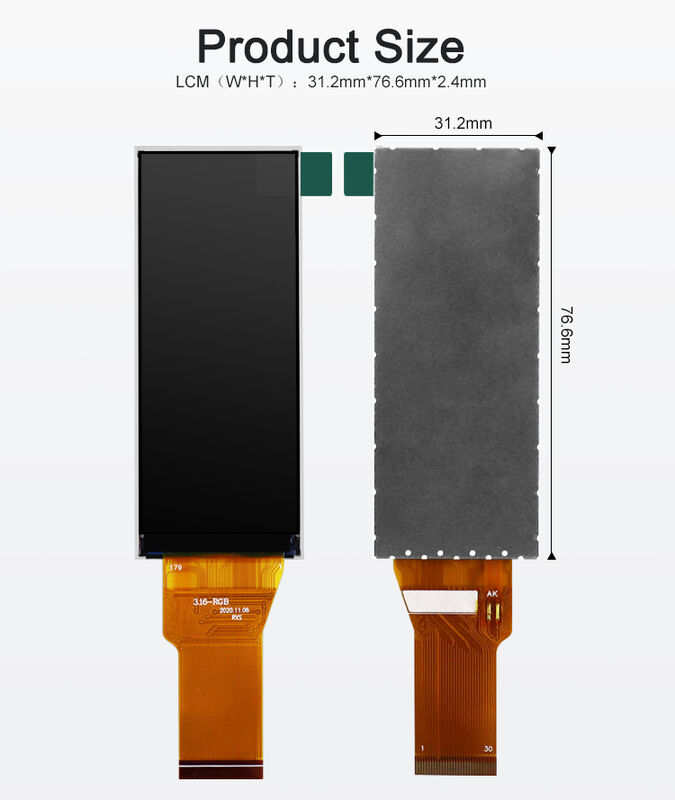

Display Size

31.2(W)* 76.6(H)*2.40(T)mm

Pixel pitch

0.0825*0.0825mm

PIN

30 pin

Pixel arrangement

RGB Vertical Stripe

Backlight type

White LED(4*LED)

Viewing Direction

All view angle

Display Color

262K

Luminance

350cd/㎡

Contrast Ratio

600:1

Drive IC

ST7701S

Interface

RGB  SPI 16bit

Operation Temperature

-20~70℃

Storage Temperature

-30~80℃

Polcd 3.2'' 3.2 inch 320x480 Vertical Type 350nits RGB SPI Interface ST7701S ic TFT LCD DisplayPolcd 3.2'' 3.2 inch 320x480 Vertical Type 350nits RGB SPI Interface ST7701S ic TFT LCD Display
