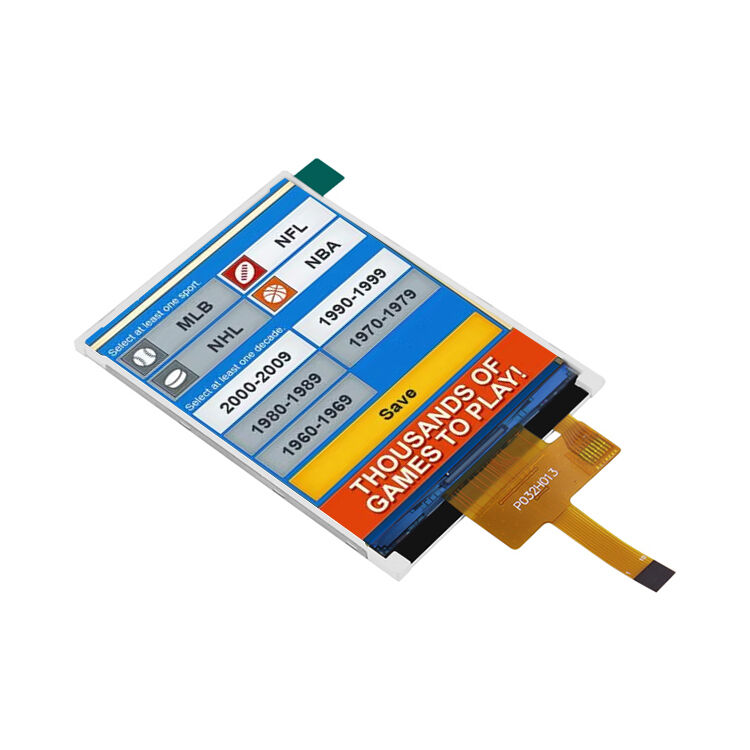

Name: Polcd 3.2 inch 240x320 LCD Module Display Spi interface TFT Panel ST7789V 3.2'' LCD Screen
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P032H013
Availability: InStock

Home > Products > TFT LCD Module >

Polcd 3.2 inch 240x320 LCD Module Display Spi interface TFT Panel ST7789V 3.2'' LCD Screen

3.2 inch TFT LCD module

240x320 SPI LCD display

ST7789V LCD screen panel

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P032H013

Request A Quote

Product Details

Size (inch):

3.2

Resolution:

240*320

Brightness (cd/m²):

300

Interface:

4 Line SPI

Driver Ic:

ST7789V

Contrast Ratio:

500:1

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

1-7 working days

Payment Terms

T/T,L/C,Credit card,PayPal

Supply Ability

40,000 PCS per day

Polcd ILI9488 Drive 3.5 inch LCD Module High Brightness 300 nit IPS Wide View CTP RTP 320*480 TFT Display

Get Best Price

Video

Polcd 3.2'' 3.2 inch 320x480 Vertical Type 350nits RGB SPI Interface ST7701S ic TFT LCD Display

Get Best Price

Video

Polcd 3.2 inch 240x320 LCD Module Display Spi interface TFT Panel ST7789V 3.2'' LCD Screen

Get Best Price

Video

Polcd 2.8 inch LCD Module 240x320 SPI Interface 10pin Small Size Color Screen 2.8 TFT Display

Get Best Price

008613714394335

anna@polcd.com

86-755-21011746

Contact Now

Product Description

TFT LCD is a technology widely used in monitors and TVs, and its full name is Thin Film Transistor Liquid Crystal Display. It is a liquid crystal display technology that controls the brightness of the backlight through changes in the electric field of liquid crystal molecules to display images and text.

LCD screens are made up of many pixels, each of which consists of a thin film transistor (TFT) and a liquid crystal cell. TFT is a switch that can control the transparency of the liquid crystal cell by changing the voltage. When the electric field is changed, the liquid crystal cell twists and redirects the light passing through it, thereby controlling the amount and color of light passing through the pixels to form an image.

Parameter:

Model	P032H013
Screen Size	3.2 inch
Number of Pixel	240RGB(H)x320(V)
PIN	10 pin
Display area	48.60(H)x64.80(V)mm
Pixel pitch	0.2025(H)x0.2025(V)mm

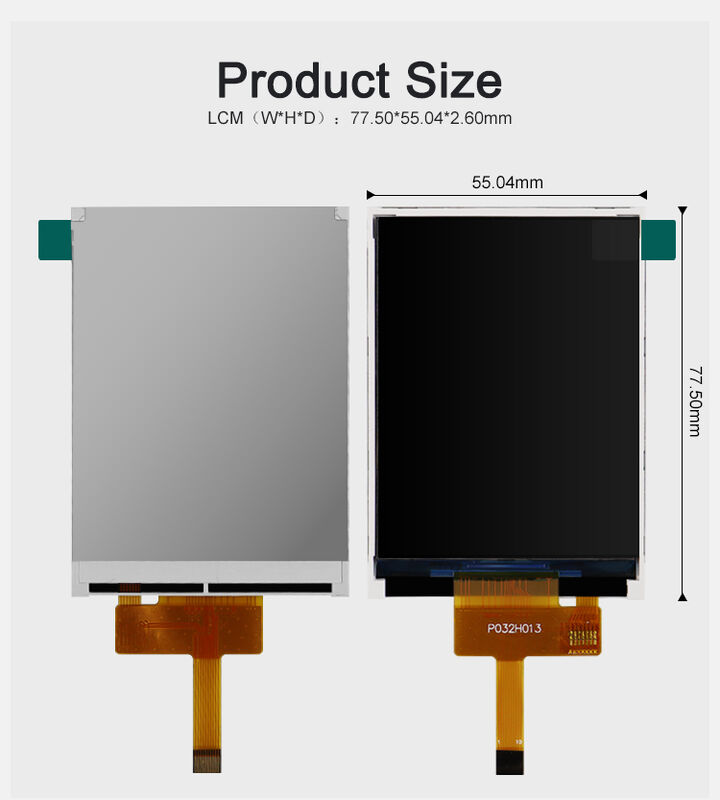

Outline Dimension	55.04x77.50x2.60mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally White
Viewing Direction(eye)	12 0'CLOCK
Display Color	262K
Luminance(cd/m²)	300 nit
Contrast Ratio	500:1
Interface	4Wire SPI
Back-light	LED Side-light type
Drive IC	ST7789V
Operation Temperature	-20~70 ℃
Storage Temperature	-30~80 ℃

Polcd 3.2 inch 240x320 LCD Module Display Spi interface TFT Panel ST7789V 3.2'' LCD Screen
