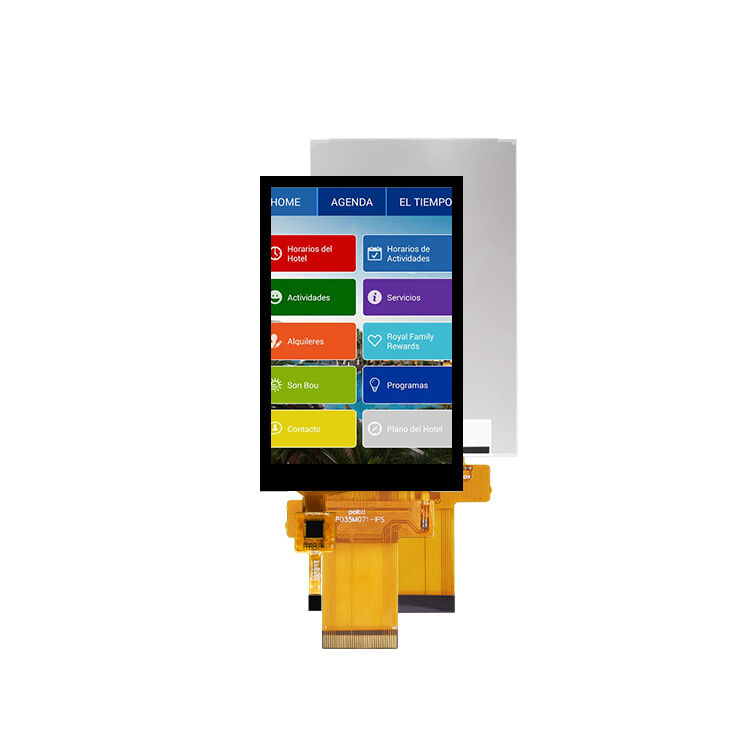

Polcd ILI9488 Drive 3.5 inch LCD Module High Brightness 300 nit IPS Wide View CTP RTP 320*480 TFT Display

Polcd ILI9488 Drive 3.5 inch LCD Module High Brightness 300 nit IPS Wide View CTP RTP 320*480 TFT Display

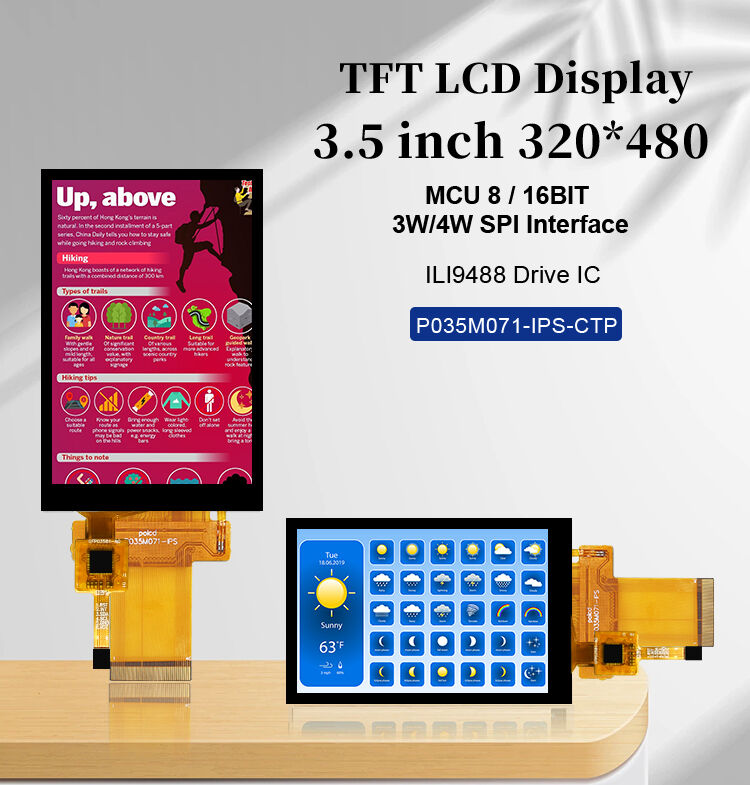

3.5 inch IPS TFT LCD module

ILI9488 drive LCD display

high brightness 300 nit TFT

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P035M071-IPS-CTP

Contact Us

Request A Quote
Polcd ILI9488 Drive 3.5 inch LCD Module High Brightness 300 nit IPS Wide View CTP RTP 320*480 TFT Display
Polcd ILI9488 Drive 3.5 inch LCD Module High Brightness 300 nit IPS Wide View CTP RTP 320*480 TFT Display Polcd ILI9488 Drive 3.5 inch LCD Module High Brightness 300 nit IPS Wide View CTP RTP 320*480 TFT Display Polcd ILI9488 Drive 3.5 inch LCD Module High Brightness 300 nit IPS Wide View CTP RTP 320*480 TFT Display
Product Details
Size:
3.5 Inch
Resolution:
320x480
Interface:
MCU 8/16BIT SPI 3/4 Wire
Brightness (cd/m²):
300 Nit
Viewing Direction(eye):
IPS All View Angle
Driver IC:
ILI9488
Outline Dimension:
54.66x84.71x3.40mm
Operation Temperature:
-20~70 ℃
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Delivery Time
1-7 working days
Payment Terms
T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,
Supply Ability
40,000 PCS per day
RELATED PRODUCTS
Good price Polcd ILI9488 Drive 3.5 inch LCD Module High Brightness 300 nit IPS Wide View CTP RTP 320*480 TFT Display online Video

Polcd ILI9488 Drive 3.5 inch LCD Module High Brightness 300 nit IPS Wide View CTP RTP 320*480 TFT Display

Get Best Price
Good price Polcd 3.2'' 3.2 inch 320x480 Vertical Type 350nits RGB SPI Interface ST7701S ic TFT LCD Display online Video

Polcd 3.2'' 3.2 inch 320x480 Vertical Type 350nits RGB SPI Interface ST7701S ic TFT LCD Display

Get Best Price
Good price Polcd 3.2 inch 240x320 LCD Module Display Spi interface TFT Panel ST7789V 3.2'' LCD Screen online Video

Polcd 3.2 inch 240x320 LCD Module Display Spi interface TFT Panel ST7789V 3.2'' LCD Screen

Get Best Price
Good price Polcd 2.8 inch LCD Module 240x320 SPI Interface 10pin Small Size Color Screen 2.8 TFT Display online Video

Polcd 2.8 inch LCD Module 240x320 SPI Interface 10pin Small Size Color Screen 2.8 TFT Display

Get Best Price
Contact Us
008613714394335
anna@polcd.com
86-755-21011746
Contact Now
Product Description

Description:

3.5 inch TFT LCD is a high-quality display screen that is commonly used in various electronic devices, including handheld devices, automotive displays, and medical equipment.

The 3.5 inch TFT LCD is a versatile and reliable display technology that offers high-quality display performance, low power consumption, and durability. Its wide range of applications and customization options make it an ideal choice for a variety of electronic devices.


Parameter:

Model P035M071-IPS-CTP
Screen Size 3.5 inch
Number of Pixel 320RGB(H)x480(V)
Display area 48.96(H)x73.44(V)mm
Pixel pitch 51(H)x153(V) um
Pins 40 pins
CTP IC FT6336U
Outline Dimension 54.66x84.71x3.40mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Display Color 262k
Luminance(cd/m2) 300 nit
Contrast Ratio 700:1
Interface MCU 8/16bit  3/4wire SPI
Back-light LED Side-light type
Drive IC ILI9488
Operation Temperature -20~70 ℃
Storage Temperature -30~80 ℃


Polcd ILI9488 Drive 3.5 inch LCD Module High Brightness 300 nit IPS Wide View CTP RTP 320*480 TFT Display
