Polcd 2.8 inch LCD Module 240x320 SPI Interface 10pin Small Size Color Screen 2.8 TFT Display

Polcd 2.8 inch LCD Module 240x320 SPI Interface 10pin Small Size Color Screen 2.8 TFT Display

2.8 inch TFT LCD module

240x320 SPI interface display

small size color screen module

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P028X101-10

Contact Us

Request A Quote
Polcd 2.8 inch LCD Module 240x320 SPI Interface 10pin Small Size Color Screen 2.8 TFT Display
Polcd 2.8 inch LCD Module 240x320 SPI Interface 10pin Small Size Color Screen 2.8 TFT Display Polcd 2.8 inch LCD Module 240x320 SPI Interface 10pin Small Size Color Screen 2.8 TFT Display Polcd 2.8 inch LCD Module 240x320 SPI Interface 10pin Small Size Color Screen 2.8 TFT Display Polcd 2.8 inch LCD Module 240x320 SPI Interface 10pin Small Size Color Screen 2.8 TFT Display
Product Details
Size:
2.8 Inch
Resolution:
240*320
Brightness:
270cd/m²
Interface:
4 Wire SPI
Driver Ic:
ST7789V
Operation Temperature:
-20~70 ℃
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Delivery Time
1-7 working days
Payment Terms
T/T,L/C,Credit card,PayPal,D/A,D/P
Supply Ability
40,000 PCS per day
RELATED PRODUCTS
Good price Polcd ILI9488 Drive 3.5 inch LCD Module High Brightness 300 nit IPS Wide View CTP RTP 320*480 TFT Display online Video

Polcd ILI9488 Drive 3.5 inch LCD Module High Brightness 300 nit IPS Wide View CTP RTP 320*480 TFT Display

Get Best Price
Good price Polcd 3.2'' 3.2 inch 320x480 Vertical Type 350nits RGB SPI Interface ST7701S ic TFT LCD Display online Video

Polcd 3.2'' 3.2 inch 320x480 Vertical Type 350nits RGB SPI Interface ST7701S ic TFT LCD Display

Get Best Price
Good price Polcd 3.2 inch 240x320 LCD Module Display Spi interface TFT Panel ST7789V 3.2'' LCD Screen online Video

Polcd 3.2 inch 240x320 LCD Module Display Spi interface TFT Panel ST7789V 3.2'' LCD Screen

Get Best Price
Good price Polcd 2.8 inch LCD Module 240x320 SPI Interface 10pin Small Size Color Screen 2.8 TFT Display online Video

Polcd 2.8 inch LCD Module 240x320 SPI Interface 10pin Small Size Color Screen 2.8 TFT Display

Get Best Price
Contact Us
008613714394335
anna@polcd.com
86-755-21011746
Contact Now
Product Description

Description:

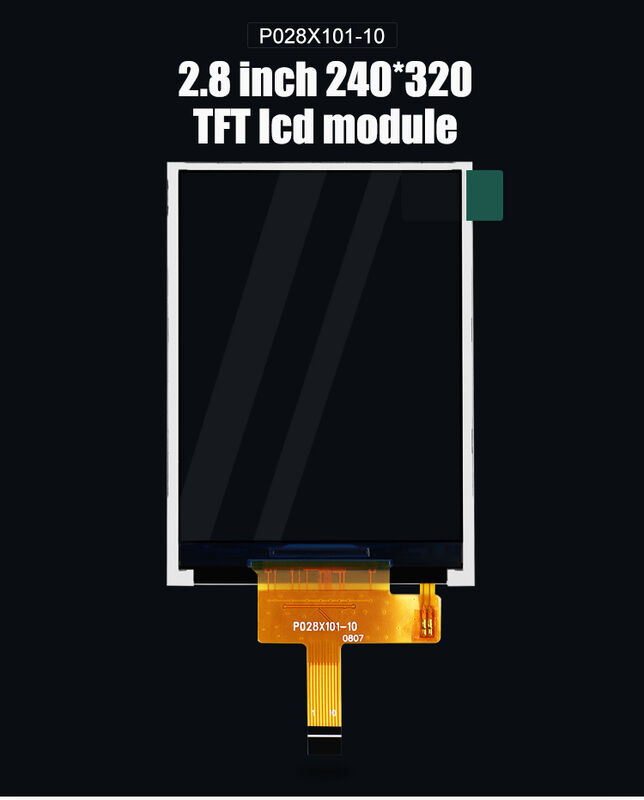

Featuring a 2.8-inch TFT LCD screen with a 12 o'clock viewing angle and an SPI interface, this display is both compact and versatile, making it easy to integrate into a wide range of projects, including handheld devices and embedded systems. Its high-quality graphics and sharp resolution are ideal for applications where visual clarity is crucial.



Parameter:

Model

P028X101-10

Screen Size

2.8 inch

Number of Pixel

240RGB(H)x320(V)

Pin

10 pin

Display area

43.20(H)x57.60(V)mm

Pixel pitch

0.06(H)x0.18(V)mm

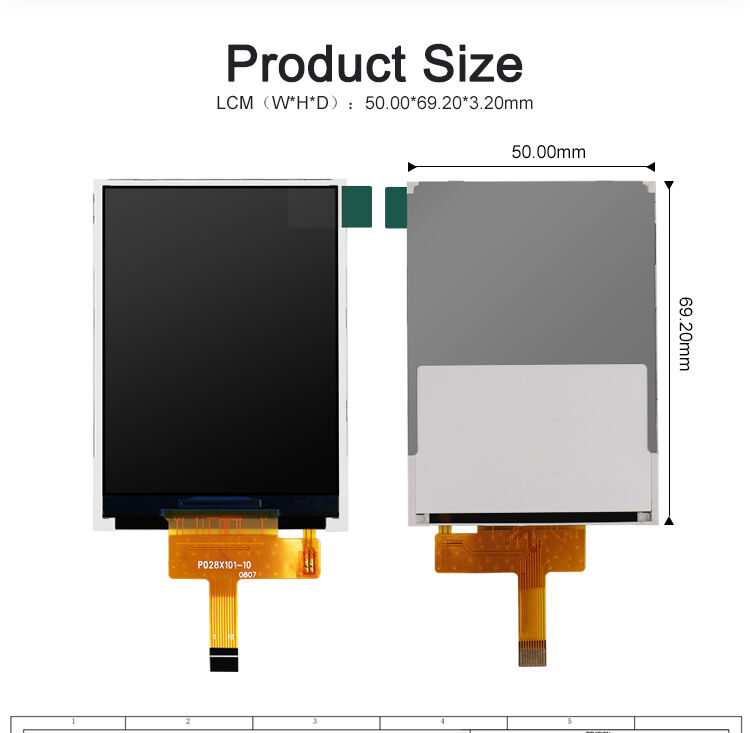

Outline Dimension

50.00x69.20x2.30mm

Pixel arrangement

RGB Vertical Stripe

Display mode

Normally White

Viewing Direction(eye)

12 0'CLOCK

Display Color

262K

Luminance(cd/m2)

270 nit

Contrast Ratio

500:1

Interface

4wire SPI

Back-light

LED Side-light type

Drive IC

ST7789V

Operation Temperature

-20~70 ℃

Storage Temperature

-30~80 ℃


Polcd 2.8 inch LCD Module 240x320 SPI Interface 10pin Small Size Color Screen 2.8 TFT Display

Polcd 2.8 inch LCD Module 240x320 SPI Interface 10pin Small Size Color Screen 2.8 TFT Display
