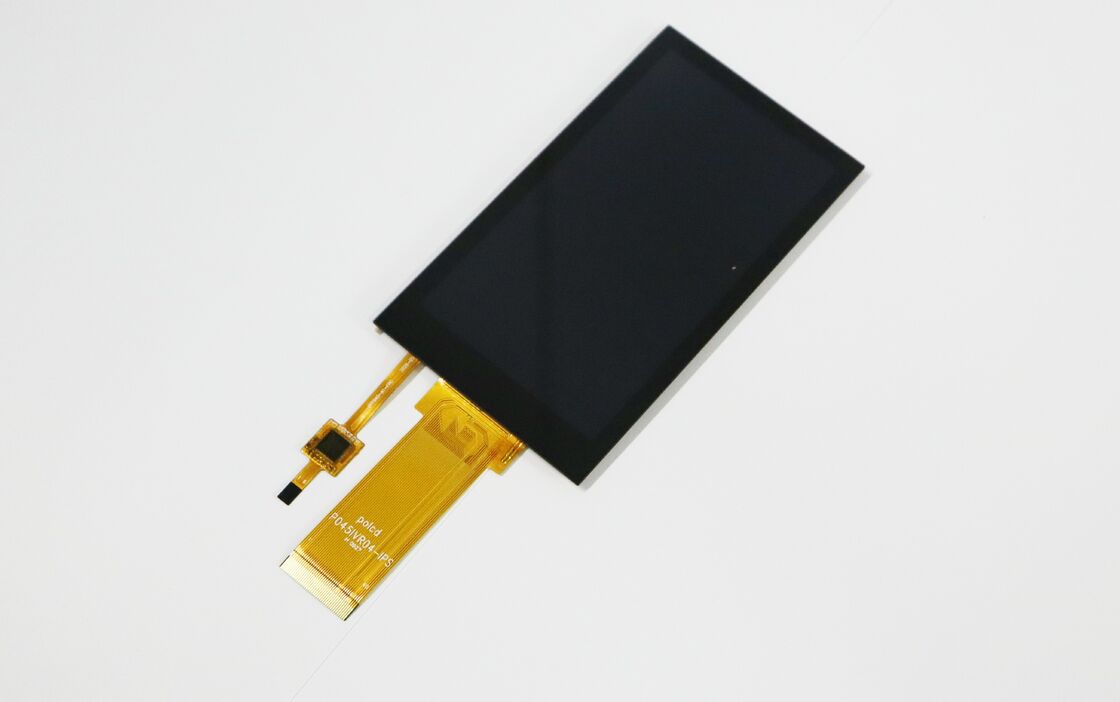

Name: Polcd Custom 4.5 Inch 480x854 LCD 24Bit RGB Interface Full Viewing Angle IPS LCD for Industrial Device
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P045IVR04-IPS-CTP-V2
Price: Negotiable USD
Availability: InStock

Home > products > TFT LCD Display >

Polcd Custom 4.5 Inch 480x854 LCD 24Bit RGB Interface Full Viewing Angle IPS LCD for Industrial Device

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P045IVR04-IPS-CTP-V2

Request A Quote

Polcd Custom 4.5 Inch 480x854 LCD 24Bit RGB Interface Full Viewing Angle IPS LCD for Industrial Device

Product Details

Resolution:

480x854

Interface:

RGB 24bit

LCM Driver Ic:

ST7701S

Brightness (cd/m²):

300 Nit

Viewing Angle:

IPS All View Angle

Display Area:

55.44(H)x98.64(V)mm

CTP IC:

GT911

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

1-7 working days

Payment Terms

T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,

Supply Ability

40,000 PCS per day

anna@polcd.com

86-755-21011746

Contact Now

Product Description

Parameter:

Model	P045IVR04-IPS-CTP-V2
Screen Size	4.5 inch
Number of Pixel	480RGB(H)x854(V)
Pin	40 pin
Display area	55.44(H)x98.64(V)mm
Pixel pitch	0.1155(H)x0.1155(V)mm
Outline Dimension	66x115x3.7±0.2mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262K
Luminance(cd/m²)	300 nit
Contrast Ratio	1200:1
Interface	RGB 24bit
Back-light	LED Side-light type
Drive IC	ST7701S
CTP IC	GT911
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃
