Name: Polcd 1024X600 10.1 Inch Capacitive Touch Screen EK79001 TFT LCD Display
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P10150UX-V01
Availability: InStock

Home > Products > TFT LCD Display >

Polcd 1024X600 10.1 Inch Capacitive Touch Screen EK79001 TFT LCD Display

1024X600 10.1 Inch Capacitive Touch Screen

10.1 tft lcd monitor 1024X600

EK79001 TFT LCD Display

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P10150UX-V01

Request A Quote

Product Details

P/N:

T10150UX-V01

Size (inch):

10.1

Resolution:

1024*600

Interface:

RGB 24bit

Driver Ic:

EK79001

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

1-7 working days

Payment Terms

T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram

Supply Ability

40,000 PCS per day

Polcd 1.69 Inch 240x280 TFT Display Module Square LCD Touch Screen For Smart Watch

Get Best Price

Video

Polcd Mini Tft Lcd Module Display 3.97 Inch 4 Inch 480*480

Get Best Price

Video

Polcd 4 Inch Lcd 480*800 RGB Interface IPS Viewing Display Small Size Lcd Screen For Industrial Field

Get Best Price

Video

SPI ILI9342C Serial Port Dots Matrix Touch Screen TFT Display 2.31 Inch IPS LCD 320x240

Get Best Price

00-86-13714394335

anna@polcd.com

86-755-21011746

Contact Now

Product Description

Description:

A 10.1-inch TFT LCD is a high-quality display screen commonly used in tablets, laptops, and monitors. It offers vibrant colors and a clear viewing experience with a compact size that is ideal for portable devices.

Parameter:

Model	P10150UX-V01
Screen Size	10.1 inch
Number of Pixel	1024RGB(H)x600(V)
Pin	50 pin
Display area	222.72(H)x125.28(V) mm
Pixel pitch	0.0641(H)x0.1784(V) mm

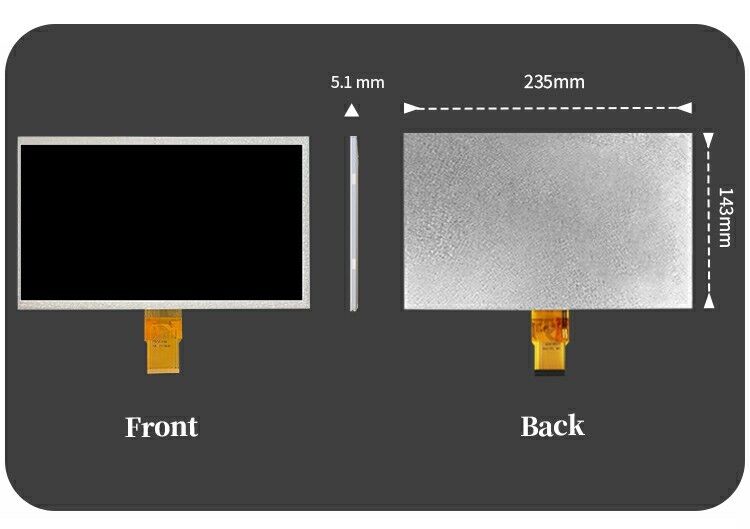

Outline Dimension	235.00x143.00x6.55 mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally White
Viewing Direction(eye)	6 o'clock
Display Color	262k
Luminance(cd/m2)	260 nit
Contrast Ratio	500:1
Interface	RGB 24bit
Back-light	LED Side-light type
Drive IC	EK79001
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃
