Home > Products > TFT LCD Display >
Polcd 4 Inch RGB 24bit Interface High Brightness 4 Inch TFT LCD Display with 480*800 ST7701S

Polcd 4 Inch RGB 24bit Interface High Brightness 4 Inch TFT LCD Display with 480*800 ST7701S

4 inch TFT LCD display

RGB 24bit interface LCD

high brightness ST7701S display

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P040HR015-IPS

Contact Us

Request A Quote
Polcd 4 Inch RGB 24bit Interface High Brightness 4 Inch TFT LCD Display with 480*800 ST7701S
Polcd 4 Inch RGB 24bit Interface High Brightness 4 Inch TFT LCD Display with 480*800 ST7701S Polcd 4 Inch RGB 24bit Interface High Brightness 4 Inch TFT LCD Display with 480*800 ST7701S Polcd 4 Inch RGB 24bit Interface High Brightness 4 Inch TFT LCD Display with 480*800 ST7701S Polcd 4 Inch RGB 24bit Interface High Brightness 4 Inch TFT LCD Display with 480*800 ST7701S
Product Details
Size (inch):
4 Inch 480x800
Brightness (cd/m²):
350 Nit
Interface:
RGB 24bit
Driver IC:
ST7701S
PIN:
40 Pin
Viewing Direction(eye):
IPS Full View Angle
Contrast Ratio:
1200:1
Display Area:
51.84(H)x86.4(V)mm
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Delivery Time
1-7 working days
Payment Terms
T/T,L/C,Credit card,PayPal,MoneyGram,Western Union,D/P,D/A
Supply Ability
40,000 PCS per day
RELATED PRODUCTS
Good price Polcd 2.8 Inch TFT 240*320 Resolution ST7789P3-G6 Ic MCU Interface IPS LCD Display Module online Video

Polcd 2.8 Inch TFT 240*320 Resolution ST7789P3-G6 Ic MCU Interface IPS LCD Display Module

Get Best Price
Good price Polcd 4 Inch RGB 24bit Interface High Brightness 4 Inch TFT LCD Display with 480*800 ST7701S online Video

Polcd 4 Inch RGB 24bit Interface High Brightness 4 Inch TFT LCD Display with 480*800 ST7701S

Get Best Price
Good price Polcd 1.69 Inch 240x280 TFT Display Module Square LCD Touch Screen For Smart Watch online Video

Polcd 1.69 Inch 240x280 TFT Display Module Square LCD Touch Screen For Smart Watch

Get Best Price
Good price Polcd 2.8 Inch 240*320 Resolution TFT LCD with ST7789P IC 24-Pin Interface 2.8 Video

Polcd 2.8 Inch 240*320 Resolution TFT LCD with ST7789P IC 24-Pin Interface 2.8" Display

Get Best Price
Contact Us
00-86-13714394335
anna@polcd.com
86-755-21011746
Contact Now
Product Description

Parameter:

Model P040HR015-IPS
Screen Size 4 inch
Number of Pixel 480RGB(H)x800(V)
Pin 40 pin
Display area 51.84(H)x86.4(V)mm
Pixel pitch 0.108(H)x0.108(V)mm

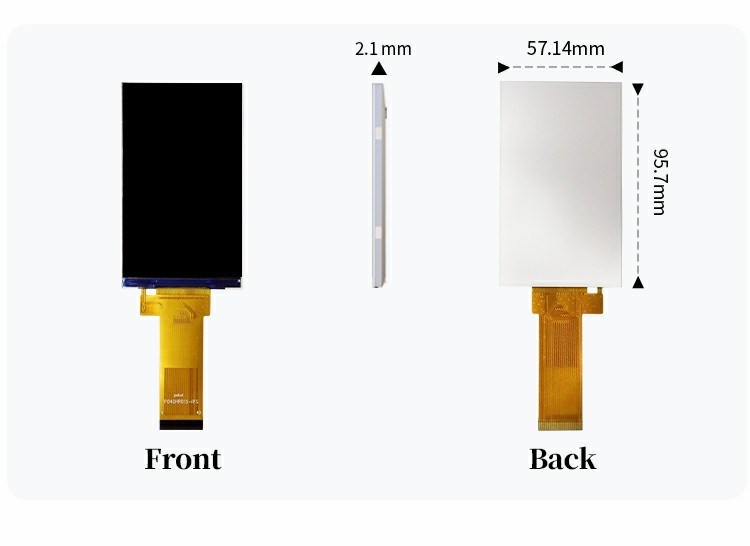

Outline Dimension 57.14x95.7x2.1mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Display Color 262K
Luminance(cd/m2) 350 nit
Contrast Ratio 1200:1
Interface RGB 24bit
Back-light LED Side-light type
LCM IC ST7701S
Operation Temperature -20~70℃
Storage Temperature -30~80℃

Polcd 4 Inch RGB 24bit Interface High Brightness 4 Inch TFT LCD Display with 480*800 ST7701S 0
