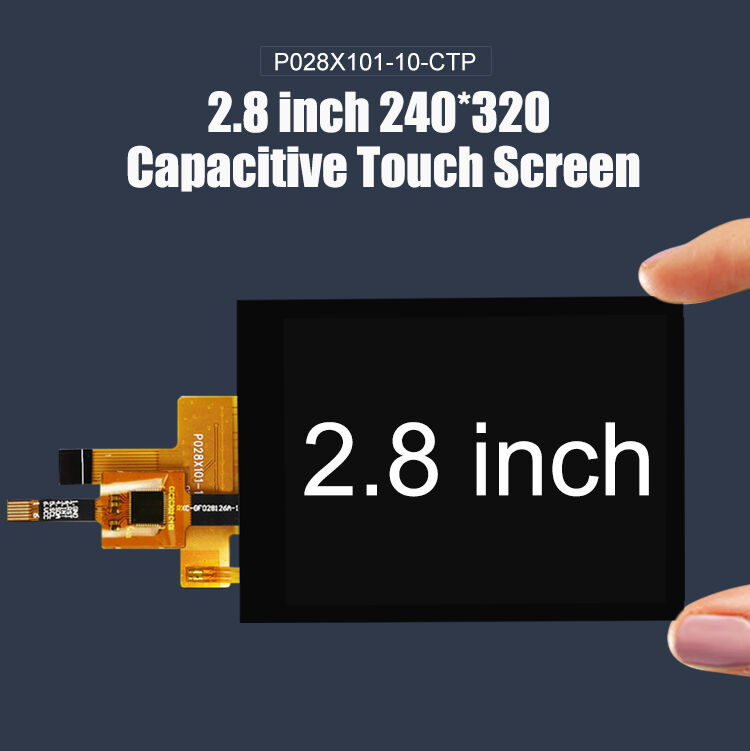

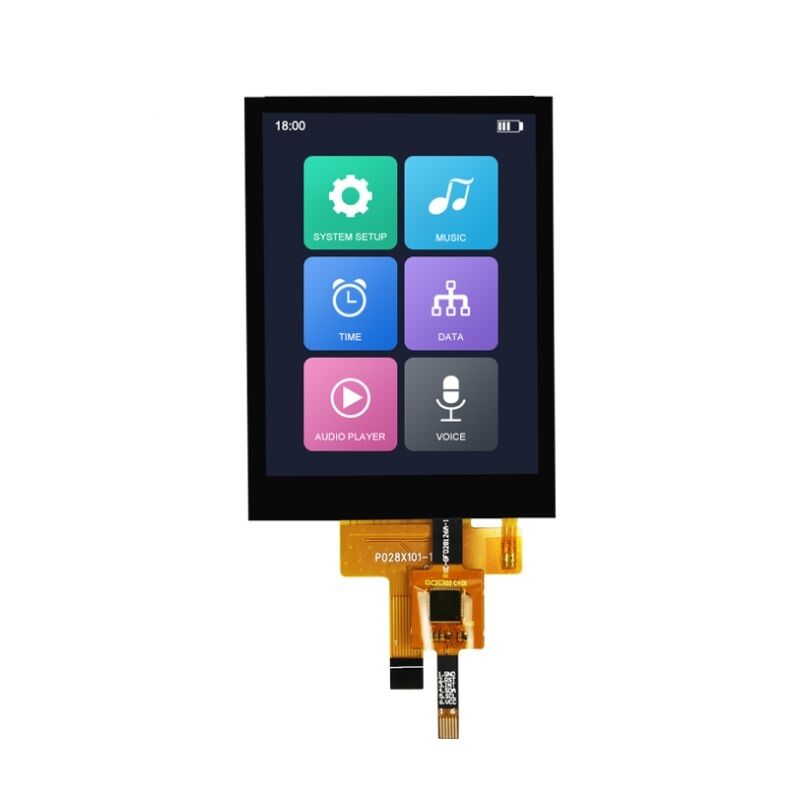

Name: Polcd 2.8 Inch TFT Display 240x320 ST7789V 10pin SPI interface Capacitive Touch Screen 2.8" LCD Module
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P028X101-10-CTP
Availability: InStock

Home > Products > TFT Touch Screen >

Polcd 2.8 Inch TFT Display 240x320 ST7789V 10pin SPI interface Capacitive Touch Screen 2.8" LCD Module

2.8 inch TFT LCD display

ST7789V SPI touch screen

capacitive touch screen module

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P028X101-10-CTP

Request A Quote

Product Details

Size:

2.8 Inch

Resolution:

240x320

Brightness:

300 Cd/m²

Interface:

4 Wire SPI

Driver Ic:

ST7789V

PIN:

10 Pin

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

1-7 working days

Payment Terms

T/T,L/C,Credit card,PayPal,D/A,D/P

Supply Ability

40,000 PCS per day

Polcd 12 0'CLOCK 240x320 2.8 Inch Ili9341v 16 Bit TFT Touch Screen

Get Best Price

Video

Polcd 4 Wire SPI ST7789V 2.8 Inch Ips Screen RoHS TFT Touch Screen For Home

Get Best Price

Video

Polcd 2.8 inch 240*320 QVGA MCU 16bit TFT LCD Screen Module 37Pin LCD Display with Touch Panel

Get Best Price

Video

Pocld 2.8" 240*320 TFT LCD Module with MCU Interface Resistive Touch Screen 2.8 inch LCD Display

Get Best Price

008613714394335

anna@polcd.com

86-755-21011746

Contact Now

Product Description

Description:

The 2.8 inch TFT LCD with capacitive touch is a versatile display technology that offers high resolution, accurate color representation, low power consumption, and accurate touch input. It is commonly used in various applications where a small, high-quality display with touch input is required, such as handheld devices, industrial equipment, and automotive displays.

Parameter:

Model	P028X101-10-CTP
Screen Size	2.8 inch
Number of Pixel	240RGB(H)x320(V)
Display area	43.20(H)x57.60(V)mm
Pixel pitch	0.06(H)x0.18(V)mm
Pins	10 Pin
Outline Dimension	50.00x69.20x3.20mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally White
Viewing Direction(eye)	12 0'CLOCK
Display Color	262K
Luminance(cd/m²)	300 nit
Contrast Ratio	500:1
Interface	4wire SPI
Back-light	LED Side-light type
Drive IC	ST7789V
Operation Temperature	-20~70 ℃
Storage Temperature	-30~80 ℃
