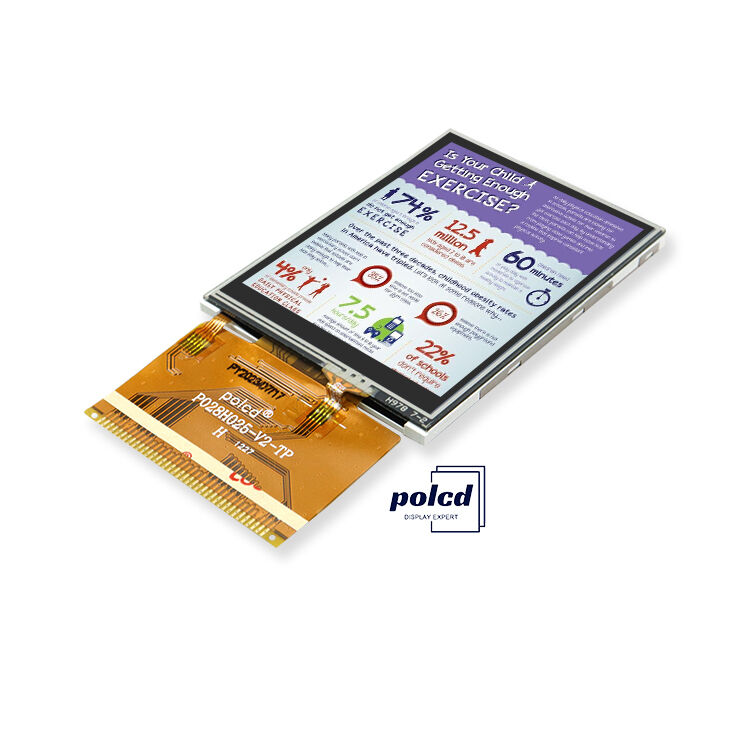

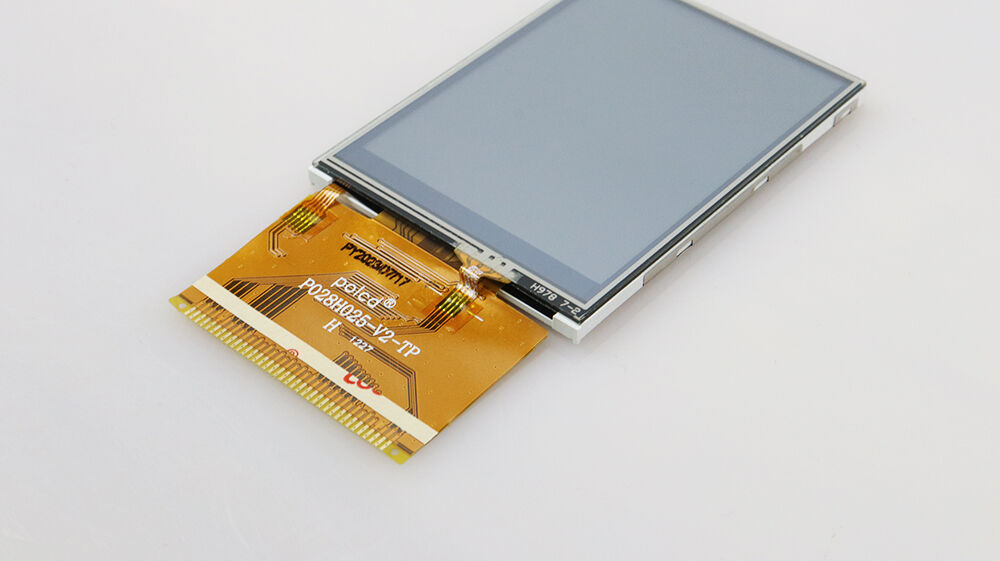

Polcd 2.8 inch 240*320 QVGA MCU 16bit TFT LCD Screen Module 37Pin LCD Display with Touch Panel

Polcd 2.8 inch 240*320 QVGA MCU 16bit TFT LCD Screen Module 37Pin LCD Display with Touch Panel

2.8 inch TFT LCD screen module

QVGA MCU 16bit LCD display

37Pin touch panel TFT screen

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P028H025-V2-RTP

Contact Us

Request A Quote
Product Details
Size:
2.8 Inch
Resolution:
240*320
Brightness (cd/m²):
300
Driver Ic:
ILI9341V
Viewing Direction(eye):
12 0'CLOCK
PIN:
37 Pin
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Delivery Time
1-7 working days
Payment Terms
T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union
Supply Ability
40,000 PCS per day
Product Description

Features:

2.8 inch TFT LCD with RTP are a popular display solution for a wide range of handheld devices that require a compact and low-power display with touch input capabilities. Their versatility and compatibility make them a popular choice among manufacturers of handheld devices in various industries.


Parameter:

Model

P028H025-V2-RTP

Screen Size

2.8 inch

Number of Pixel

240RGB(H)x320(V)

Display area

43.20(H)x57.60(V)mm

Pixel pitch

0.06(H)x0.18(V)mm

Pin

37 pin

Outline Dimension

50.00x69.20x3.50mm

Pixel arrangement

RGB Vertical Stripe

Display mode

Normally White

Viewing Direction(eye)

12 0'CLOCK

Display Color

262K

Luminance(cd/m2)

260 nit

Contrast Ratio

500:1

Interface

MCU 16bit

Back-light

LED Side-light type

Drive IC

ILI9341V

Operation Temperature

-20~70

Storage Temperature

-30~80


Application:

Portable Gaming Consoles: Devices such as the Nintendo 3DS and Sony PlayStation Vita use 2.8 inch TFT LCDs with RTP to provide a high-quality gaming experience with touch input capabilities.

Handheld GPS Navigation Systems: Devices such as the Garmin eTrex 20x and Magellan eXplorist 310 use 2.8 inch TFT LCDs with RTP to provide a clear and detailed map display with touch input capabilities.

Portable Media Players: Devices such as the Cowon Plenue D and FiiO X3 Mark III use 2.8 inch TFT LCDs with RTP to provide a high-quality display for music and video playback with touch input capabilities.

Handheld Instrumentation: Devices such as the Fluke 87V and Keysight U1253B use 2.8 inch TFT LCDs with RTP to provide a compact and portable display for measuring and testing equipment with touch input capabilities.

Medical Devices: Devices such as the Accu-Chek Active Blood Glucose Monitor and Omron HEM-7120 Blood Pressure Monitor use 2.8 inch TFT LCDs with RTP to provide a clear and accurate display of patient data with touch input capabilities.
