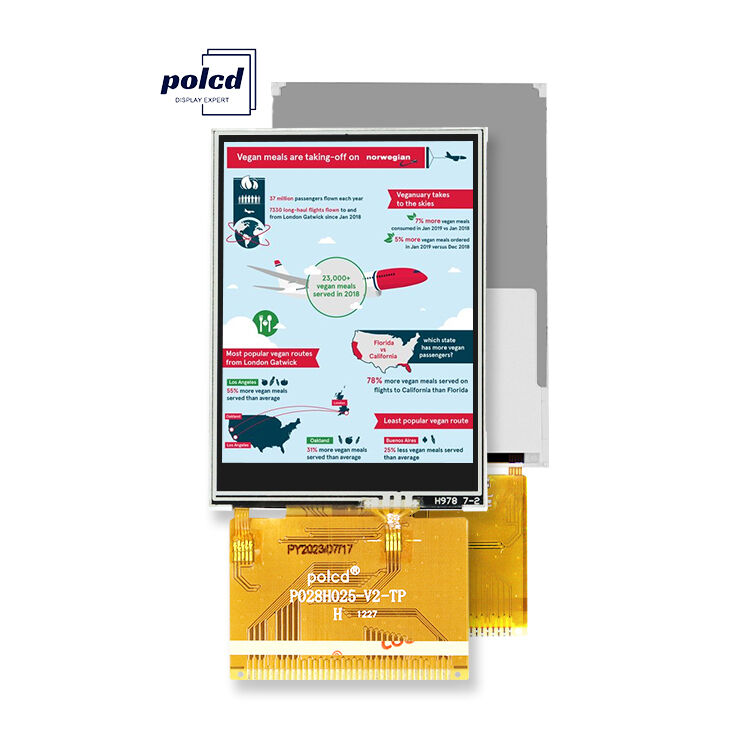

Pocld 2.8" 240*320 TFT LCD Module with MCU Interface Resistive Touch Screen 2.8 inch LCD Display

Pocld 2.8" 240*320 TFT LCD Module with MCU Interface Resistive Touch Screen 2.8 inch LCD Display

2.8 inch TFT LCD module

240*320 resistive touch screen

MCU interface LCD display

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P028H025-V2-RTP

Contact Us

Request A Quote
Product Details
Size:
2.8 Inch
Resolution:
240*320
Brightness (cd/m²):
300
Driver Ic:
ILI9341V
Viewing Direction(eye):
12 0'CLOCK
PIN:
37 Pin
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Delivery Time
1-7 working days
Payment Terms
T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union
Supply Ability
40,000 PCS per day
Product Description

Parameter:

Model

P028H025-V2-RTP

Screen Size

2.8 inch

Number of Pixel

240RGB(H)x320(V)

Display area

43.20(H)x57.60(V)mm

Pixel pitch

0.06(H)x0.18(V)mm

Pin

37 pin

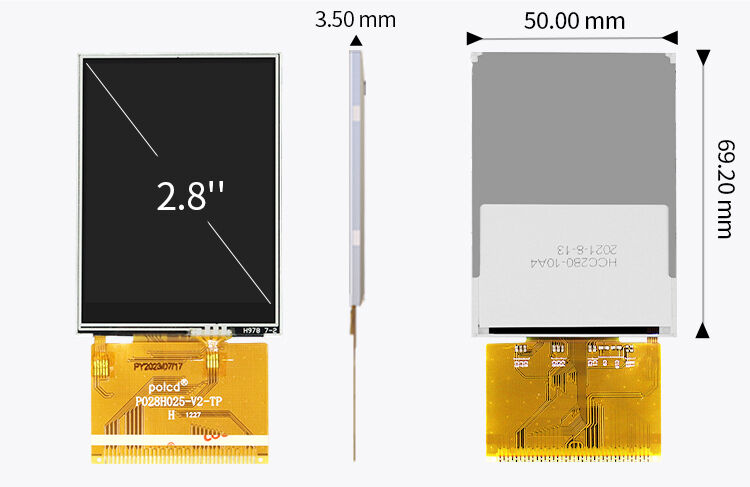

Outline Dimension

50.00x69.20x3.50mm

Pixel arrangement

RGB Vertical Stripe

Display mode

Normally White

Viewing Direction(eye)

12 0'CLOCK

Display Color

262K

Luminance(cd/m2)

260 nit

Contrast Ratio

500:1

Interface

MCU 16bit

Back-light

LED Side-light type

Drive IC

ILI9341V

Operation Temperature

-20~70

Storage Temperature

-30~80



Hot selling P/N Size (inch) Resolution Interface
N096-1608TBBIG11-H13 0.96 80*160 4 Line SPI
P114H002 1.14 135*240 4 Wire SPI
N133-2424TCBIG01-H12 1.33 240*240 4 Wire SPI
P169H002-CTP 1.69 240*240 4 Line SPI
P177C011 1.77 800*480 RGB 24bit
P020H017-IPS 2 240*320 MCU 8BIT
HINK-E0213A189-A0 2.13 122*250 3 Line SPI 4 Line SPI
P022H002 2.2 240*320 4 Line SPI
P023H005-V2 2.31 320*240 8080 MCU 16bit
EO-DIS-TFT24V03 2.4 240*320 8080 MCU 8bits
P027-40-V2 2.7 960*240 RGB 8bit
P028H042 2.8 240*320 MCU 8/16bit SPI3/4-wire
P032010A 3.2 320*820 SPI+16BIT RGB
P035C013-CTP 3.5 320*480 8080 MCU 16bit
P035M048-IPS 3.5 320*480 18BIT RG
P043B018 4.3 800*480 RGB 24bit
P050B028-IPS-CTP 5 800*480 RGB 24bit
P055H018-IPS-V3 5.5 720*1280 MIPI
P070C012 7 800*480 RGB 24bit
T10150UX-V01 10.1 1024*600 RGB 24bit


Why choose US?

1. Factory Direct Sales

We can promise the quality ourselves and the price is absolutely advantage.

2. Professional Technical Support

Our technical team can solve the problems encountered in the use process for you.

3. Support OEM/ODM Customization

We can Personalized customization for customers

4. Professional Sales Team

Our sales team will provide you with one-to-one service and solve all your after-sales problems.

5. To Be Your Reliable Supplier and Agent in Shenzhen, China

We hope to be your agent in China. In addition to our products, we can help you purchase the products you need and handle the freight together, so as to save your time and transportation cost.



FAQ


Q: Can we customize product? What cost will be included?
A: The product can be customized. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.

Q: I want make sure some information before order, where should I find the files or datasheet?
A: The easiest way is contact our sales then we will provide any files if you need quickly.

Q: How you ship the goods?
A: Usually we will ship the sample by fast delivery. No matter how we will take the best shipping method you agree with. Shipping cost should pay by your side, please kindly know.

Q: How to control the quality of products?
A: Our company has a professional quality team, and all products are 100% inspected prior to ship.


Q: Where are your customers from?

A: To protect our customers private information, we can not list them and show. However we can tell you our customers are from Europe, America, Asia and Middle East. We have many long term customers all over the world. The most possbile reason is the good quality and nice price.
