Place of Origin:
Shenzhen, China
Brand Name:
Polcd
Certification:
RoHS, ISO9001
Model Number:
P028H026-TP
Contact Us
Video

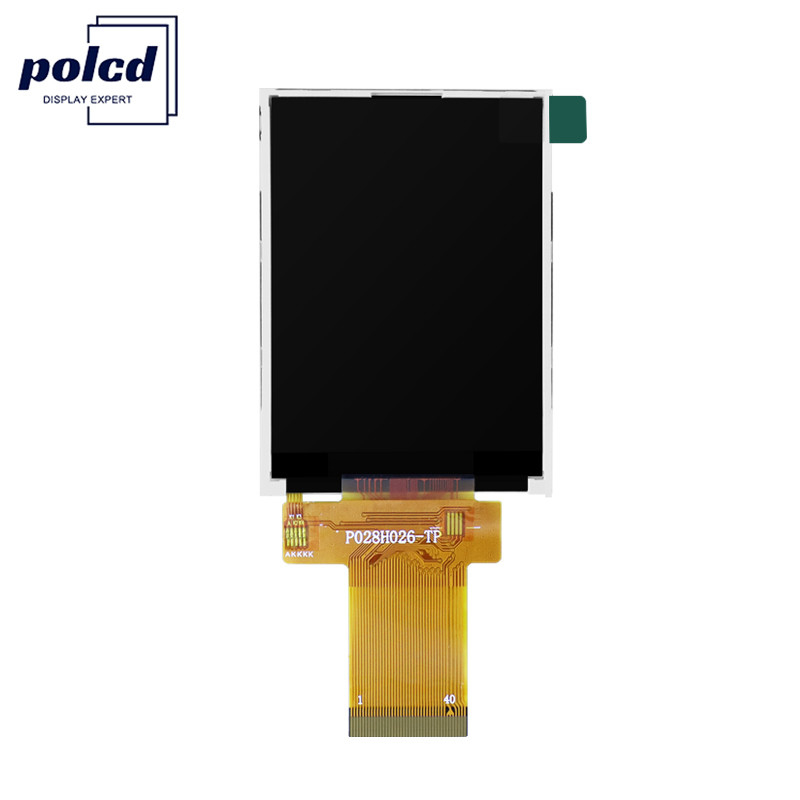

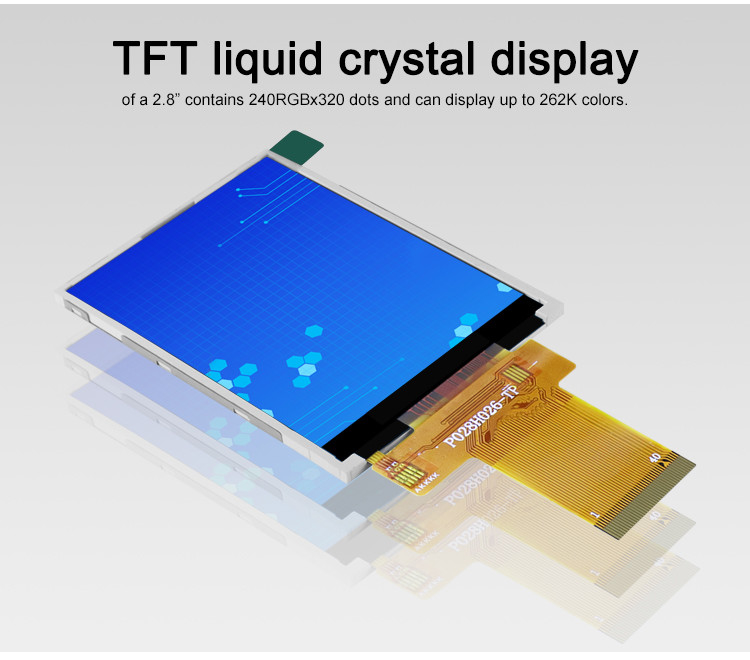

This 240x320 resolution LCD TFT is a standard display with 8080 MCU 16bit interface, offering 262K colors and a 600:1 contrast ratio. This Liquid Crystal Display has a built-in ILI9341V controller, FFC ZIF I/O connection, is RoHS compliant and does not come with a touch screen.
| P/N | P028H026-TP |
| Size(inch) | 2.8 |
| Resolution | 240*320 |
| Active Area(mm) | 43.20*57.60 |
| Pixel pitch(um) | 60*180 |

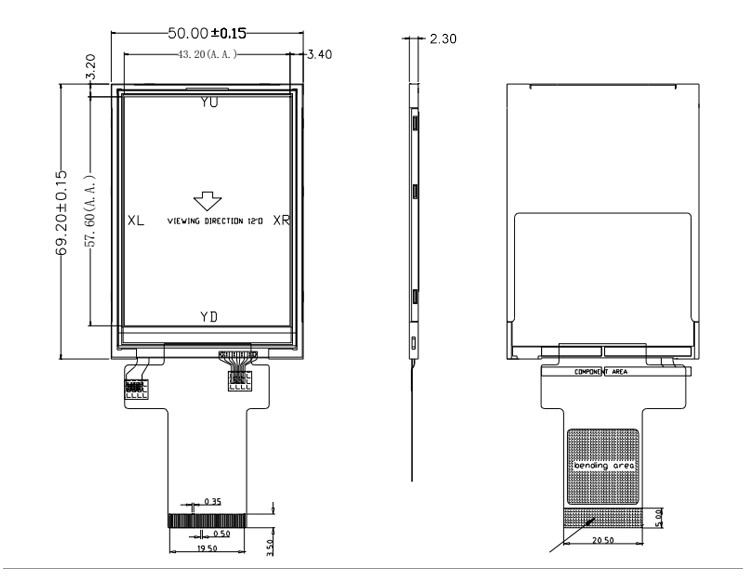

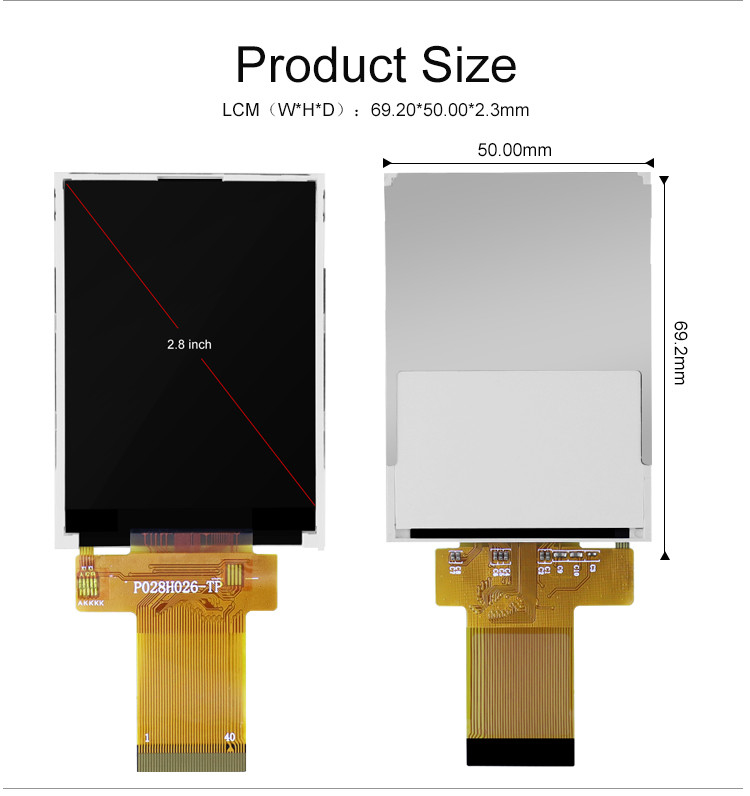

| Outline Dimension(mm) | 50.00*69.20*2.30 |
| Pixel arrangement | RGB Vertical Stripe |
| Display Mode | Normally Black |
| Viewing Angle | 12 0'CLOCK |
| Display colors | 262K |
| Brightness (cd/m²) | 350 |
| Contrast Ratio | 600:1 |
| Interface | 8080 MCU 16bit |
| Back-light | LED Side-light type |
| Driver Ic | ILI9341V |
| Operation Temperature(°C) | -20~70 |
| Storage Temperature(°C) | -30~80 |
| Response time(ms) | 35 |
| Pin Number | 40 |
Hot selling products list:
| Hot selling P/N | Size (inch) | Resolution | Interface |
| N096-1608TBBIG11-H13 | 0.96 | 80*160 | 4 Line SPI |
| P114H002 | 1.14 | 135*240 | 4 Wire SPI |
| N133-2424TCBIG01-H12 | 1.33 | 240*240 | 4 Wire SPI |
| P169H002-CTP | 1.69 | 240*240 | 4 Line SPI |
| P177C011 | 1.77 | 800*480 | RGB 24bit |
| P020H017-IPS | 2 | 240*320 | MCU 8BIT |
| HINK-E0213A189-A0 | 2.13 | 122*250 | 3 Line SPI 4 Line SPI |
| P022H002 | 2.2 | 240*320 | 4 Line SPI |
| P023H005-V2 | 2.31 | 320*240 | 8080 MCU 16bit |
| EO-DIS-TFT24V03 | 2.4 | 240*320 | 8080 MCU 8bits |
| P027-40-V2 | 2.7 | 960*240 | RGB 8bit |
| P028H042 | 2.8 | 240*320 | MCU 8/16bit SPI3/4-wire |
| P032010A | 3.2 | 320*820 | SPI+16BIT RGB |
| P035C013-CTP | 3.5 | 320*480 | 8080 MCU 16bit |
| P035M048-IPS | 3.5 | 320*480 | 18BIT RG |
| P043B018 | 4.3 | 800*480 | RGB 24bit |
| P050B028-IPS-CTP | 5 | 800*480 | RGB 24bit |
| P055H018-IPS-V3 | 5.5 | 720*1280 | MIPI |
| P070C012 | 7 | 800*480 | RGB 24bit |
| T10150UX-V01 | 10.1 | 1024*600 | RGB 24bit |
FAQ
Q: Can we customize product? What cost will be included?
A: The product can be customized. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.
Q: I want make sure some information before order, where should I find the files or datasheet?
A: The easiest way is contact our sales then we will provide any files if you need quickly.
Q: How you ship the goods?
A: Usually we will ship the sample by fast delivery. No matter how we will take the best shipping method you agree with. Shipping cost should pay by your side, please kindly know.
Q: Can I trust the quality? We want good quality first.
A: Our company has a professional Quality Control Department, and all products are 100% inspected prior to ship. We welcome all the customers from the wolrd visiting our factory for checking any time.
