Place of Origin:
Shenzhen, China
Brand Name:
Polcd
Certification:
RoHS, ISO9001
Model Number:
P043B018
Contact Us
This TFT LCD Module is a color-active matrix thin-film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. If your product requires a size 4.3 inch then our lcd is just what you need. Improve your product design by adding our 800 * 480 resolution product. QC department measured the luminance is 300 nits under normal operating.
| Model | P043B018 |
| Screen Size | 4.3 inch |
| Number of Pixel | 800RGB(H)x480(V) |
| Pin | 40 pin |
| Display area | 95.04(H)x53.86(V)mm |
| Pixel pitch | 118.8(H)x112.2(V)um |

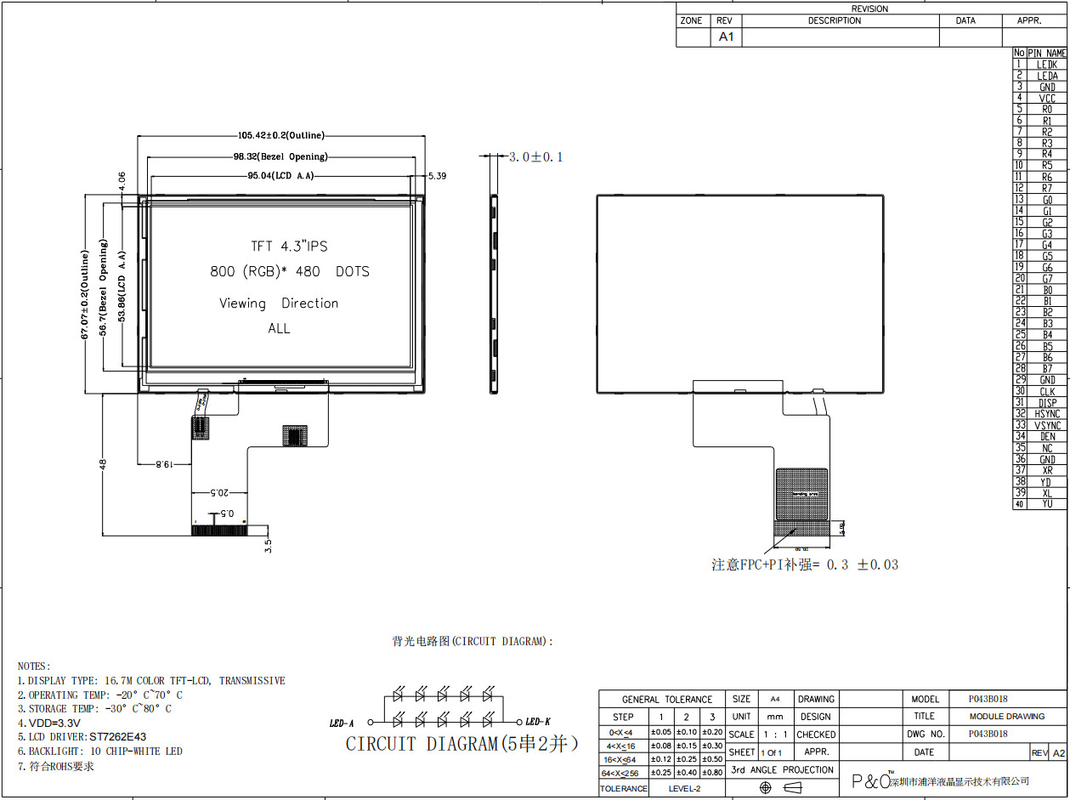

| Outline Dimension | 105.42x67.07x3.0mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Display Color | 262k |
| Luminance(cd/m2) | 300 nit |
| Contrast Ratio | 700:1 |
| Interface | RGB 24bit |
| Back-light | LED Side-light type |
| Drive IC | ST7262E43 |
| Operation Temperature | -20~70 ℃ |
| Storage Temperature | -30~80 ℃ |
| Warranty | 2 years |
This type of RGB 24bit can be suitable for a variety of scenarios. From the datasheet we can know the driver of the LCD is is ST7262E43. THE lowest operating temperature can reach -20°C (-4°F) and highest is 70°C (158°F).
Q: Is there a Touch Panel (Touch Screen) on the display?
A: We can offer you the RTP (Resistive Touch Panel) and CTP (Capacitive Touch Panel) if you need.
Q: I want make sure some information before order, where should I find the files or datasheet?
A: The easiest way is contact our sales then we will provide any files if you need quickly.
Q: How you ship the goods?
A: Usually we will ship the sample by fast delivery. No matter how we will take the best shipping method you agree with. Shipping cost should pay by your side, please kindly know.
Q: What if the goods get lost/ damaged on the way?
A: We strongly suggest to buy insurance in case of any problem. We will discuss these details with you before order.
