Polcd 3.5'' LCD Screen 320x480 ili9488 IPS View Angle 400 nit Brightness 3.5 inch TFT LCD Screen Module

Polcd 3.5'' LCD Screen 320x480 ili9488 IPS View Angle 400 nit Brightness 3.5 inch TFT LCD Screen Module

3.5 inch TFT LCD screen module

320x480 ili9488 IPS display

400 nit brightness LCD screen

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P035M075-IPS

Contact Us

Request A Quote
Product Details
Screen Size:
3.5 Inch
Number Of Pixel:
320RGB(H)x480(V)
Display Area:
48.96(H)x73.44(V)
Brightness (cd/m²):
400
Interface:
4Line SPI
Driver Ic:
ILI9488
PIN:
14 Pin
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Delivery Time
1-7 working days
Payment Terms
T/T,L/C,Credit card,PayPal,D/P,D/A
Supply Ability
40,000 PCS per day
Product Description

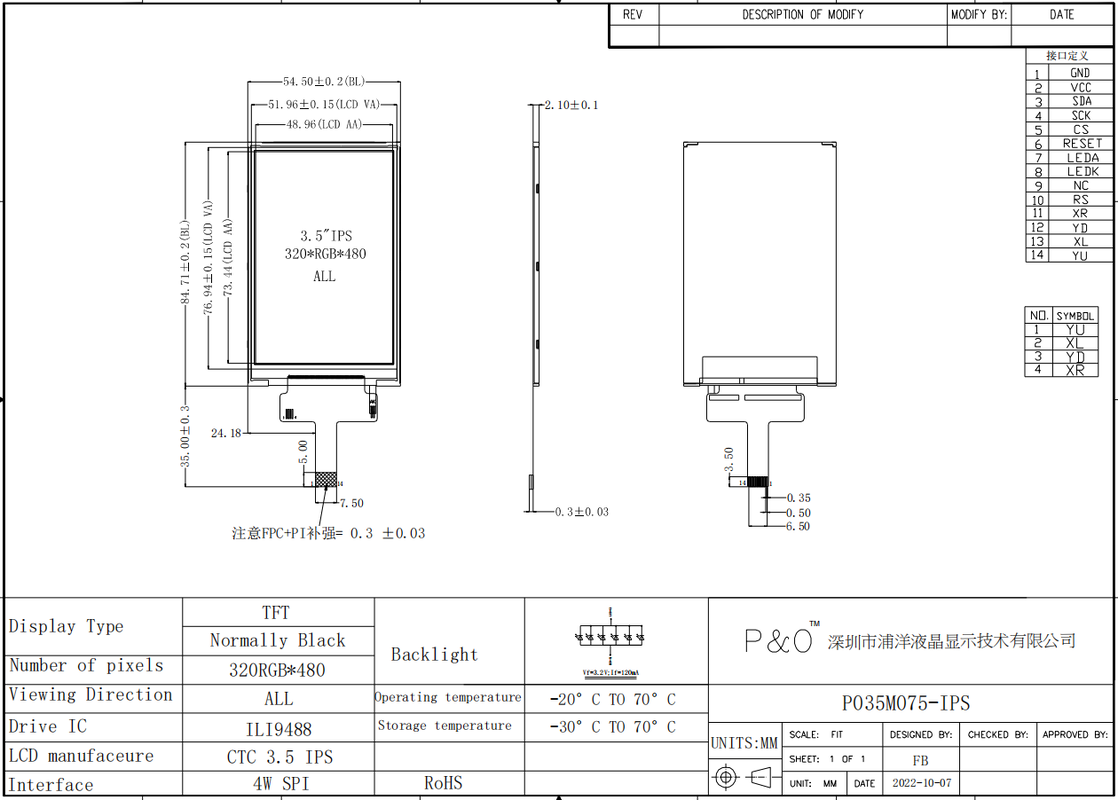

Parameter:

Model No.

P035M075-IPS

Screen Size

3.5 inch

Number of Pixel

320RGB(H)x480(V)

Pin

14 pin

Display area

48.96(H)x73.44(V)mm

Pixel pitch

0.153(H)x0.153(V)mm

Outline Dimension

54.50x84.71x2.10mm

Pixel arrangement

RGB Vertical Stripe

Display mode

Normally Black

Viewing Direction(eye)

ALL

Display Color

262K

Luminance(cd/m2)

400 nit

Contrast Ratio

1000:1

Interface

4Line SPI

Back-light

LED Side-light type

Drive IC

ILI9488

Operation Temperature

-20~70 ℃

Storage Temperature

-30~80 ℃



Advantages in the field of security and surveillance

Using a 3.5-inch TFT LCD display with full viewing angle and SPI interface in the field of security and surveillance provides the following advantages:

1) High resolution and color accuracy: The display delivers high-resolution and accurate color reproduction, providing clear and detailed visuals.

2) Wide viewing angles: The full viewing angle design ensures that the images and videos can be viewed from different angles, making it an ideal choice for security and surveillance applications.

3) Fast response: The SPI interface provides fast and efficient data transfer, enabling real-time transmission of monitoring videos and images.

4) Reliable performance: The display has reliable performance and can operate stably under different environmental conditions.
