Polcd 3.5 Inch TFT LCD Screen 320x480 RGB Transmissive IPS Viewing Angle

Polcd 3.5 Inch TFT LCD Screen 320x480 RGB Transmissive IPS Viewing Angle

3.5 Inch Small TFT Display

RGB Transmissive TFT LCD Screen

320x480 Small TFT Display

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P035M075-IPS

Contact Us

Request A Quote
Product Details
Number Of Pixel:
320RGB(H)x480(V)
Screen Size:
3.5 Inch
Display Area:
48.96(H)x73.44(V)
Brightness (cd/m²):
400
Interface:
4Line SPI
Driver Ic:
ILI9488
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
20 cm * 30 cm * 40 cm
Delivery Time
5-8 working days
Payment Terms
T/T, L/C, Credit card, PayPal
Supply Ability
500,000 piece per week
Product Description



Item Specification Unit
Screen Size 3.5 inch

Diagonal

Number of Pixel 320RGB(H)x480(V) Pixels
Display area 48.96(H)x73.44(V) mm
Pixel pitch 0.153(H)x0.153(V) mm
Outline Dimension 54.48x84.71x2.20 mm
Pixel arrangement RGB Vertical Stripe --
Display mode Normally White --
Viewing Direction(eye) 12 0'CLOCK --
Gray inversion direction --
Display Color 262K --
Luminance(cd/m2) 400 nit
Contrast Ratio 500:1 --
Surface treatment -- --
Interface 4Line SPI
Back-light LED Side-light type --
Drive IC ILI9488
Operation Temperature -20~70
Storage Temperature -30~80
Weight -- g

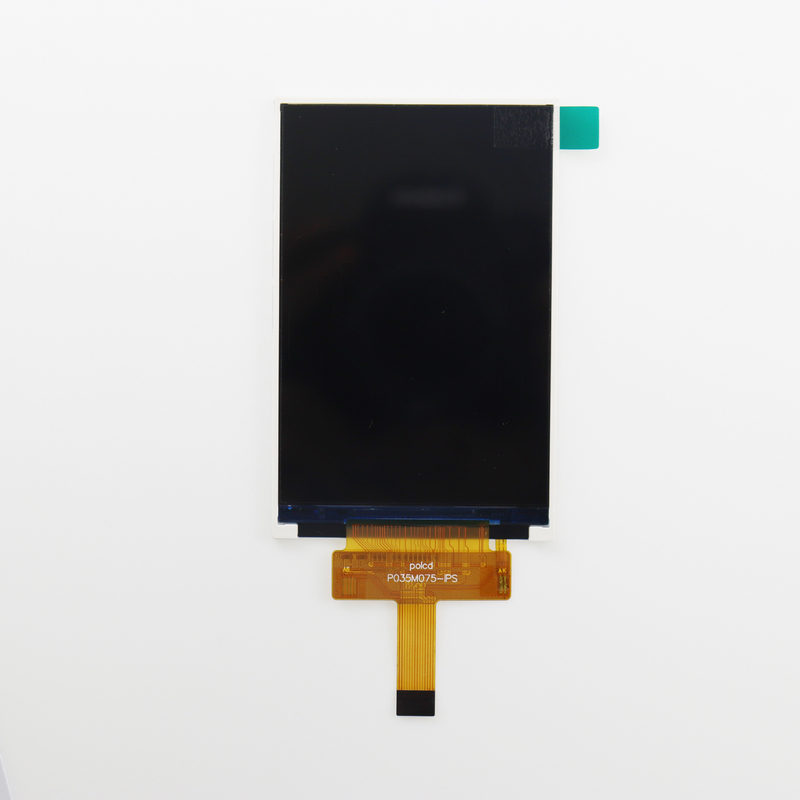

Polcd 3.5 Inch TFT LCD Screen 320x480 RGB Transmissive IPS Viewing Angle 0



Polcd 3.5 Inch TFT LCD Screen 320x480 RGB Transmissive IPS Viewing Angle 1
