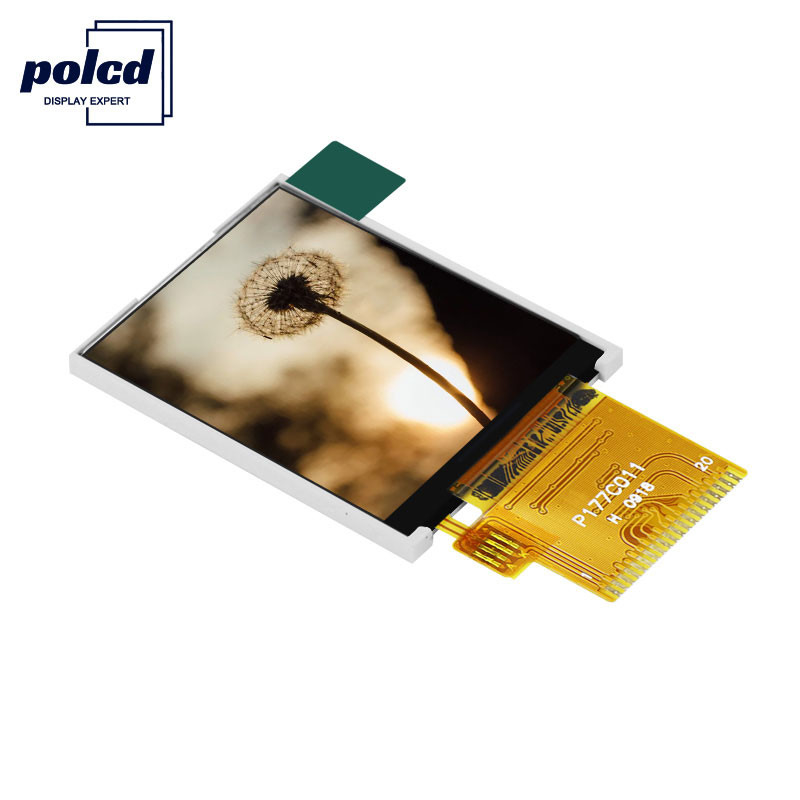

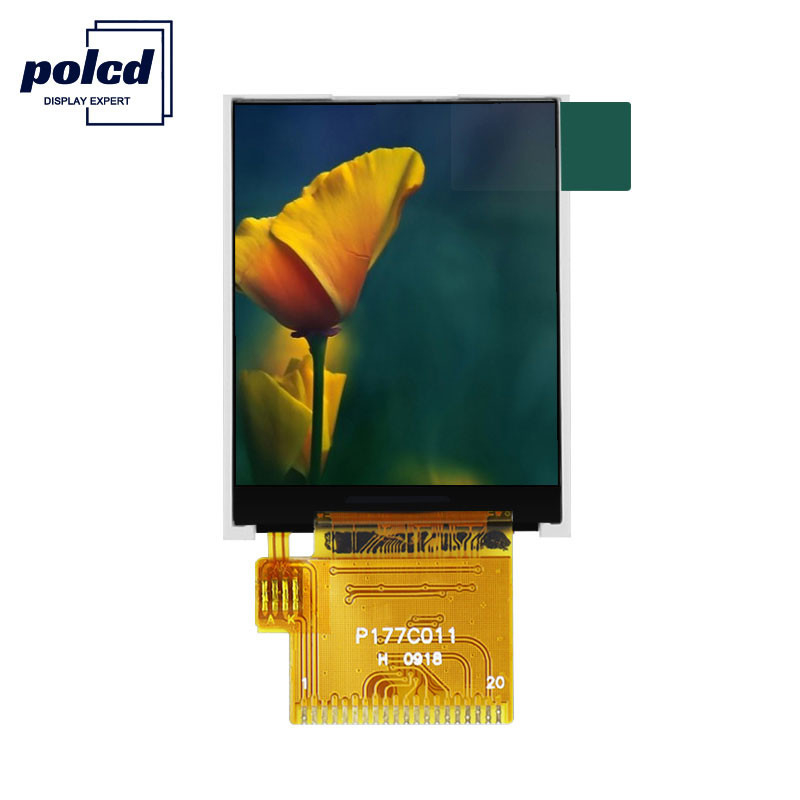

Polcd ST7262 1.77 Inch Display 128*160 Small TFT Display 40 Pin

Polcd ST7262 1.77 Inch Display 128*160 Small TFT Display 40 Pin

ST7262 1.77 Inch Display

1.77 Inch Display 800x480

800x480 Small TFT Display 40 Pin

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P177C011

Contact Us

Request A Quote
Product Details
P/N:
P177C011
Size (inch):
1.77
Resolution:
128*160
Brightness (cd/m²):
300
Interface:
RGB 24bit
Driver Ic:
ST7262
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
20 cm * 30 cm * 40 cm
Delivery Time
5-8 working days
Payment Terms
T/T, L/C, Credit card, PayPal
Supply Ability
500,000 piece per week
Product Description

What can we expect from this one? Before this question it is better to know some information about this LCD Touch Panel. If your product requires a size 1.77 inch then our lcd is just what you need. The TFT LCD offers a physical resolution of 800 * 480, clear enough for most scenes to be used. The normal brightness is 300 nits under the test of laboratory.



P/N P177C011
Size(inch) 1.77
Resolution 128*160
Active Area(mm) 28.03*35.04
Pixel pitch(um) 73*219
Outline Dimension(mm) 34.00*43.70*2.5
Pixel arrangement RGB Vertical Stripe
Display Mode Normally Black
Viewing Angle ALL
Display colors 262K
Brightness
(cd/m²)
300
Contrast Ratio 300:1
Interface RGB 24bit
Back-light LED Side-light type
Driver Ic ST7262
Operation Temperature(°C) -20~70
Storage Temperature(°C) -30~80
Response time(ms) 30
Pin Number 40

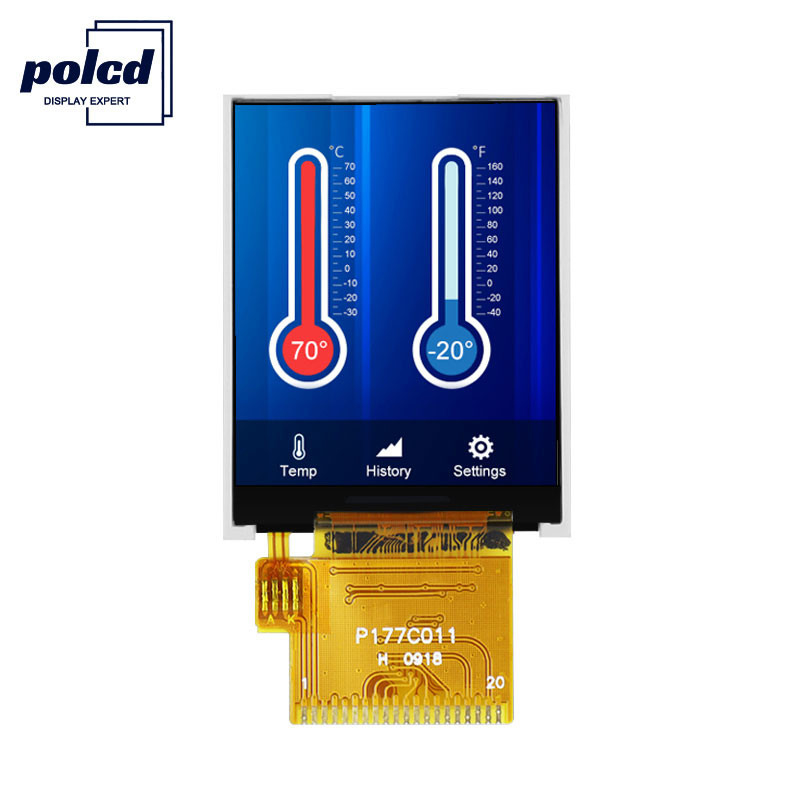

Supported by RGB 24bit, this type of TFT LCD can be used in many applications. From the datasheet we can know the driver of the LCD is is ST7262. The operation temperature is -20°C to 70°C and the storage temperature is -30°C to 80°C which compliant with industry standards.



Polcd ST7262 1.77 Inch Display 128*160  Small TFT Display 40 Pin 0




Q: I cannot find the size, the interface or the FPC I need, is it possible for customization?
A: Of course you can customize. Just tell us what you need. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.

Q: Where can I get the datasheet, initialization code, product drawings, test reports and other technical files?
A: Please contact our sales and we will provide any files if you need.

Q: What is your delivery method?
A: EXW Shenzhen by DHL/ UPS/ FedEx/ TNT and any other method you want. Or ship the goods to your forwarder in China mainland and Hong Kong.

Q: What if the goods get lost/ damaged on the way?
A: We strongly suggest to buy insurance in case of any problem. We will discuss these details with you before order.
