Name: Polcd 2.8 inch LCD Screen Panel 240*320 MCU SPI interface ILI9341V TFT LCD Module Display
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P028H042
Availability: InStock

Home > Products > TFT LCD Module >

Polcd 2.8 inch LCD Screen Panel 240*320 MCU SPI interface ILI9341V TFT LCD Module Display

2.8 inch TFT LCD module

ILI9341V LCD display panel

SPI interface LCD screen

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P028H042

Request A Quote

Product Details

Size:

2.8 Inch

Resolution:

240*320

Brightness (cd/m²):

270

Interface:

MCU 8/16bit SPI 3/4-wire

Driver Ic:

ILI9341V

PIN:

40 Pin

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

1-7 working days

Payment Terms

T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union

Supply Ability

40,000 PCS per day

Polcd 2.8 inch IPS Screen LCM Module 240x320 SPI Interface ST7789V High Brightness TFT LCD Display

Get Best Price

Video

Polcd Factory 2.8 inch 240*320 Rgb Mcu Spi Multi-Interface ST7789V ic TFT LCD Panel Screen

Get Best Price

Video

Polcd 2.8 inch LCD Panel 240*320 MCU SPI RGB interface ST7789V 2.8" Small TFT LCD Display for Industrial

Get Best Price

Video

Polcd High Quality 2.8 Inch Small Lcd Tft Display Modules ST7789V Drive 240x320 Color Screen

Get Best Price

008613714394335

anna@polcd.com

86-755-21011746

Contact Now

Product Description

Description:

This 2.8-inch TFT LCD display features 12 o'clock direction viewing angle, MCU and SPI interfaces, and ILI9341V drive IC, providing a high-quality display with efficient performance for various projects.

Parameter:

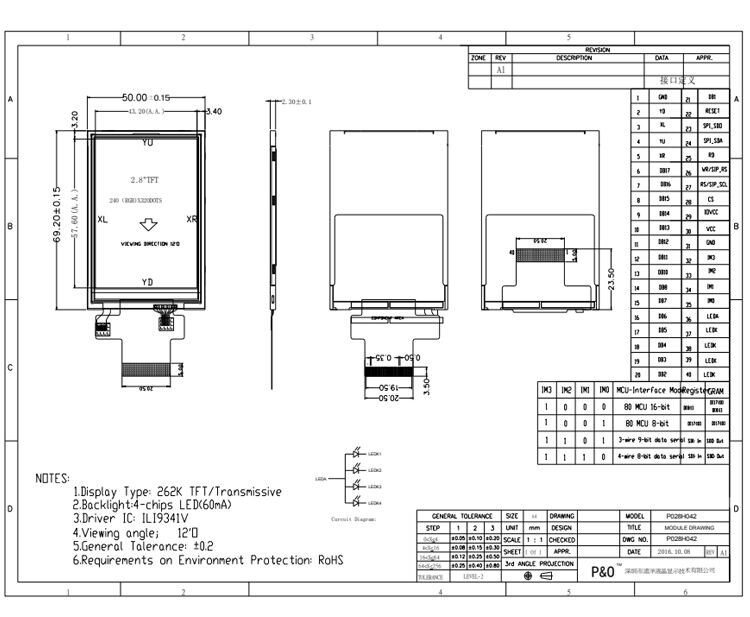

Model No.	P028H042
Screen Size	2.8 inch
Number of Pixel	240RGB(H)x320(V)
Pin	40 pin
Display area	43.20(H)x57.60(V)mm
Pixel pitch	0.06(H)x0.18(V)mm

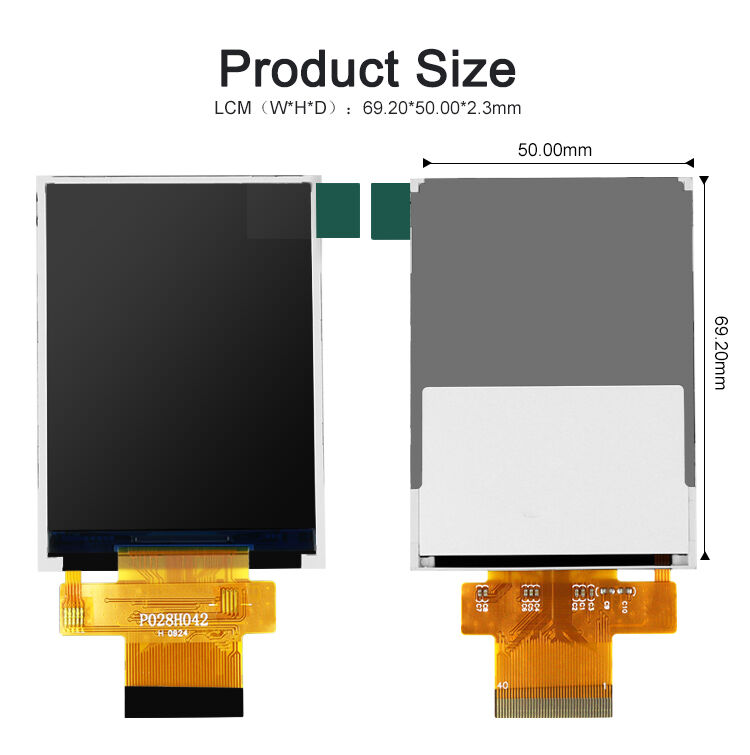

Outline Dimension	50.00x69.20x2.30mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally White
Viewing Direction(eye)	12 0'CLOCK
Display Color	262K
Luminance(cd/m²)	270 nit
Contrast Ratio	500:1
Interface	MCU 8/16bit SPI 3/4-wire
Back-light	LED Side-light type
Drive IC	ILI9341V
Operation Temperature	-20~70 ℃
Storage Temperature	-30~80 ℃

Features:

Equipped with 12 o'clock direction viewing angle, MCU and SPI interfaces, and ILI9341V drive IC, this 2.8-inch TFT LCD display provides a high-quality display with efficient performance. Its compact size and high-quality graphics with sharp resolution make it ideal for small devices and embedded systems, while the responsive and intuitive touchscreen interface and wide viewing angle ensure an excellent user experience. The fast data transfer provided by the SPI interface ensures smooth and efficient performance, while the ILI9341V drive IC delivers reliable and stable control. Overall, this TFT LCD display offers numerous benefits for various projects, delivering a high-quality display with efficient and reliable performance.
