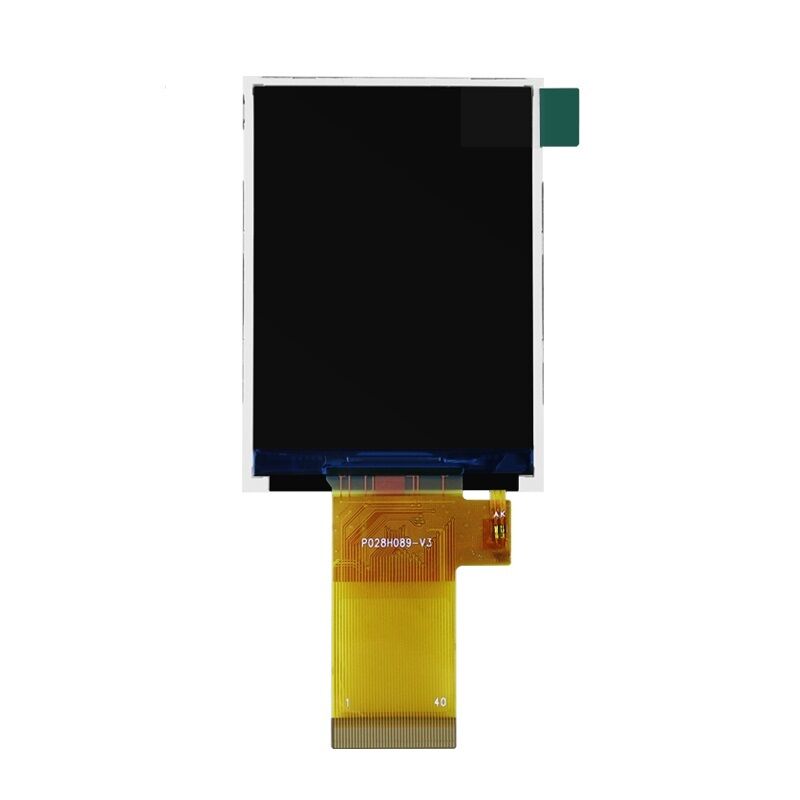

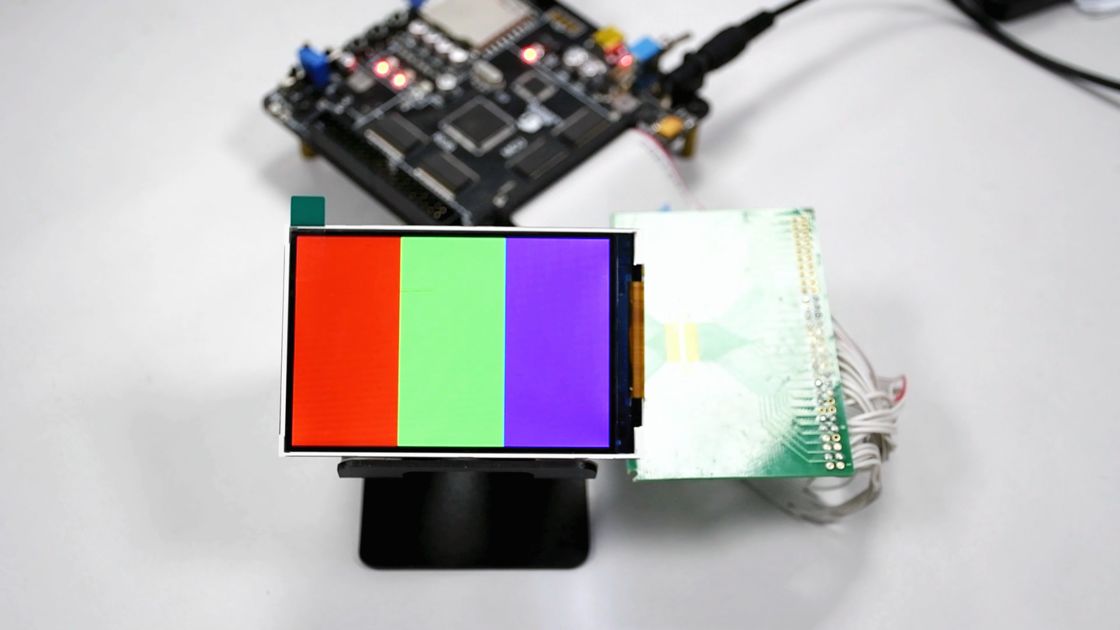

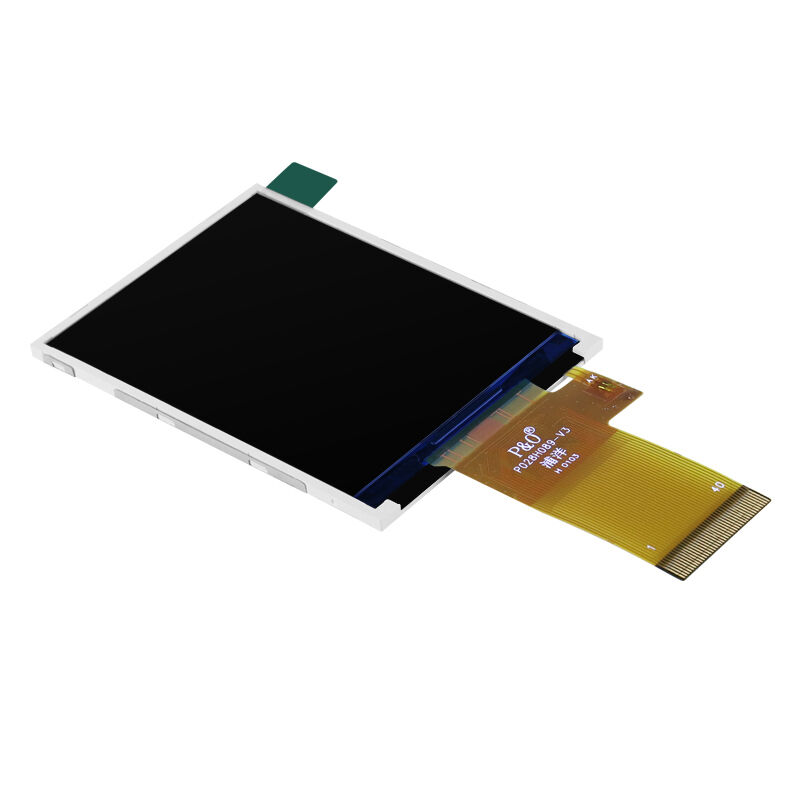

Polcd High Quality 2.8 Inch Small Lcd Tft Display Modules ST7789V Drive 240x320 Color Screen

Polcd High Quality 2.8 Inch Small Lcd Tft Display Modules ST7789V Drive 240x320 Color Screen

2.8 inch TFT LCD display module

ST7789V drive color screen

240x320 resolution TFT module

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P028H089-V3

Contact Us

Request A Quote
Product Details
Size:
2.8 Inch
Resolution:
240*320
Brightness (cd/m²):
270
Interface:
MCU 8/16bit SPI 3/4wire RGB 18BIT
Driver Ic:
ST7789V
PIN:
40 Pin
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Delivery Time
1-7 working days
Payment Terms
T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union
Supply Ability
40,000 PCS per day
Product Description

Description:

2.8-inch TFT LCD display with 12 o'clock direction viewing angle and MCU, SPI, and RGB interfaces delivers excellent visual experience and smooth performance, making it suitable for various applications.



Parameter:

Model

P028H089-V3

Screen Size

2.8 inch

Number of Pixel

240RGB(H)x320(V)

Pin

40 pin

Display area

43.20(H)x57.60(V)mm

Pixel pitch

0.06(H)x0.18(V)mm

Outline Dimension

50.00x69.20x2.3mm

Pixel arrangement

RGB Vertical Stripe

Display mode

Normally  White

Viewing Direction(eye)

12 0'CLOCK

Display Color

262K

Luminance(cd/m2)

270 nit

Contrast Ratio

500:1

Interface

MCU 8/16bit  SPI 3/4wire  RGB 18BIT

Back-light

LED Side-light type

Drive IC

ST7789V

Operation Temperature

-20~70℃

Storage Temperature

-30~80℃


Product superiority

Equipped with a 12 o'clock direction viewing angle, MCU, SPI, and RGB interfaces, this 2.8-inch TFT LCD display offers several advantages for different applications. The 12 o'clock direction ensures easy-to-read display orientation, while the MCU, SPI, and RGB interfaces ensure compatibility with various systems. Its compact size makes it an excellent option for small devices and embedded systems, and the high-quality graphics and sharp resolution provide an outstanding visual experience. Moreover, the responsive and intuitive touchscreen interface and wide viewing angle make it an ideal display solution for applications that require user interaction. Additionally, the fast data transfer provided by the SPI and RGB interfaces ensures smooth and efficient performance. In summary, this TFT LCD display provides multiple benefits for various projects, delivering a high-quality display with reliable performance.


Polcd High Quality 2.8 Inch Small Lcd Tft Display Modules ST7789V Drive 240x320 Color Screen 0Polcd High Quality 2.8 Inch Small Lcd Tft Display Modules ST7789V Drive 240x320 Color Screen 1
