Polcd 2.8 inch IPS Screen LCM Module 240x320 SPI Interface ST7789V High Brightness TFT LCD Display

Polcd 2.8 inch IPS Screen LCM Module 240x320 SPI Interface ST7789V High Brightness TFT LCD Display

2.8 inch IPS TFT LCD module

SPI interface ST7789V LCD display

high brightness 240x320 LCM module

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P028H115-10-IPS

Contact Us

Request A Quote
Product Details
Resolution:
240x320
Interface:
4wire SPI
Driver IC:
ST7789V
Brightness (cd/m²):
260 Nit
Viewing Angle:
IPS All View Angle
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Delivery Time
1-7 working days
Payment Terms
T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram
Supply Ability
40,000 PCS per day
Product Description

TFT Display Description:

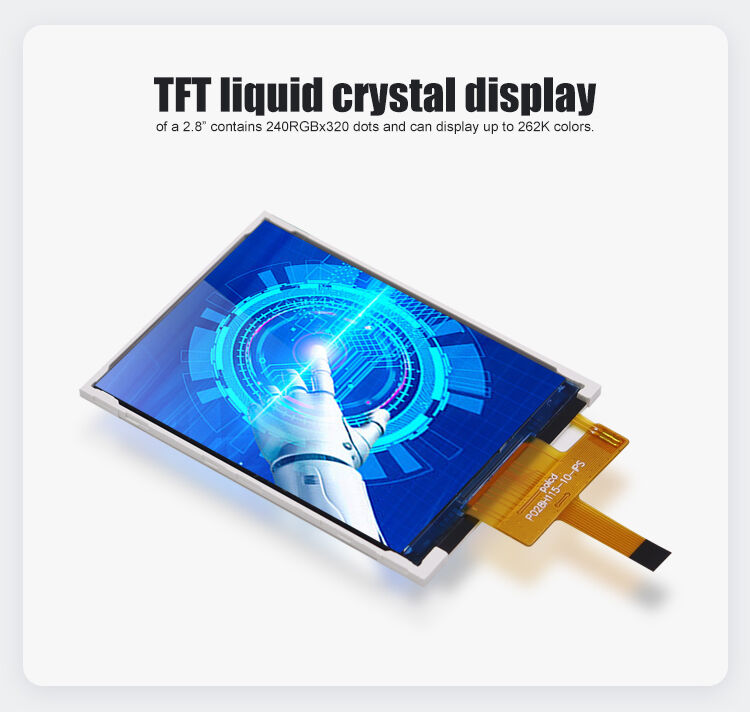

With IPS full viewing angle and 4-wire SPI interface, this 2.8-inch TFT LCD display offers high-quality and versatile display performance suitable for a range of applications.


Parameter:

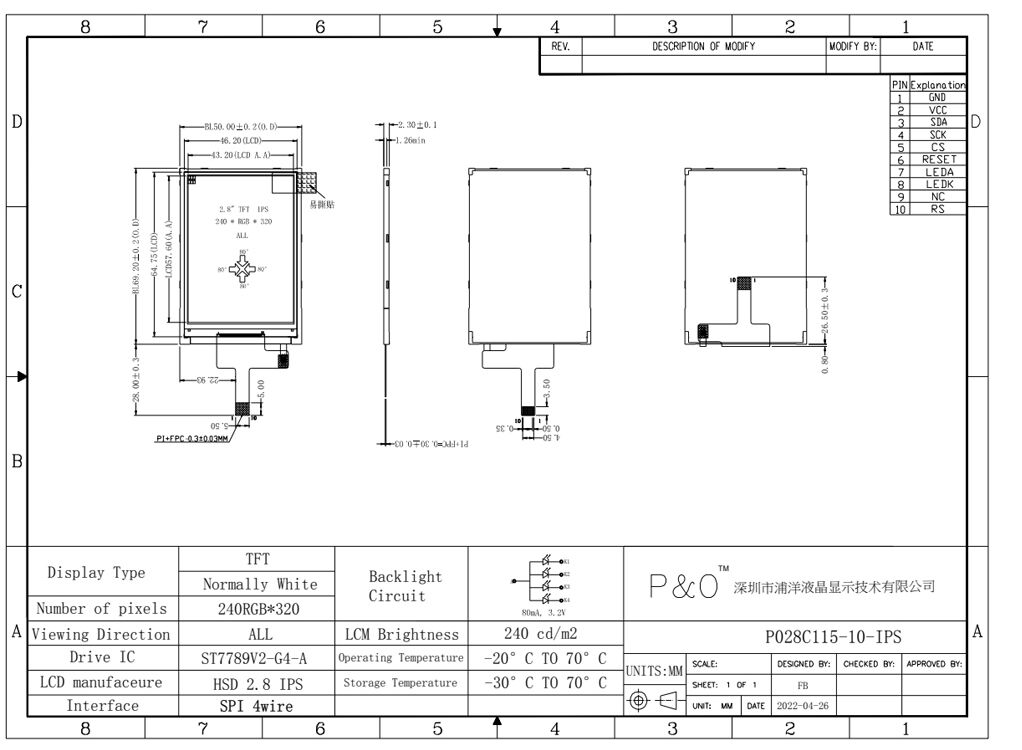

Model No. P028H115-10-IPS
Screen Size 2.8 inch
Number of Pixel 240RGB(H)x320(V)
Pin 10 pins
Display area 43.20(H)x57.60(V)mm
Pixel pitch 0.180(H)x0.180(V)mm

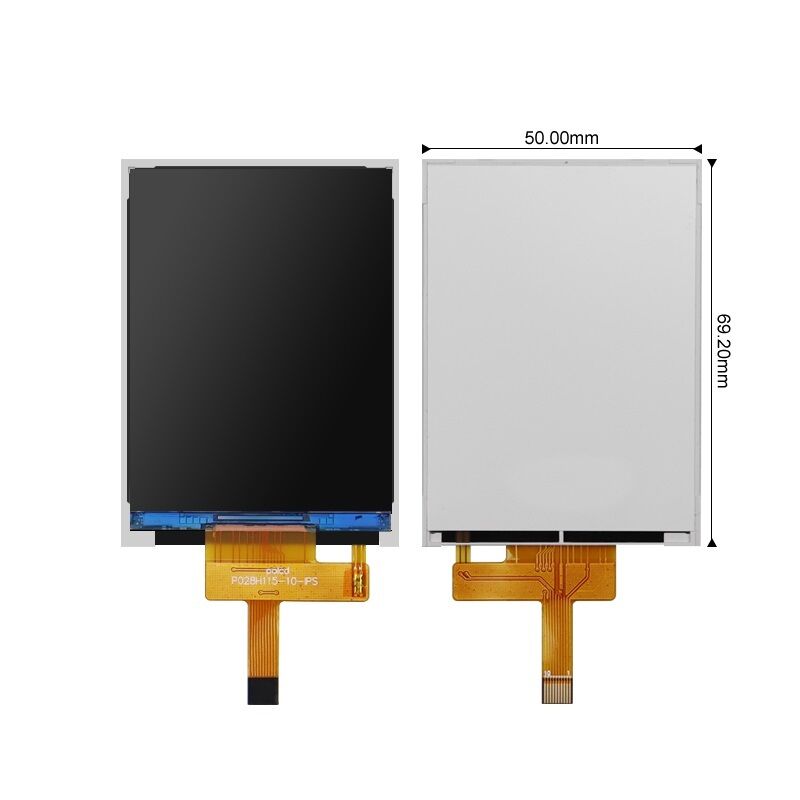

Outline Dimension 50.00x69.20x2.30mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Display Color 262K
Luminance(cd/m2) 260 nit
Contrast Ratio 800:1
Interface 4wire SPI
Back-light LED Side-light type
Drive IC ST7789V
Operation Temperature -20~70 ℃
Storage Temperature -30~80 ℃


Product features

Equipped with IPS full viewing angle and 4-wire SPI interface, this 2.8-inch TFT LCD display provides several advantages for a broad range of applications. The IPS technology ensures clear and vivid visuals from all angles, and the 4-wire SPI interface enables fast data transfer, ensuring smooth and efficient performance. Its compact size makes it an ideal solution for small devices and embedded systems, and the high-quality graphics and sharp resolution provide an exceptional visual experience for various projects. Additionally, the touchscreen interface is responsive and intuitive, and the wide viewing angle makes it an excellent display solution for applications that require user interaction. In summary, this TFT LCD display offers numerous benefits for various projects, providing a high-quality display with reliable performance.

Polcd 2.8 inch IPS Screen LCM Module 240x320 SPI Interface ST7789V High Brightness TFT LCD Display 0

Polcd 2.8 inch IPS Screen LCM Module 240x320 SPI Interface ST7789V High Brightness TFT LCD Display 1
