Polcd 4 inch LCD Screen 480*RGB*800 Vertical Display -20~70 wide Operating Temp industrial LCD Module

Polcd 4 inch LCD Screen 480*RGB*800 Vertical Display -20~70 wide Operating Temp industrial LCD Module

industrial LCD Module

4 inch LCD Screen

480*RGB*800 LCD Screen

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P040HR015-IPS

Contact Us

Request A Quote

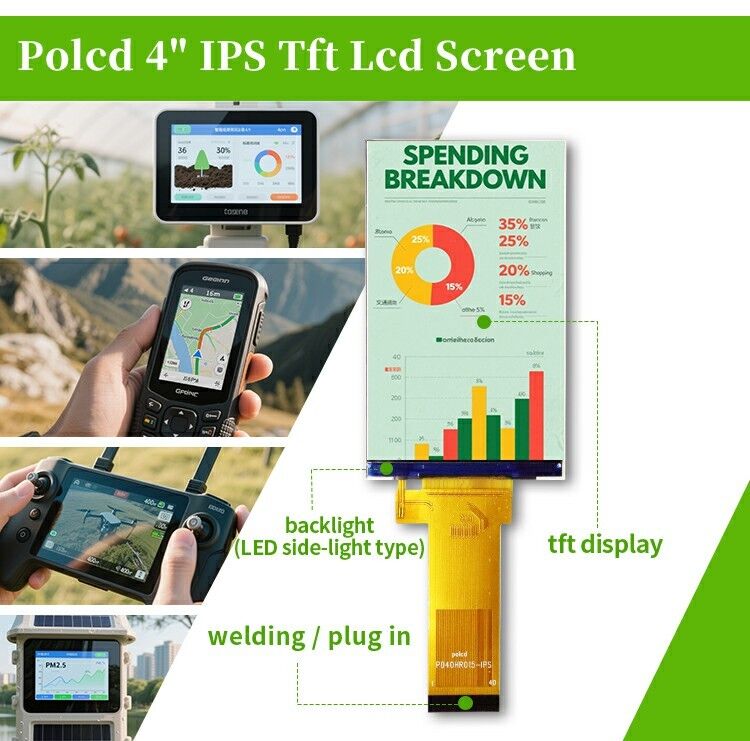

Polcd 4 inch LCD Screen 480*RGB*800 Vertical Display -20~70 wide Operating Temp industrial LCD Module
Polcd 4 inch LCD Screen 480*RGB*800 Vertical Display -20~70 wide Operating Temp industrial LCD Module Polcd 4 inch LCD Screen 480*RGB*800 Vertical Display -20~70 wide Operating Temp industrial LCD Module Polcd 4 inch LCD Screen 480*RGB*800 Vertical Display -20~70 wide Operating Temp industrial LCD Module Polcd 4 inch LCD Screen 480*RGB*800 Vertical Display -20~70 wide Operating Temp industrial LCD Module Polcd 4 inch LCD Screen 480*RGB*800 Vertical Display -20~70 wide Operating Temp industrial LCD Module
Product Details
Size (inch):
4 Inch 480x800
Brightness (cd/m²):
350 Nit
Interface:
RGB 24bit
Driver IC:
ST7701S
PIN:
40 Pin
Viewing Direction(eye):
IPS Full View Angle
Contrast Ratio:
1200:1
Display Area:
51.84(H)x86.4(V)mm
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
20 cm * 30 cm * 40 cm
Delivery Time
5-8 working days
Payment Terms
T/T, L/C, Credit card, PayPal
Supply Ability
500,000 piece per week
RELATED PRODUCTS
Good price Polcd 3.5'' 3.5 Inch SPI Interface 320x480 Resolution ST7796U Driver IC IPS TFT LCD Display Module online Video

Polcd 3.5'' 3.5 Inch SPI Interface 320x480 Resolution ST7796U Driver IC IPS TFT LCD Display Module

Get Best Price
Good price Polcd 2.8 Inch Matrix 240x320 TFT Display 20 Pin FPC LCM ST7789 Customizable Manufacturer LCD Module online Video

Polcd 2.8 Inch Matrix 240x320 TFT Display 20 Pin FPC LCM ST7789 Customizable Manufacturer LCD Module

Get Best Price
Good price Polcd 2.8 Inch TFT Color Display 240*320 Resolution SPI interface 14 pin 350nit LCD Screen online Video

Polcd 2.8 Inch TFT Color Display 240*320 Resolution SPI interface 14 pin 350nit LCD Screen

Get Best Price
Good price Polcd Small Display TFT IPS 2.8 Inch SPI Interface 240*320 RGB Color Screen ST7789P3-G6 TFT LCD online Video

Polcd Small Display TFT IPS 2.8 Inch SPI Interface 240*320 RGB Color Screen ST7789P3-G6 TFT LCD

Get Best Price
Contact Us
00-86-13714394335
anna@polcd.com
86-755-21011746
Contact Now
Product Description

Parameter:

Model P040HR015-IPS
Screen Size 4 inch
Number of Pixel 480RGB(H)x800(V)
Pin 40 pin
Display area 51.84(H)x86.4(V)mm
Pixel pitch 0.108(H)x0.108(V)mm
Outline Dimension 57.14x95.7x2.1mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Display Color 262K
Luminance(cd/m2) 350 nit
Contrast Ratio 1200:1
Interface RGB 24bit
Back-light LED Side-light type
LCM IC ST7701S
Operation Temperature -20~70℃
Storage Temperature -30~80℃



Polcd 4 inch LCD Screen 480*RGB*800 Vertical Display -20~70 wide Operating Temp industrial LCD Module 0Polcd 4 inch LCD Screen 480*RGB*800 Vertical Display -20~70 wide Operating Temp industrial LCD Module 1
