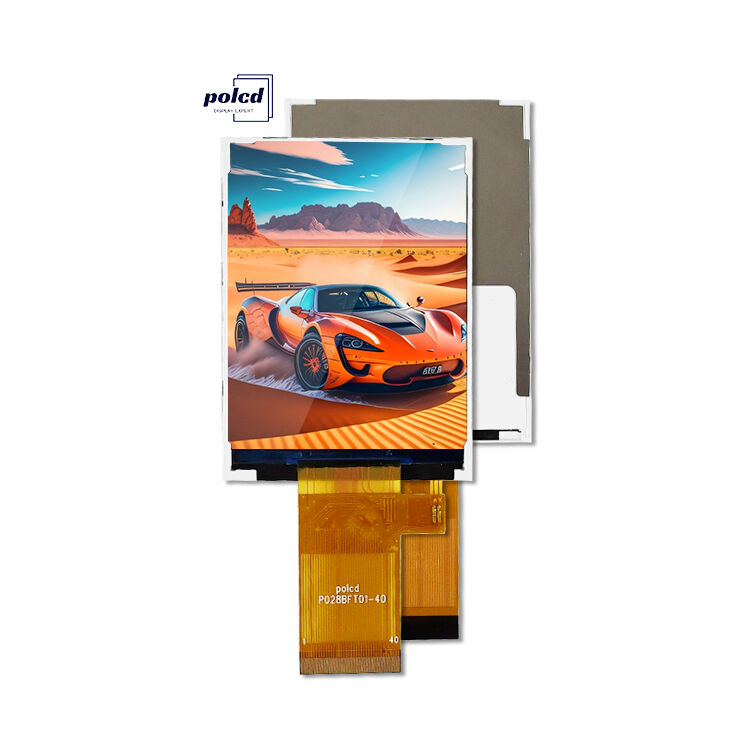

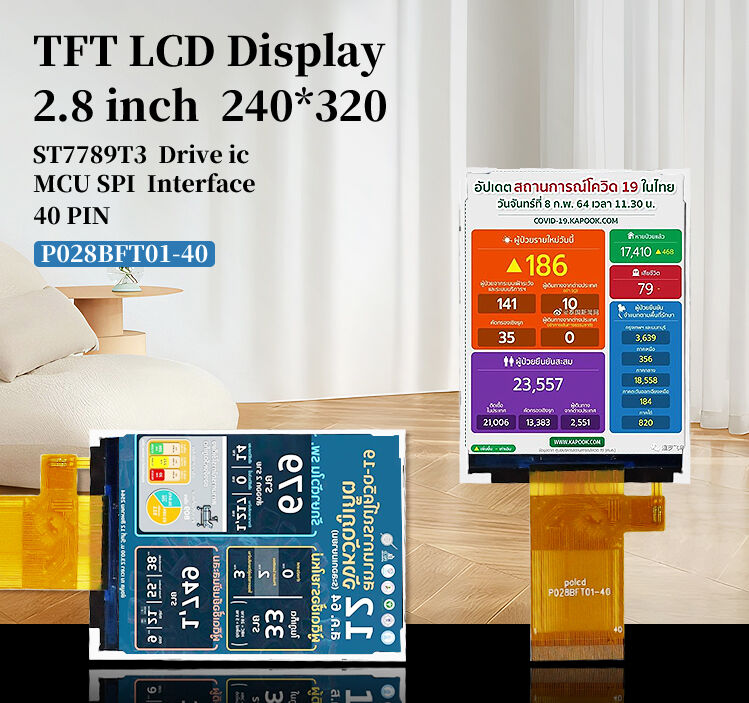

Polcd 240x320 2.8'' Color Screen ST7789T3 Ic Transflective LCD Module 2.8 Inch TFT Display

Polcd 240x320 2.8'' Color Screen ST7789T3 Ic Transflective LCD Module 2.8 Inch TFT Display

2.8 inch TFT display module

ST7789T3 LCD color screen

transflective TFT display 240x320

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P028BFT01-40

Contact Us

Request A Quote
Polcd 240x320 2.8'' Color Screen ST7789T3 Ic Transflective LCD Module 2.8 Inch TFT Display
Polcd 240x320 2.8'' Color Screen ST7789T3 Ic Transflective LCD Module 2.8 Inch TFT Display Polcd 240x320 2.8'' Color Screen ST7789T3 Ic Transflective LCD Module 2.8 Inch TFT Display Polcd 240x320 2.8'' Color Screen ST7789T3 Ic Transflective LCD Module 2.8 Inch TFT Display Polcd 240x320 2.8'' Color Screen ST7789T3 Ic Transflective LCD Module 2.8 Inch TFT Display
Product Details
Size (inch):
2.8
Resolution:
240*320
Brightness (cd/m²):
300 Nit
Display Area:
43.20(H)x57.60(V)mm
Interface:
MCU 8/16bit SPI 3wire/4wire
Driver Ic:
ST7789T3
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Delivery Time
1-7 working days
Payment Terms
T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram
Supply Ability
40,000 PCS per day
RELATED PRODUCTS
Good price Polcd 2.8 Inch 240*320 Transflective LCD Screen ST7789T3 Mcu Spi Interface 2.8 Video

Polcd 2.8 Inch 240*320 Transflective LCD Screen ST7789T3 Mcu Spi Interface 2.8" IPS TFT LCD Display Module

Get Best Price
Good price Polcd 240x320 2.8'' Color Screen ST7789T3 Ic Transflective LCD Module 2.8 Inch TFT Display online Video

Polcd 240x320 2.8'' Color Screen ST7789T3 Ic Transflective LCD Module 2.8 Inch TFT Display

Get Best Price
Good price Polcd 2.8 Video

Polcd 2.8" 240*320 Resolution TFT Display 2.8 inch IPS Panel LCD Module from Full-Auto Production Line

Get Best Price
Good price Polcd Factory Wholesale 2.8 Video

Polcd Factory Wholesale 2.8" Small Lcd Display Spi Mcu Interface 240*320 2.8 Inch Tft Lcd Module

Get Best Price
CONTACT US
00-86-13714394335
anna@polcd.com
86-755-21011746
Contact Now
Product Description

Parameter:

Model P028BFT01-40
Screen Size 2.8 inch
Number of Pixel 240RGB(H)x320(V)
Display area 43.20(H)x57.60(V)mm
Pixel pitch 0.06(H)x0.18(V)mm
Pin 20 pin
Outline Dimension 50.00x69.20x2.30mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally White
Viewing Direction(eye) Transflective
Display Color 262K
Luminance(cd/m2) 300 nit
Contrast Ratio 500:1
Interface MCU 8/16bit SPI 3wire/4wire
Back-light 4*LED Parallel type
Drive IC ST7789T3
Operation Temperature -20~70℃
Storage Temperature -30~80℃


Polcd 240x320 2.8'' Color Screen ST7789T3 Ic Transflective LCD Module 2.8 Inch TFT Display 0
