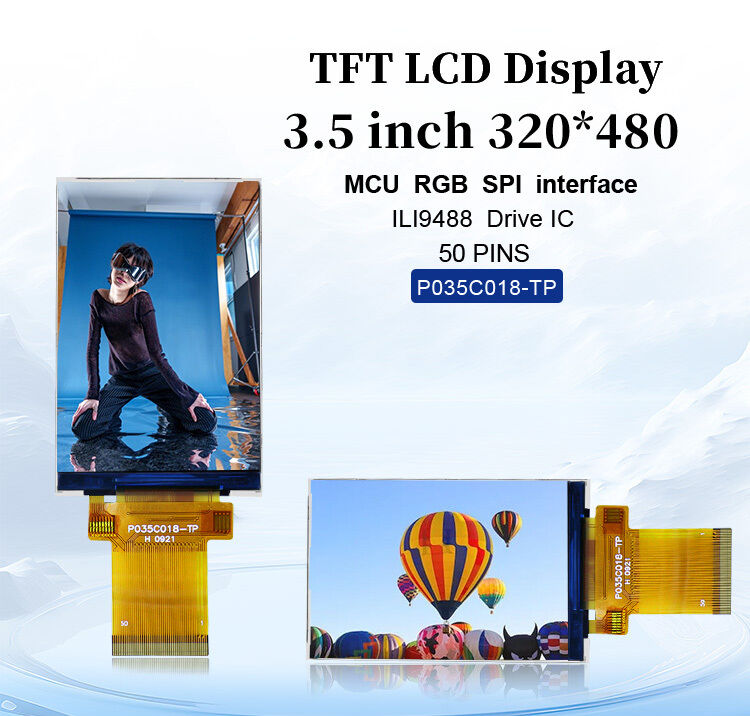

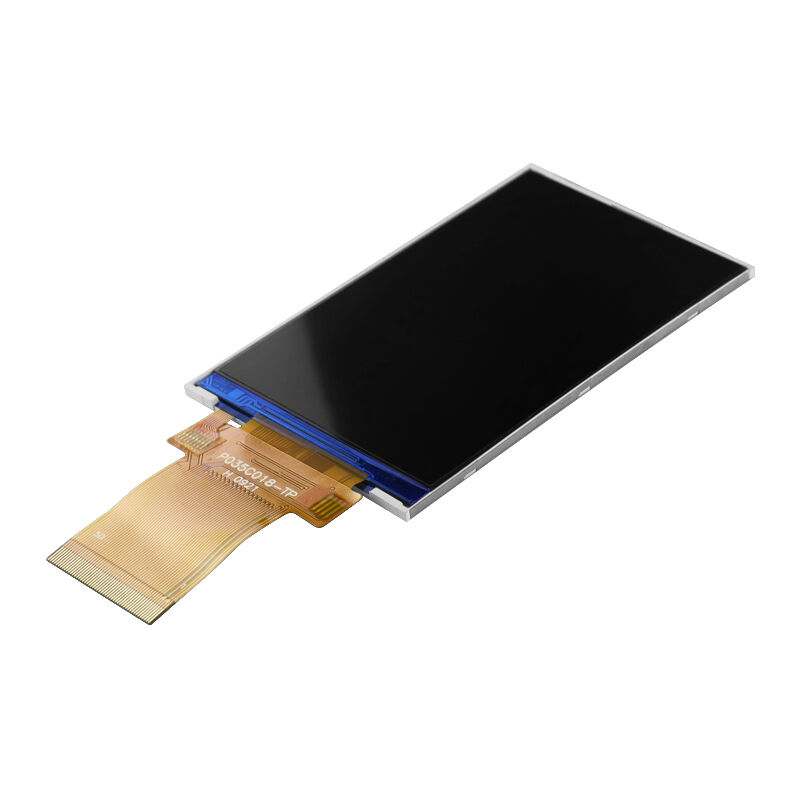

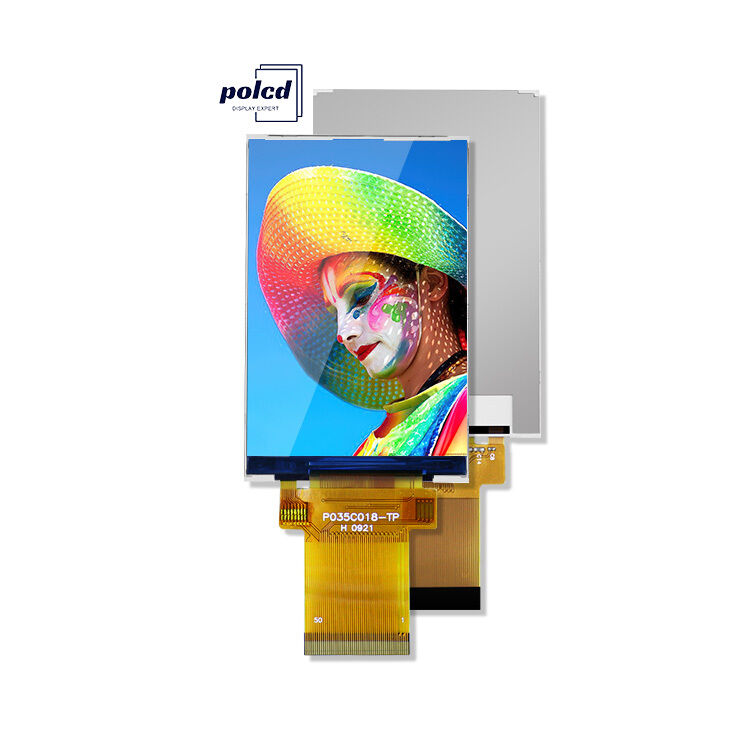

Name: Polcd Mcu Rgb Spi interface Tft Lcd Touch Screen ILI9488 3.5 Inch Tft Lcd 320x480
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P035C018-TP
Availability: InStock

Home > Products > Custom TFT Displays >

Polcd Mcu Rgb Spi interface Tft Lcd Touch Screen ILI9488 3.5 Inch Tft Lcd 320x480

8080 MCU Tft Lcd Touch Screen

Tft Lcd Touch Screen ILI9488

ILI9488 3.5 Inch Tft Lcd 320X480

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P035C018-TP

Request A Quote

Product Details

Size (inch):

3.5

Resolution:

320*480

Brightness (cd/m²):

300

Interface:

MCU 8/16bit RGB 18bit SPI 3/4wire

Driver Ic:

ILI9488

Contrast Ratio:

500:1

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

1-7 working days

Payment Terms

T/T,L/C,PayPal,D/A,D/P,Western Union,MoneyGram

Supply Ability

40,000 PCS per day

Polcd 2.8 Inch 240*320 Transflective LCD Screen ST7789T3 Mcu Spi Interface 2.8" IPS TFT LCD Display Module

Get Best Price

Video

Polcd 240x320 2.8'' Color Screen ST7789T3 Ic Transflective LCD Module 2.8 Inch TFT Display

Get Best Price

Video

Polcd 2.8" 240*320 Resolution TFT Display 2.8 inch IPS Panel LCD Module from Full-Auto Production Line

Get Best Price

Video

Polcd Factory Wholesale 2.8" Small Lcd Display Spi Mcu Interface 240*320 2.8 Inch Tft Lcd Module

Get Best Price

00-86-13714394335

anna@polcd.com

86-755-21011746

Contact Now

Product Description

This TFT Touch Screen is a color-active matrix thin-film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. If your product requires a size 3.5 inch then our lcd is just what you need. Improve your product design by adding our 320 * 480 resolution product. QC department measured the luminance is 250 nits under normal operating.

Parameter:

Model	P035C018-TP
Screen Size	3.5 inch
Number of Pixel	320RGB(H)x480(V)
Display area	48.96(H)x73.44(V)mm
Pixel pitch	0.153(H)x0.153(V)mm
Pin	50 pin

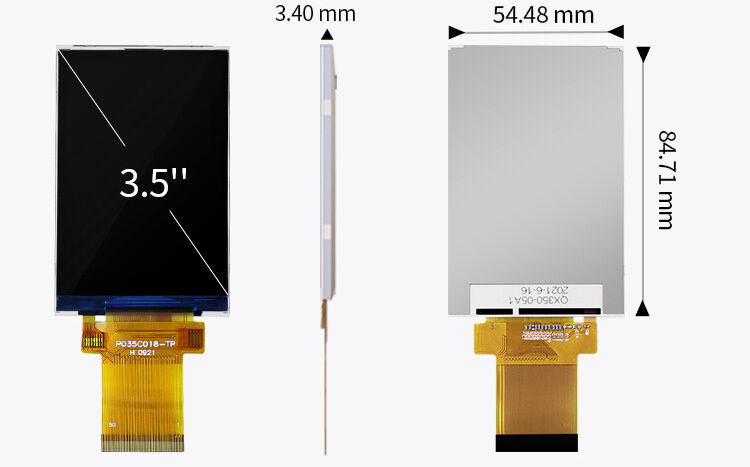

Outline Dimension	54.48x84.71x2.25mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally White
Viewing Direction(eye)	12 0'CLOCK
Display Color	262k
Luminance(cd/m²)	300 nit
Contrast Ratio	500:1
Interface	MCU 8/16bit RGB 18bit SPI 3/4wire
Back-light	LED Side-light type
Drive IC	ILI9488
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

Product advantages

This 3.5-inch TFT LCD display, with MCU, RGB, and SPI interface, features a 12 o'clock viewing angle and is suitable for various applications. Its advantages include high-resolution display, vivid colors, fast display speed, quick response, and low power consumption, making it easy to control and integrate. Additionally, the display supports multiple display modes and image formats, providing wide compatibility and reliability. It is a compact and efficient display solution suitable for various fields such as consumer electronics, medical, industrial control, communication, and security.

Polcd Mcu Rgb Spi interface Tft Lcd Touch Screen ILI9488 3.5 Inch Tft Lcd 320x480 0

Q: Is there a Touch Panel (Touch Screen) on the display?
A: We can offer you the RTP (Resistive Touch Panel) and CTP (Capacitive Touch Panel) if you need.

Q: I want make sure some information before order, where should I find the files or datasheet?
A: The easiest way is contact our sales then we will provide any files if you need quickly.

Q: What is your delivery method?
A: EXW Shenzhen by DHL/ UPS/ FedEx/ TNT and any other method you want. Or ship the goods to your forwarder in China mainland and Hong Kong.

Q: What kind of packaging? Will the transport process be damaged?
A: Packed in anti-static bags with foam box to ensure safety in transportation.
