Name: Polcd Custom LCD Display 3.5 Inch 320x480 40pin IPS Angle 500nit ST7796U Capacitive Touch Screen
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P035M083-IPS-CTP
Availability: InStock

Home > products > Custom TFT Displays >

Polcd Custom LCD Display 3.5 Inch 320x480 40pin IPS Angle 500nit ST7796U Capacitive Touch Screen

3.5 Inch Custom Lcd Display

320x480 Custom Lcd Display

Capacitive Touch Screen Custom Lcd Display

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P035M083-IPS-CTP

Request A Quote

Product Details

Resolution:

320*480

Interface:

3W 18Bit RGB

Driver IC:

ST7796U

Brightness (cd/m²):

500 Nit

Viewing Angle:

IPS All View Angle

Display Area:

48.96(H)x73.44(V)mm

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

1-7 working days

Payment Terms

T/T, L/C, Credit card, PayPal, D/A, D/P, Western Union, MoneyGram

Supply Ability

25,000 PCS per day

Polcd 3.5'' 3.5 Inch SPI Interface 320x480 Resolution ST7796U Driver IC IPS TFT LCD Display Module

Get Best Price

Video

Polcd 2.8 Inch Matrix 240x320 TFT Display 20 Pin FPC LCM ST7789 Customizable Manufacturer LCD Module

Get Best Price

Video

Polcd 2.8 Inch TFT Color Display 240*320 Resolution SPI interface 14 pin 350nit LCD Screen

Get Best Price

Video

Polcd Small Display TFT IPS 2.8 Inch SPI Interface 240*320 RGB Color Screen ST7789P3-G6 TFT LCD

Get Best Price

00-86-13714394335

anna@polcd.com

86-755-21011746

Contact Now

Product Description

Parameter:

Item	Specification
Model	P035M083-IPS-CTP
Screen Size	3.5 inch
Number of Pixel	320RGB(H)x480(V)
Display area	48.96(H)x73.44(V)mm
Pixel pitch	51(H)x153(V)um
Pins	40 pins

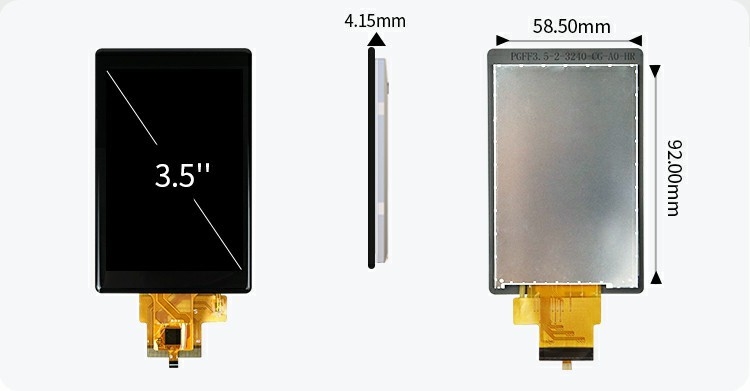

Outline Dimension	58.50x92.00x4.15mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Gray inversion direction	--
Display Color	262K
Luminance(cd/m2)	500 nit
Contrast Ratio	700:1
Surface treatment	--
Interface	3W 18Bit RGB
Back-light	LED Side-light type
Drive IC	ST7796U
CTP IC	CST3240
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

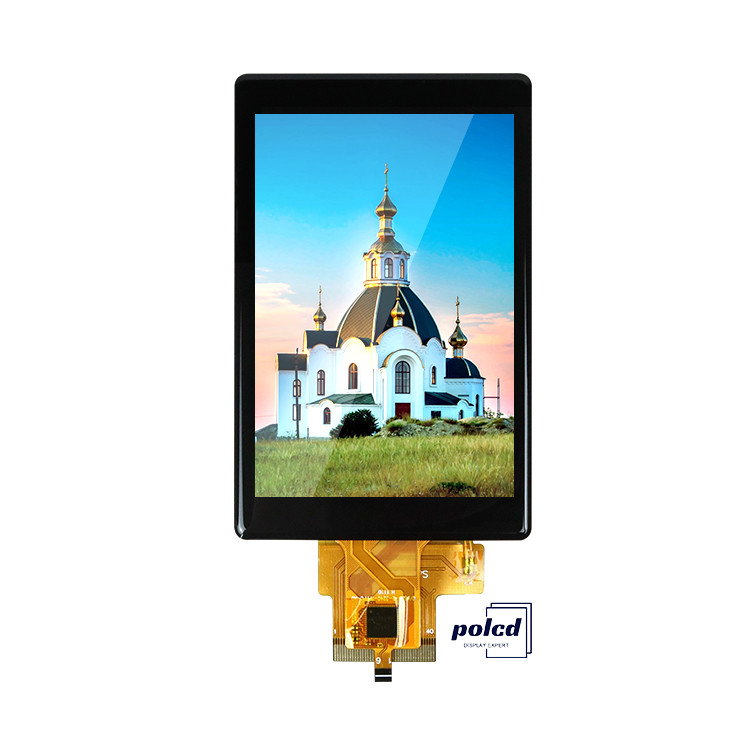

Polcd Custom LCD Display 3.5 Inch 320x480 40pin IPS Angle 500nit ST7796U Capacitive Touch Screen 0

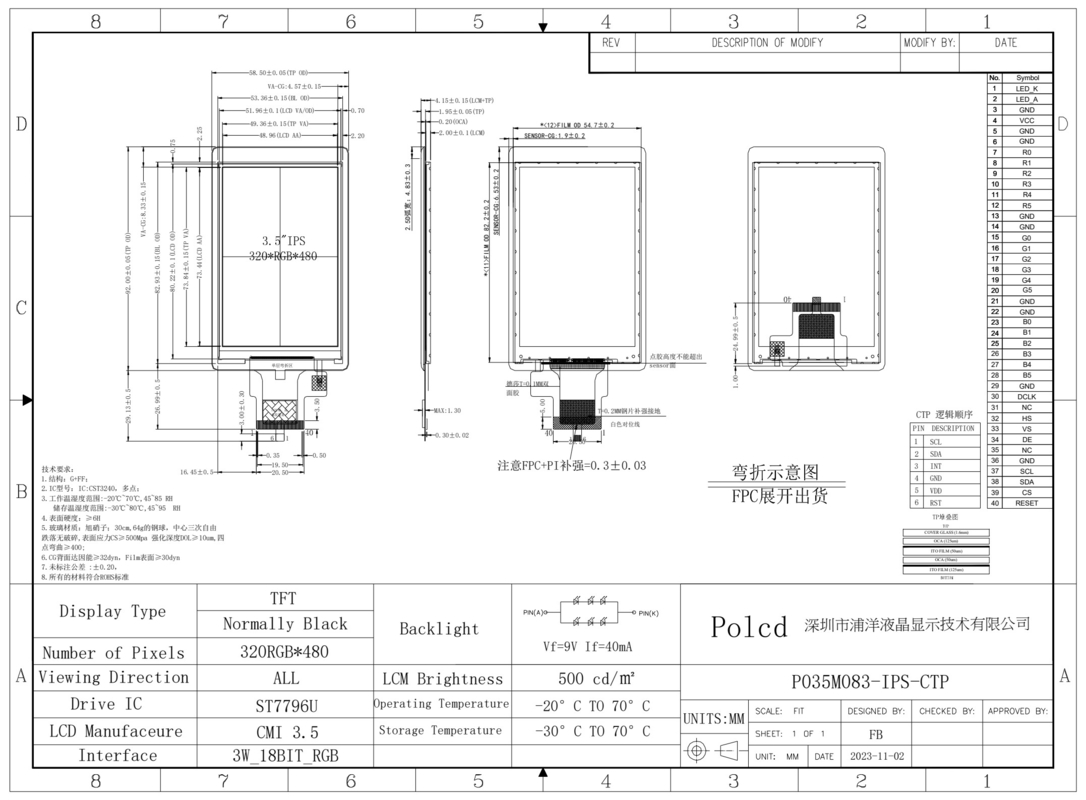

Polcd Custom LCD Display 3.5 Inch 320x480 40pin IPS Angle 500nit ST7796U Capacitive Touch Screen 1
