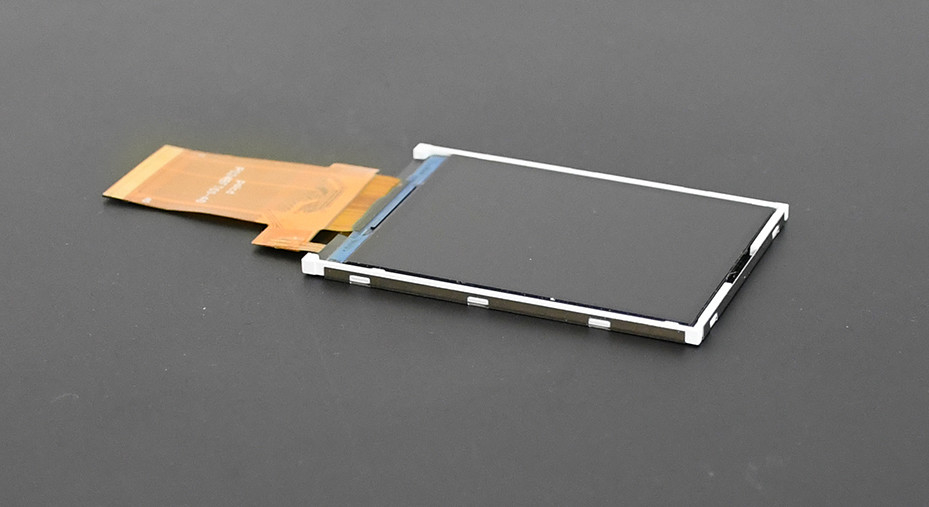

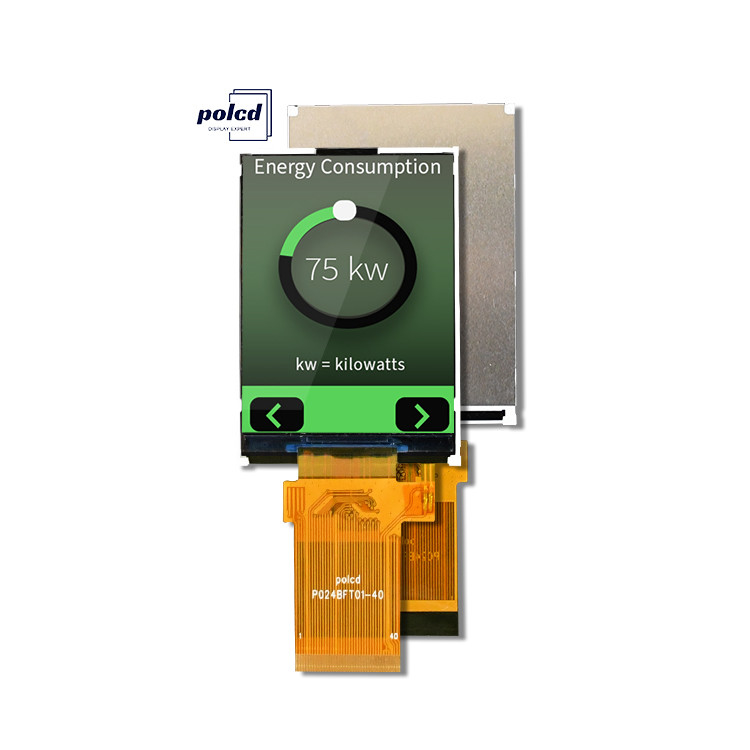

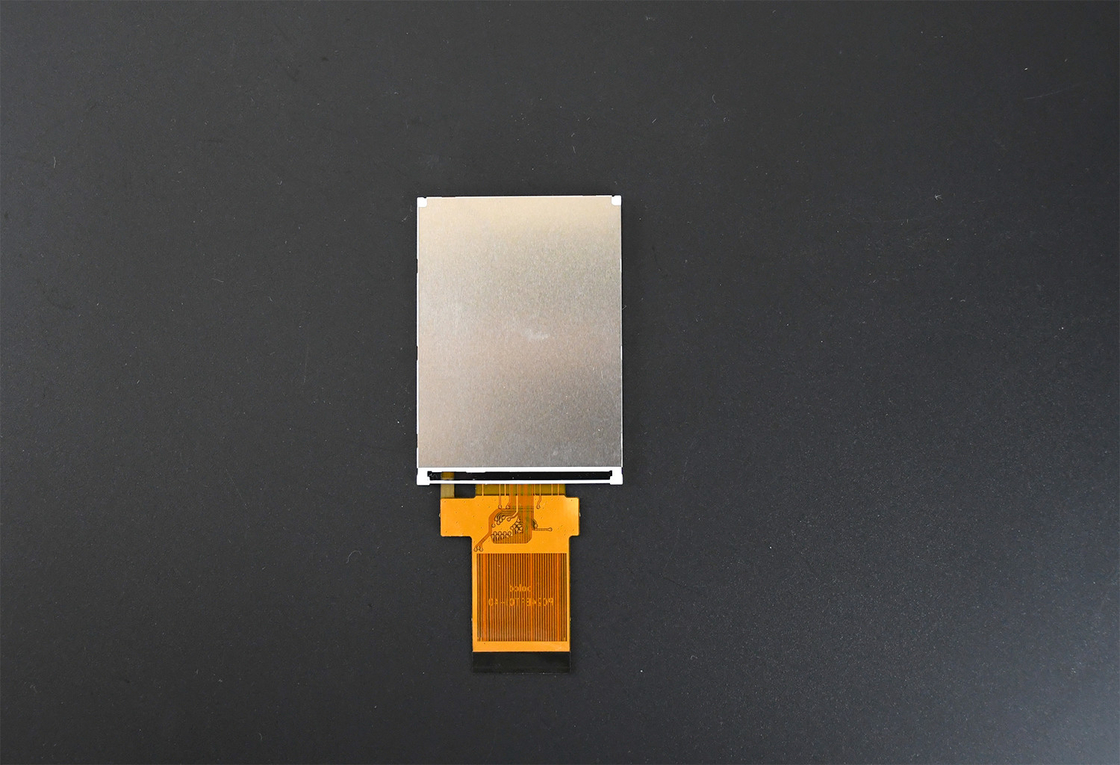

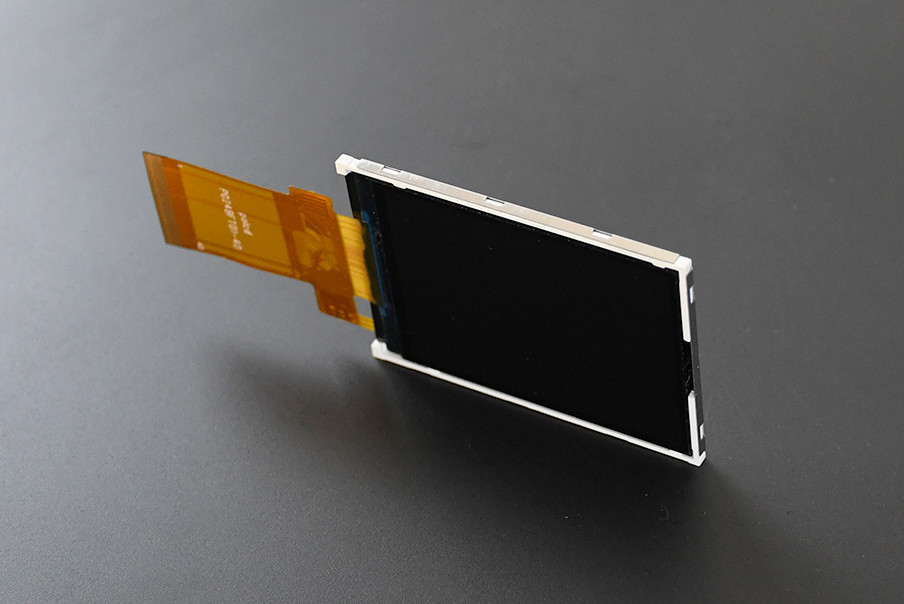

Name: Polcd Full Color LCD Display Transflective 2.4 inch TFT SPI MCU 20 pin Qvga 240x320 TFT LCD
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P024BFT01-40
Availability: InStock

Home > products > Custom TFT Displays >

Polcd Full Color LCD Display Transflective 2.4 inch TFT SPI MCU 20 pin Qvga 240x320 TFT LCD

Transflective Full Color LCD Display

Qvga 240x320 TFT LCD

2.4 inch TFT LCD

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P024BFT01-40

Request A Quote

Product Details

Size (inch):

2.4

Resolution:

240*320

Brightness (cd/m²):

300 Nit

Viewing Direction:

IPS Full View Angle

Interface:

3W4W SPI / MCU 8bit 16bit

Driver Ic:

ST7789T3

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

20 cm * 30 cm * 40 cm

Delivery Time

5-8 working days

Payment Terms

T/T, L/C, Credit card, PayPal

Supply Ability

500,000 piece per week

Polcd 3.5'' 3.5 Inch SPI Interface 320x480 Resolution ST7796U Driver IC IPS TFT LCD Display Module

Get Best Price

Video

Polcd 2.8 Inch Matrix 240x320 TFT Display 20 Pin FPC LCM ST7789 Customizable Manufacturer LCD Module

Get Best Price

Video

Polcd 2.8 Inch TFT Color Display 240*320 Resolution SPI interface 14 pin 350nit LCD Screen

Get Best Price

Video

Polcd Small Display TFT IPS 2.8 Inch SPI Interface 240*320 RGB Color Screen ST7789P3-G6 TFT LCD

Get Best Price

00-86-13714394335

anna@polcd.com

86-755-21011746

Contact Now

Product Description

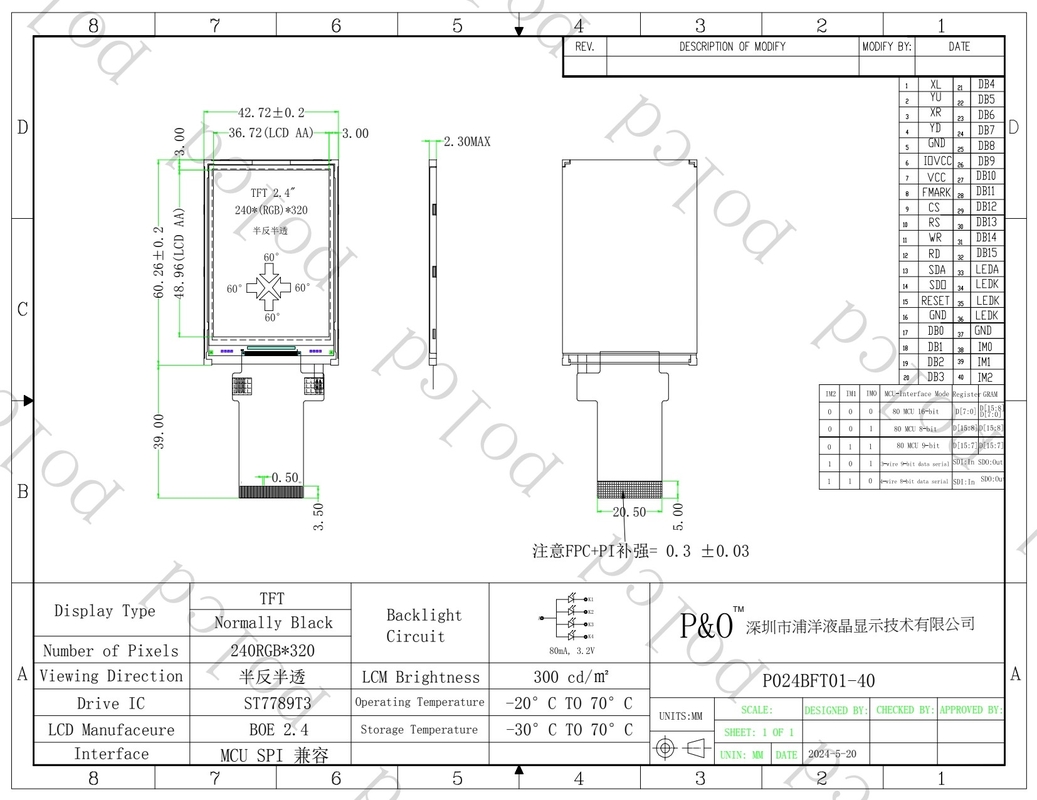

Parameter:

Model	P024BFT01-40
Screen Size	2.4 inch
Number of Pixel	240RGB(H)x320(V)
Display area	36.72(H)x48.96(V)mm
Pixel pitch	51(H)x153(V)um
Pin	20 pin
Outline Dimension	42.72x60.26x2.30mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black

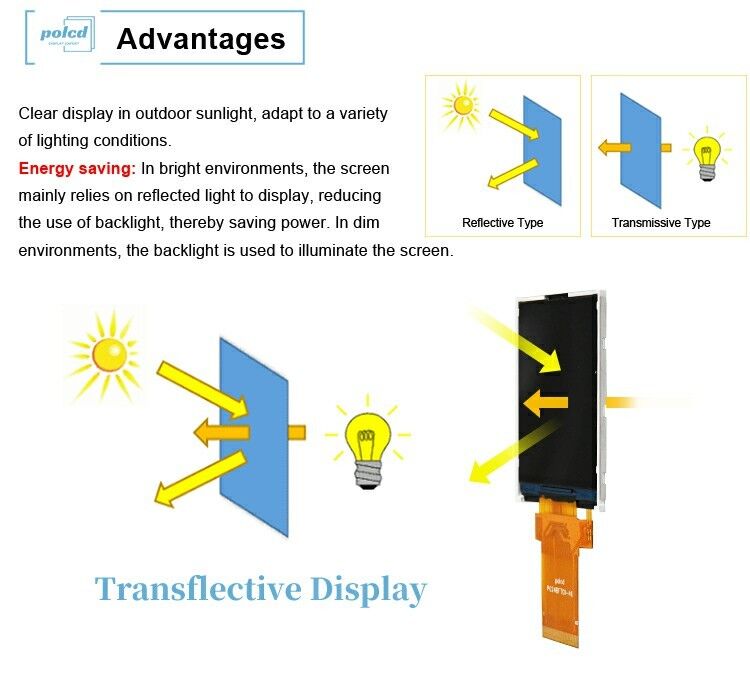

Viewing Direction(eye)	Transflective
Display Color	262K
Luminance(cd/m²)	300 nit
Contrast Ratio	250:1
Interface	3W4W SPI / MCU 8bit 16bit
Back-light	LED Side-light type
Drive IC	ST7789T3
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃
