Place of Origin:
Shenzhen, China
Brand Name:
Polcd
Certification:
RoHS, ISO9001
Model Number:
P024C117
Contact Us
Video
Video
Video
Video

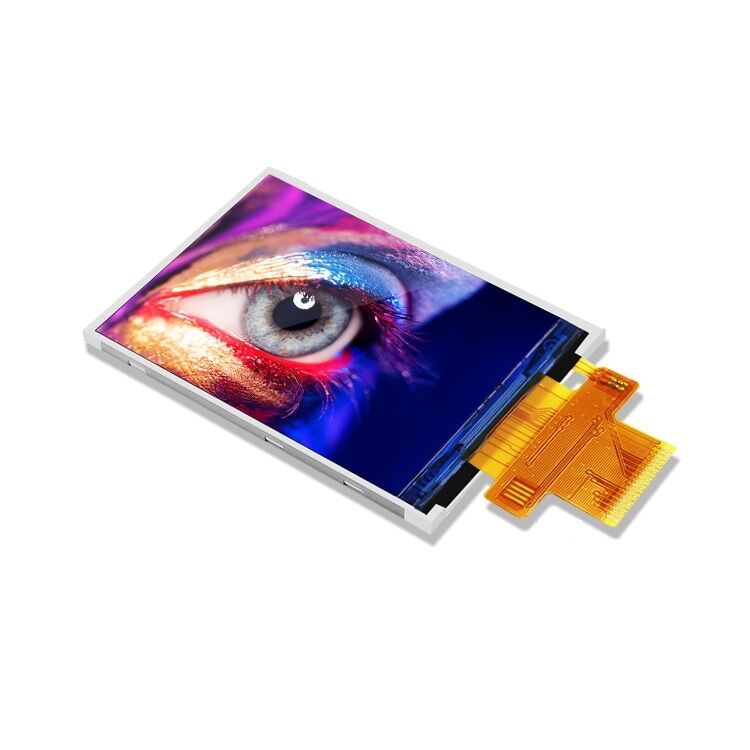

What can we expect from this one? Before this question it is better to know some information about this TFT Touch Screen. If your product requires a size 2.4 inch then our lcd is just what you need. The TFT LCD offers a physical resolution of 240 * 320, clear enough for most scenes to be used. The normal brightness is 260 nits under the test of laboratory.

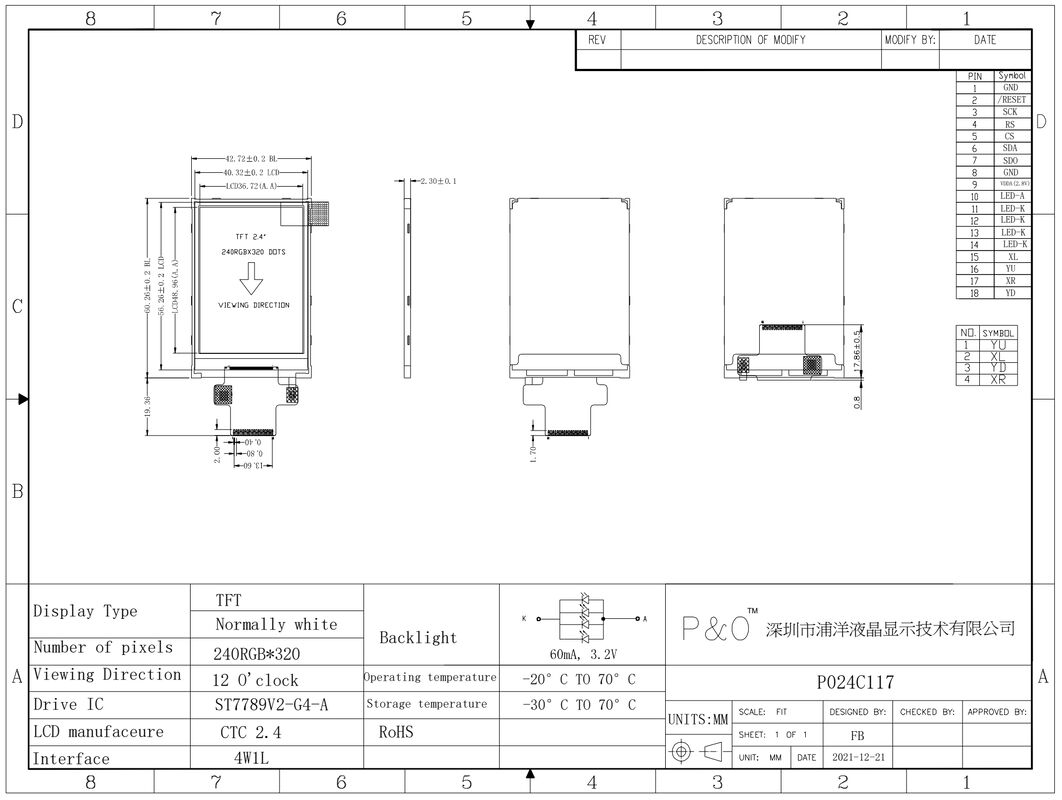

| P/N | P024C117 |
| Size(inch) | 2.4 |
| Resolution | 240*320 |
| Brightness(cd/m²) | 260 |
| Interface | 4 Wire SPI |
| Driver Ic | ST7789V2 |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 18 |
Supported by 4 Wire SPI, this type of TFT LCD can be used in many applications. From the datasheet we can know the driver of the LCD is is ST7789V2. The operation temperature is -20°C to 70°C and the storage temperature is -30°C to 80°C which compliant with industry standards.
Q: I cannot find the size, the interface or the FPC I need, is it possible for customization?
A: Of course you can customize. Just tell us what you need. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.
Q: What about payment terms?
A: PayPal and credit card can be accepted for sample, T/T paid for mass order. Advance payment percentage can be discussed.
Q: How you ship the goods?
A: Usually we will ship the sample by fast delivery. No matter how we will take the best shipping method you agree with. Shipping cost should pay by your side, please kindly know.
Q: Can I trust the quality? We want good quality first.
A: Our company has a professional Quality Control Department, and all products are 100% inspected prior to ship. We welcome all the customers from the wolrd visiting our factory for checking any time.
