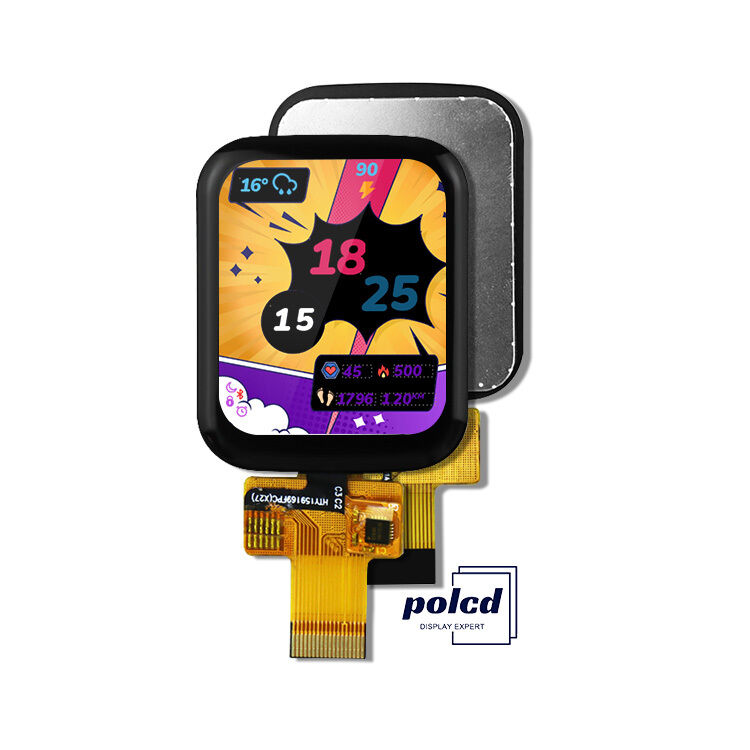

Polcd 1.69 Inch Touch Screen Lcd Display 240x280 SPI interface Small TFT Module

Polcd 1.69 Inch Touch Screen Lcd Display 240x280 SPI interface Small TFT Module

1.69 Inch Touch Screen Lcd Display

Touch Screen Lcd Display 240x240

240x240 LCD Touch Panel

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P169H002-CTP

Contact Us

Request A Quote
Product Details
Size (inch):
1.69
Resolution:
240*280
Display Area:
27.97(H)x32.63(V)mm
Brightness (cd/m²):
300
Interface:
4 Line SPI
Driver Ic:
ST7789V
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Delivery Time
1-7 working days
Payment Terms
T/T, L/C, Credit card, PayPal, D/A, D/P, Western Union, MoneyGram
Supply Ability
25,000 PCS per day
Product Description

What can we expect from this one? Before this question it is better to know some information about this LCD Touch Panel. Screen size is 1.69 inch. A very common and hot selling size for small size TFT display. The TFT LCD offers a physical resolution of 240 * 280, clear enough for most scenes to be used. 300 nits allow this lcd to work well indoors.

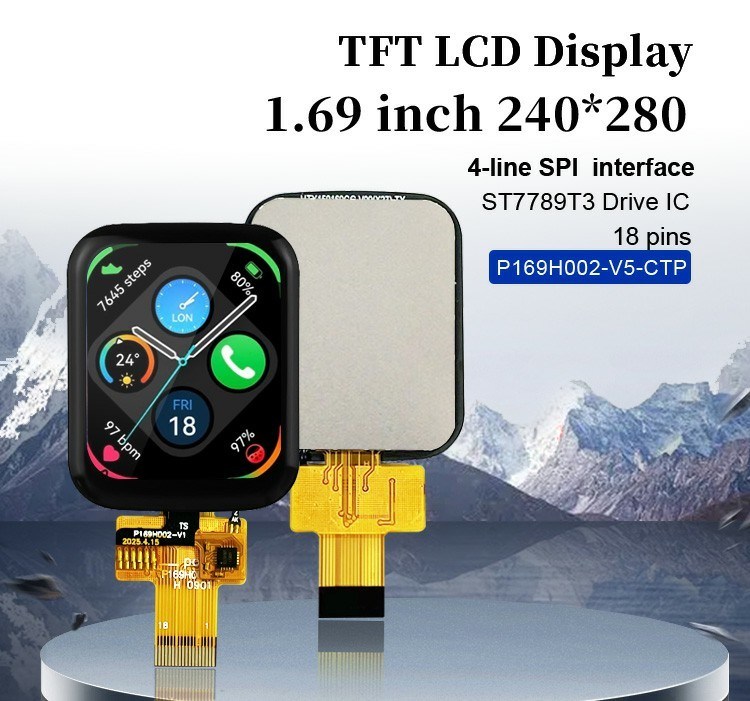

P/N P169H002-CTP
Size(inch) 1.69
Resolution 240*280
Active Area(mm) 27.97*32.63
Pixel pitch(um) 116.55*116.55
Outline Dimension(mm) 33.13*41.13*3.61
Pixel arrangement RGB Vertical Stripe
Display Mode Normally Black
Viewing Angle ALL
Display colors 262K
Brightness
(cd/m²)
300
Contrast Ratio 1000:1
Interface 4 Line SPI
Back-light LED Side-light type
Driver Ic ST7789V
Operation Temperature(°C) -20~70
Storage Temperature(°C) -30~80
Response time(ms) 35
Pin Number 18





Supported by 4 Line SPI , this type of TFT LCD can be used in many applications. ST7789V is the driver IC of the tft lcd. The operation temperature is -20°C to 70°C and the storage temperature is -30°C to 80°C which compliant with industry standards.



Polcd 1.69 Inch Touch Screen Lcd Display 240x280 SPI interface Small TFT Module 0






Q: Can we customize product? What cost will be included?
A: The product can be customized. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.

Q: Can I pay the order with credit cards or PayPal?
A: We accept PayPal and credit card for sample, T/T paid for mass order. We also accept advanced percentage (usually 30% before producing) for large orders.

Q: Do you have products in stock? How long will it take for delivery?
A: Our inventory is mainly raw materials, semi-finished and a small number of finished products. After payment, sample available in stock will be sent within 3 days; Small batch delivery takes 2-3 weeks; Large batch delivery takes 3-4 weeks. Our sales will serve you these details before shipping.

Q: How to control the quality of products?
A: Our company has a professional quality team, and all products are 100% inspected prior to ship.


Q: Can you delivery on time? We want the goods arrive on time.

A: We will choose the most trusted ship way for you. Usually DHL, FedEx, UPS for samples. We will tell you the most possible arrive time and update the track number the first time we got. Any other problem just talk with our sales.
