Place of Origin:
Shenzhen, China
Brand Name:
Polcd
Certification:
RoHS, ISO9001
Model Number:
P024C117-PCB
Contact Us
Video

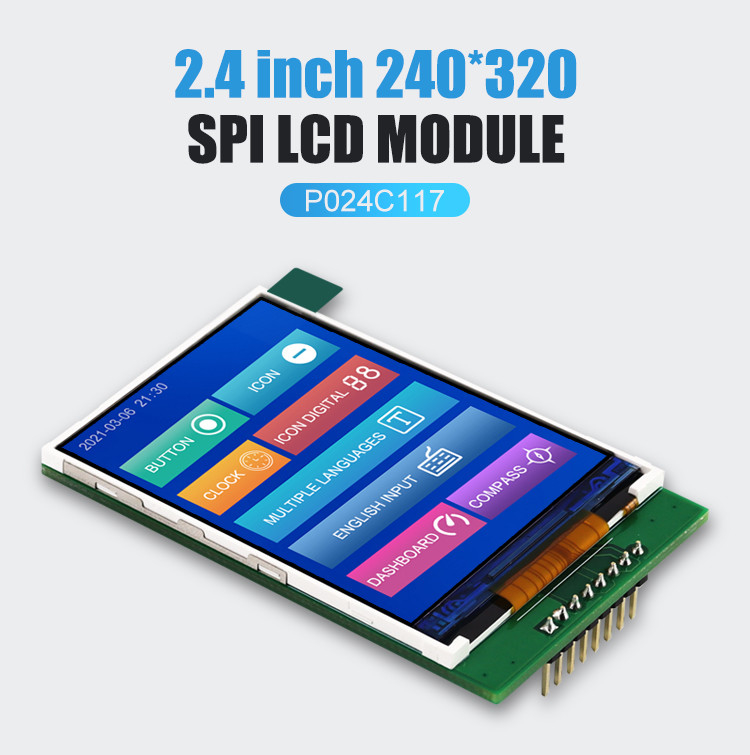

This TFT Touch Screen is a color-active matrix thin-film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. If your product requires a size 2.4 inch then our lcd is just what you need. Improve your product design by adding our 240 * 320 resolution product. QC department measured the luminance is 260 nits under normal operating.
| P/N | P024C117-B |
| Size(inch) | 2.4 |
| Resolution | 240*320 |
| Brightness(cd/m²) | 260 |
| Interface | 4 Wire SPI |
| Driver Ic | ST7789V2 |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 18 |
This type of 4 Wire SPI can be suitable for a variety of scenarios. From the datasheet we can know the driver of the LCD is is ST7789V2. THE lowest operating temperature can reach -20°C (-4°F) and highest is 70°C (158°F).
Q: I cannot find the size, the interface or the FPC I need, is it possible for customization?
A: Of course you can customize. Just tell us what you need. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.
Q: What about payment terms?
A: PayPal and credit card can be accepted for sample, T/T paid for mass order. Advance payment percentage can be discussed.
Q: How you ship the goods?
A: Usually we will ship the sample by fast delivery. No matter how we will take the best shipping method you agree with. Shipping cost should pay by your side, please kindly know.
Q: What if the goods get lost/ damaged on the way?
A: We strongly suggest to buy insurance in case of any problem. We will discuss these details with you before order.
