Name: Polcd RoHS Color 262K Lcd Tft 2.4 Inch ST7789V2 Tft Touch Panel
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P024C117-PCB
Availability: InStock

Home > products > TFT Touch Screen >

Polcd RoHS Color 262K Lcd Tft 2.4 Inch ST7789V2 Tft Touch Panel

RoHS Color 262K Lcd Tft 2.4 Inch

262K Lcd Tft 2.4 Inch ST7789V2

ST7789V2 Tft Touch Panel

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P024C117-PCB

Request A Quote

Product Details

P/N:

P024C117SD

Size (inch):

2.4

Resolution:

240*320

Brightness (cd/m²):

260

Interface:

4 Wire SPI

Driver Ic:

ST7789V2

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

20 cm * 30 cm * 40 cm

Delivery Time

5-8 working days

Payment Terms

T/T, L/C, Credit card, PayPal

Supply Ability

500,000 piece per week

Polcd 12 0'CLOCK 240x320 2.8 Inch Ili9341v 16 Bit TFT Touch Screen

Get Best Price

Video

Polcd ISO9001 2.4 Inch Tft Touch Screen Tft Monitor 12 0'CLOCK

Get Best Price

Video

Polcd RoHS Color 262K Lcd Tft 2.4 Inch ST7789V2 Tft Touch Panel

Get Best Price

Video

Polcd ST7262 1.77 Inch 24 Bit Lcd 128X160 TFT Touch Screen 300 Nit

Get Best Price

00-86-13714394335

anna@polcd.com

86-755-21011746

Contact Now

Product Description

New published TFT Touch Screen for commercial and industrial use. Our TFT LCD has a 2.4 inch diagonally. The resolution of our tft lcd is 240 * 320. The normal brightness is 260 nits under the test of laboratory. The Interface of this LCD is 4 Wire SPI. We can also customize other types of interfaces and FPCs for you. The ST7789V2 driver IC provides on-chip storage and power system. If your products need to work under a temperature from -20°C to 70°C, then it can meet your needs.

Polcd RoHS Color 262K Lcd Tft 2.4 Inch ST7789V2 Tft Touch Panel 0

P/N	P024C117SD
Size(inch)	2.4
Resolution	240*320

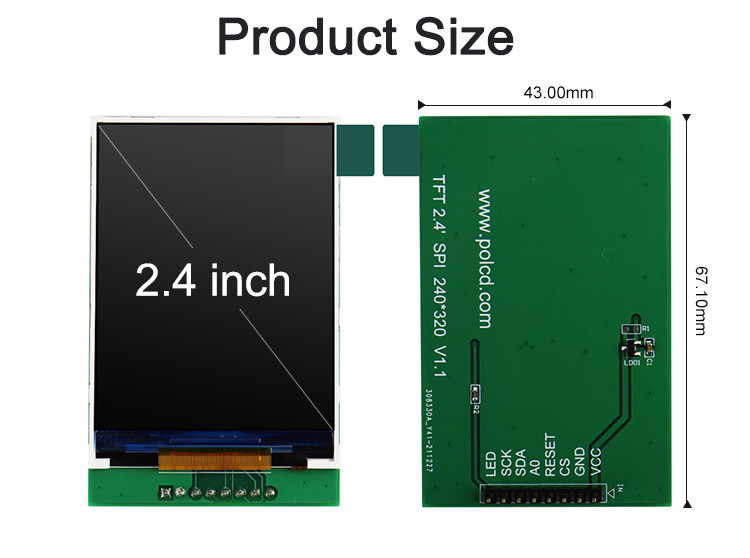

Active Area(mm)	36.72*48.96
Pixel pitch(um)	51*153
Outline Dimension(mm)	42.7260.262.30
Pixel arrangement	RGB Vertical Stripe
Display Mode	Normally White
Viewing Angle	12 0'CLOCK
Display colors	262K
Brightness (cd/m²)	260
Contrast Ratio	250:1
Interface	4 Wire SPI
Back-light	LED Side-light type
Driver Ic	ST7789V2
Operation Temperature(°C)	-20~70
Storage Temperature(°C)	-30~80
Response time(ms)	30
Pin Number	18

Hot selling P/N	Size (inch)	Resolution	Interface
N096-1608TBBIG11-H13	0.96	80*160	4 Line SPI
P114H002	1.14	135*240	4 Wire SPI
N133-2424TCBIG01-H12	1.33	240*240	4 Wire SPI
P169H002-CTP	1.69	240*240	4 Line SPI
P177C011	1.77	800*480	RGB 24bit
P020H017-IPS	2	240*320	MCU 8BIT
HINK-E0213A189-A0	2.13	122*250	3 Line SPI 4 Line SPI
P022H002	2.2	240*320	4 Line SPI
P023H005-V2	2.31	320*240	8080 MCU 16bit
EO-DIS-TFT24V03	2.4	240*320	8080 MCU 8bits
P027-40-V2	2.7	960*240	RGB 8bit
P028H042	2.8	240*320	MCU 8/16bit SPI3/4-wire
P032010A	3.2	320*820	SPI+16BIT RGB
P035C013-CTP	3.5	320*480	8080 MCU 16bit
P035M048-IPS	3.5	320*480	18BIT RG
P043B018	4.3	800*480	RGB 24bit
P050B028-IPS-CTP	5	800*480	RGB 24bit
P055H018-IPS-V3	5.5	720*1280	MIPI
P070C012	7	800*480	RGB 24bit
T10150UX-V01	10.1	1024*600	RGB 24bit

FAQ

Q: Can we customize product? What cost will be included?
A: The product can be customized. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.

Q: I want make sure some information before order, where should I find the files or datasheet?
A: The easiest way is contact our sales then we will provide any files if you need quickly.

Q: What is your delivery method?
A: EXW Shenzhen by DHL/ UPS/ FedEx/ TNT and any other method you want. Or ship the goods to your forwarder in China mainland and Hong Kong.

Q: What if the goods get lost/ damaged on the way?
A: We strongly suggest to buy insurance in case of any problem. We will discuss these details with you before order.

Q: Can I pay after receiving? Can I pay during the shipping?

A: For sample order, we can pay through online store to protect your money. As for bulk order, we can accept at least 30% pay before producing, then rest before shipping. We will sign papers for this business.
