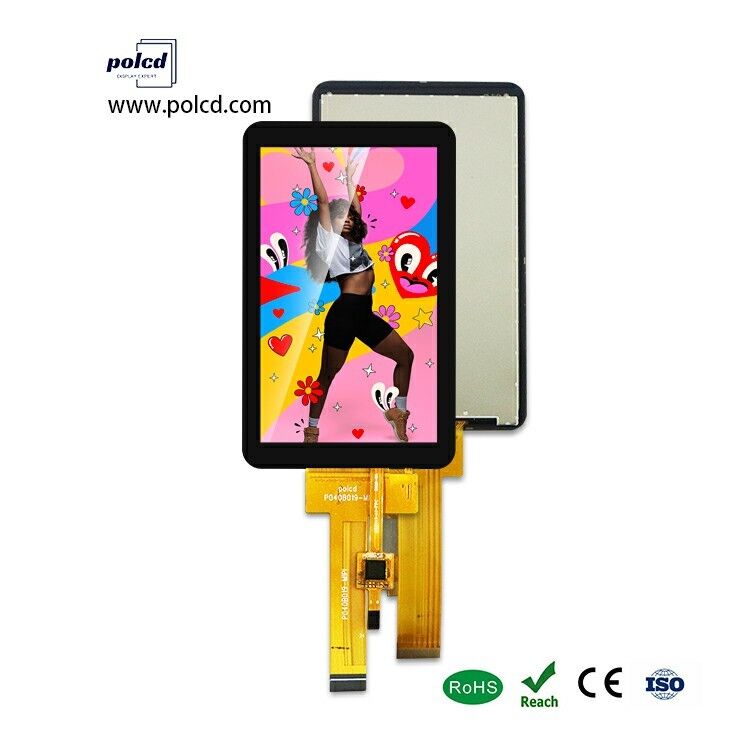

Name: Polcd 4" Touch Screen Mipi Interface ST7701P Ic Small Size 480x800 4 Inch Tft Lcd Display Module
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P040B019-MIPI-CTP-V3
Price: Negotiable USD
Availability: InStock

Home > products > TFT LCD Display >

Polcd 4" Touch Screen Mipi Interface ST7701P Ic Small Size 480x800 4 Inch Tft Lcd Display Module

4 inch TFT LCD touch screen

MIPI interface ST7701P display module

480x800 small size LCD module

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P040B019-MIPI-CTP-V3

Request A Quote

Product Details

Size (inch):

4 Inch 480x800

Brightness (cd/m²):

300

Interface:

MIPI

Driver IC:

ST7701P

PIN:

24 Pin

Viewing Direction(eye):

IPS Full View Angle

Pixel Arrangement:

RGB Vertical Stripe

Display Area:

61x103x3.85mm

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

5-8 working days

Payment Terms

T/T,L/C,Credit card,PayPal,D/A,D/P

Supply Ability

40,000 PCS per day

Polcd Resolution 135X240 Ips St7789v 1.14 Inch 262K Small Lcd Display Screen 8 Pin

Get Best Price

Video

Polcd 2.8-Inch Resolution 240*320 Spi Interface TFT Graphic LCD Display Module for Various Applications

Get Best Price

Video

Polcd Colorful 3.5 inch 320x480 Color Capacitive Touch IPS Viewing Angle TFT-LCD Panel Modules

Get Best Price

Video

Polcd 3.5 Inch TFT LCD Display 320*480 IPS Full View LCD Display Screen Modules for Alarm Clock

Get Best Price

008613714394335

anna@polcd.com

86-755-21011746

Contact Now

Product Description

Parameter:

Model	P040B019-MIPI-CTP-V3
Screen Size	3.97 inch
Number of Pixel	480RGB(H)x800(V)
Display area	51.84(H)x86.4(V)mm
Pixel pitch	0.180(H)x0.180(V)mm
Pin	24 pin

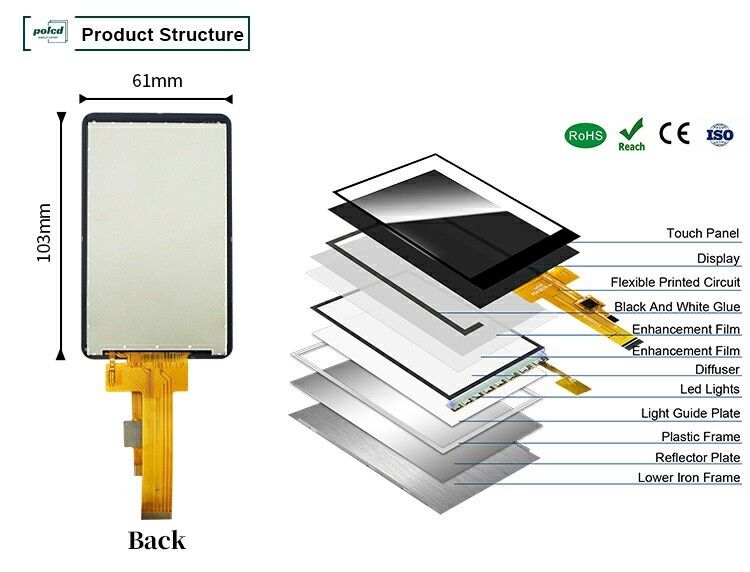

Outline Dimension	61x103x3.85mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally black
Viewing Direction(eye)	ALL
Display Color	262K
Luminance(cd/m²)	300 nit
Contrast Ratio	1200:1
Interface	MIPI
Back-light	LED Side-light type
Drive IC	ST7701P
CTP IC	GT911
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃
