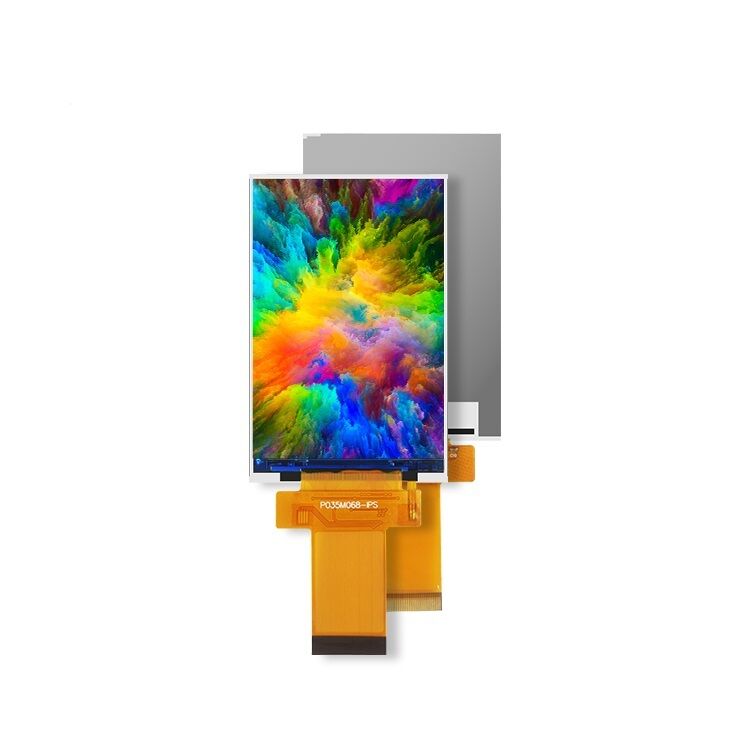

Name: Polcd 3.5 Inch TFT LCD Display 320*480 IPS Full View LCD Display Screen Modules for Alarm Clock
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P035M068-IPS
Availability: InStock

Home > Products > TFT LCD Display >

Polcd 3.5 Inch TFT LCD Display 320*480 IPS Full View LCD Display Screen Modules for Alarm Clock

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P035M068-IPS

Request A Quote

Product Details

Resolution:

3.5 Inch 320x480

Interface:

18BIT RGB

Brightness (cd/m²):

300 Nit

Viewing Direction(eye):

IPS

Driver IC:

ILI9488

Display Area:

48.96(H)x73.44(V)mm

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

1-7 working days

Payment Terms

T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram

Supply Ability

40,000 PCS per day

Polcd 3.5 Inch TFT LCD Display 320*480 IPS Full View LCD Display Screen Modules for Alarm Clock

Get Best Price

Video

Polcd Custom 3.5 inch Lcd Display Panel RGB interface 320*480 IPS Touch Screen 3.5" Tft Lcd Module

Get Best Price

Video

2.8 Inch 178° Ips Tft Capacitive Touch Screen Full View Angle Spi Interface

Get Best Price

Video

Polcd Factory 2 Inch LCD Module 240x320 260cd/m2 Brightness ST7789V drive ic TFT Display

Get Best Price

008613714394335

anna@polcd.com

86-755-21011746

Contact Now

Product Description

3.5 inch TFT LCD is a type of display screen that uses thin-film transistor (TFT) technology to provide clear and vivid images. The term "TFT" refers to the type of transistor used to control the individual pixels on the screen, which allows for faster refresh rates and better color accuracy compared to other types of LCD screens.

The term "3.5 inch" refers to the diagonal size of the screen, which measures 3.5 inches from one corner to the opposite corner. This type of screen is commonly used in small electronic devices such as digital cameras, portable media players, and handheld gaming devices.

Technical Parameters:

Model No.	P035M068-IPS
Screen Size	3.5 inch
Number of Pixel	320RGB(H)x480(V)
Pin	40 pin
Display area	48.96(H)x73.44(V)mm
Pixel pitch	51(H)x153(V)um

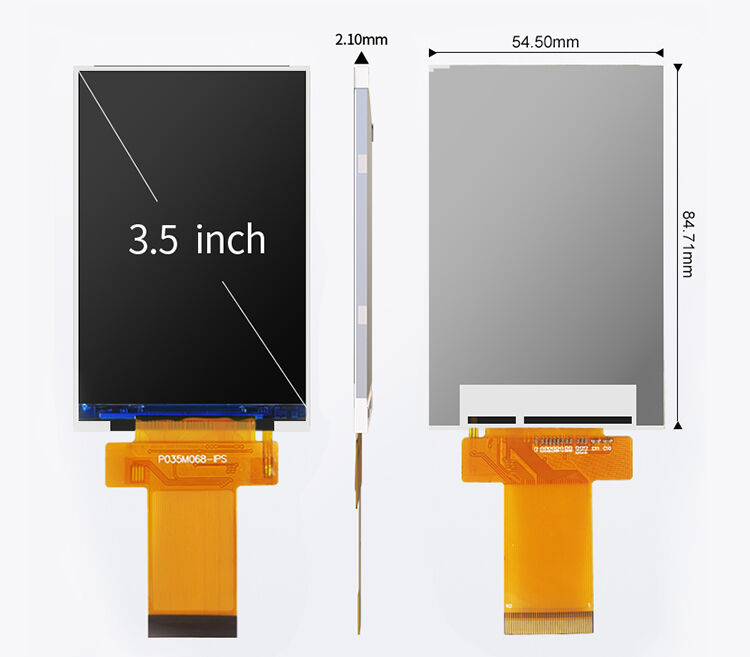

Outline Dimension	54.50x84.71x2.10mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262K
Luminance(cd/m²)	300 nit
Contrast Ratio	700:1
Interface	18BIT RGB
Back-light	LED Side-light type
Drive IC	ILI9488

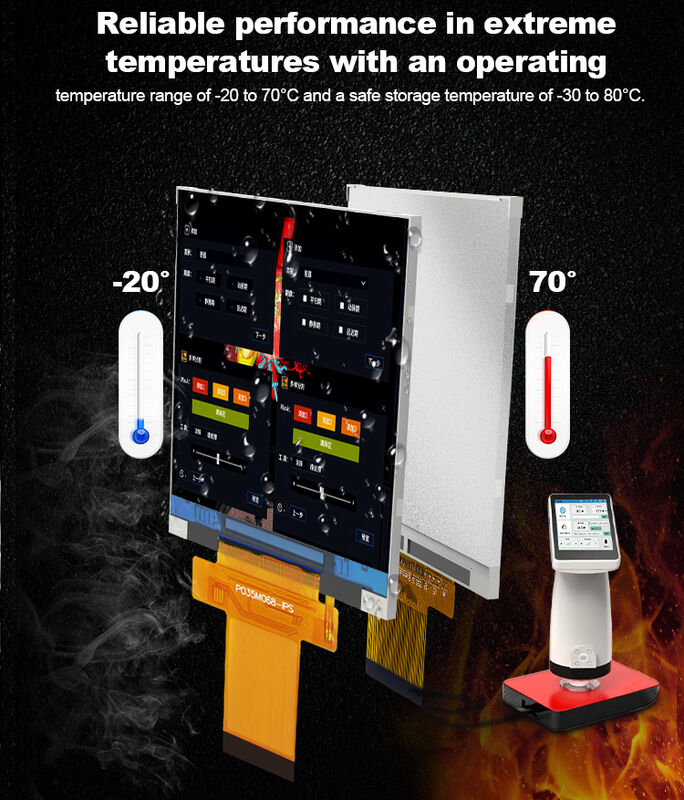

Operation Temperature	-20~70 ℃
Storage Temperature	-30~80 ℃

Polcd 3.5 Inch TFT LCD Display 320*480 IPS Full View LCD Display Screen Modules for Alarm Clock 0
