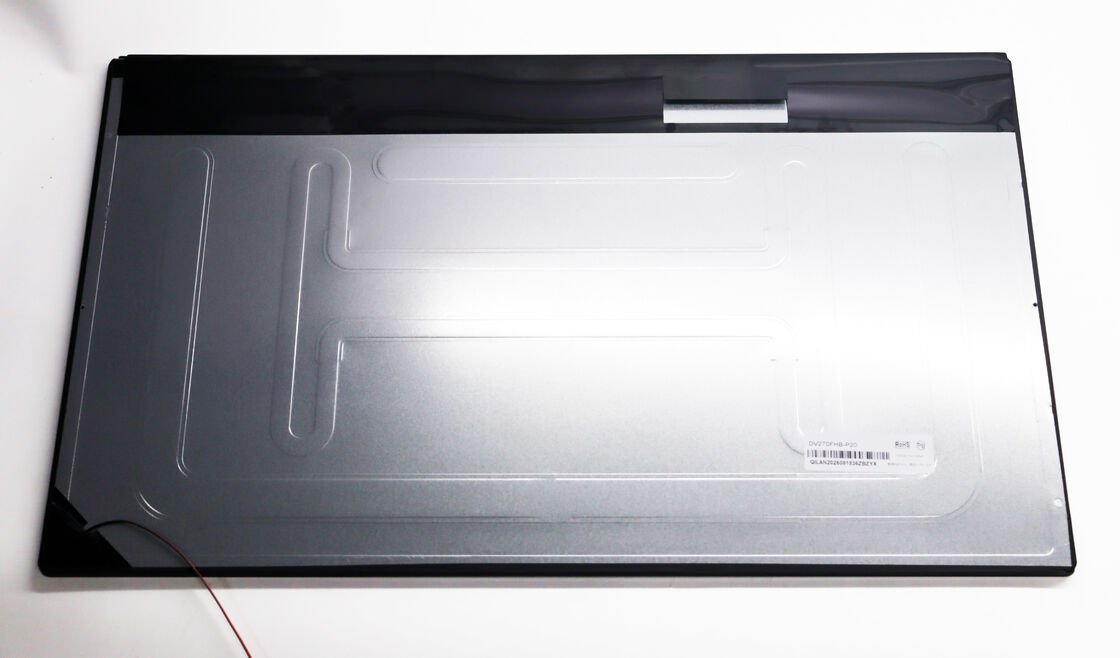

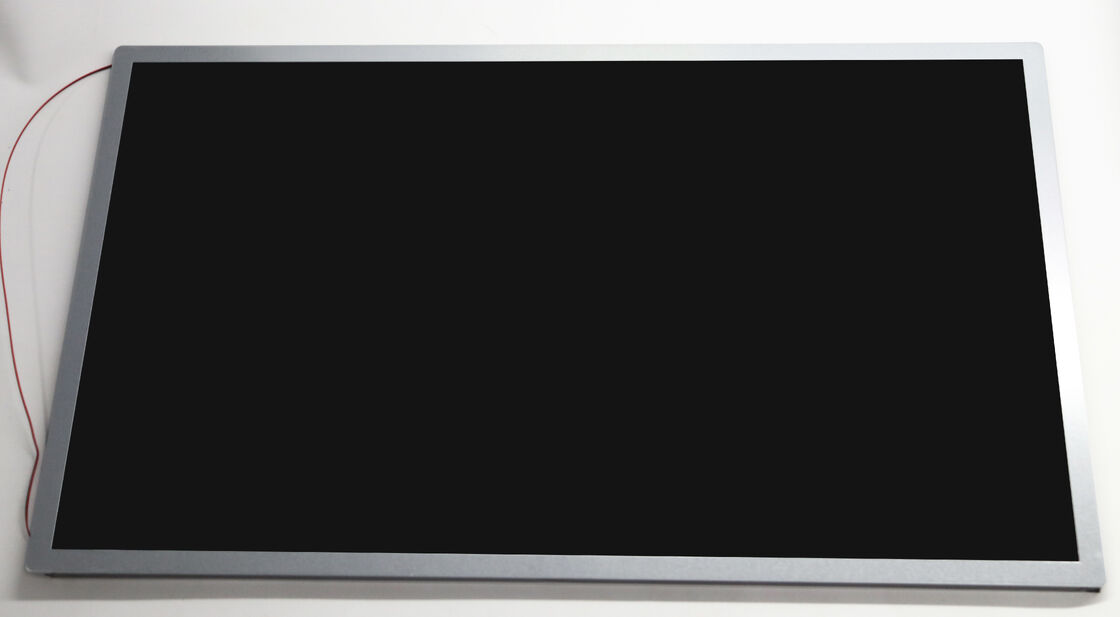

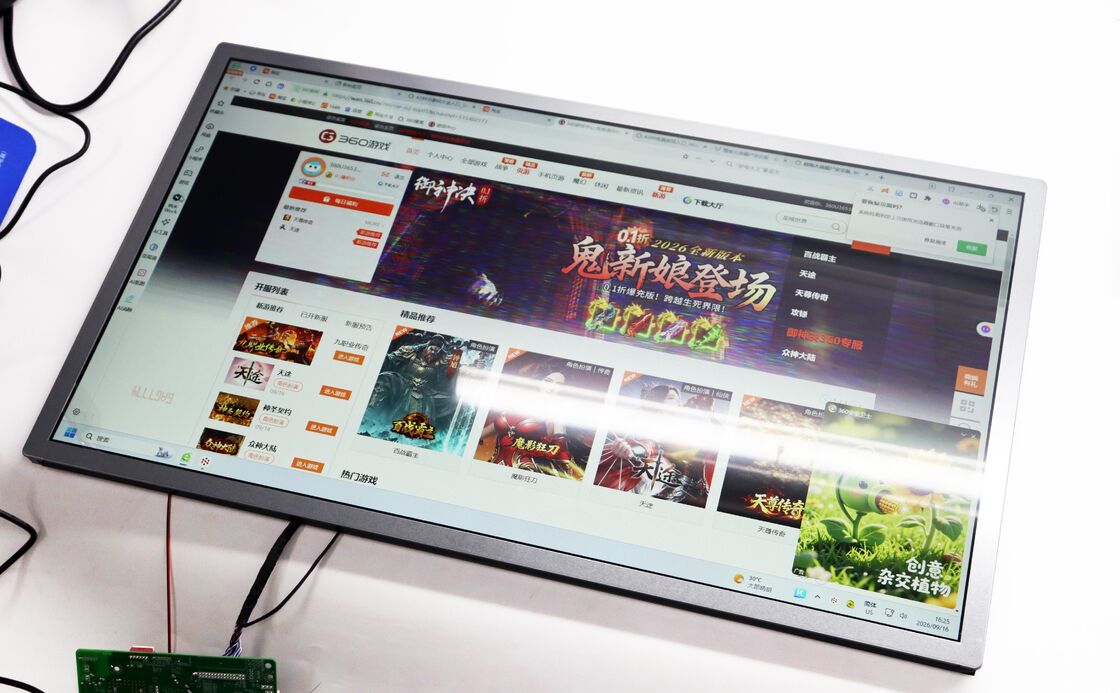

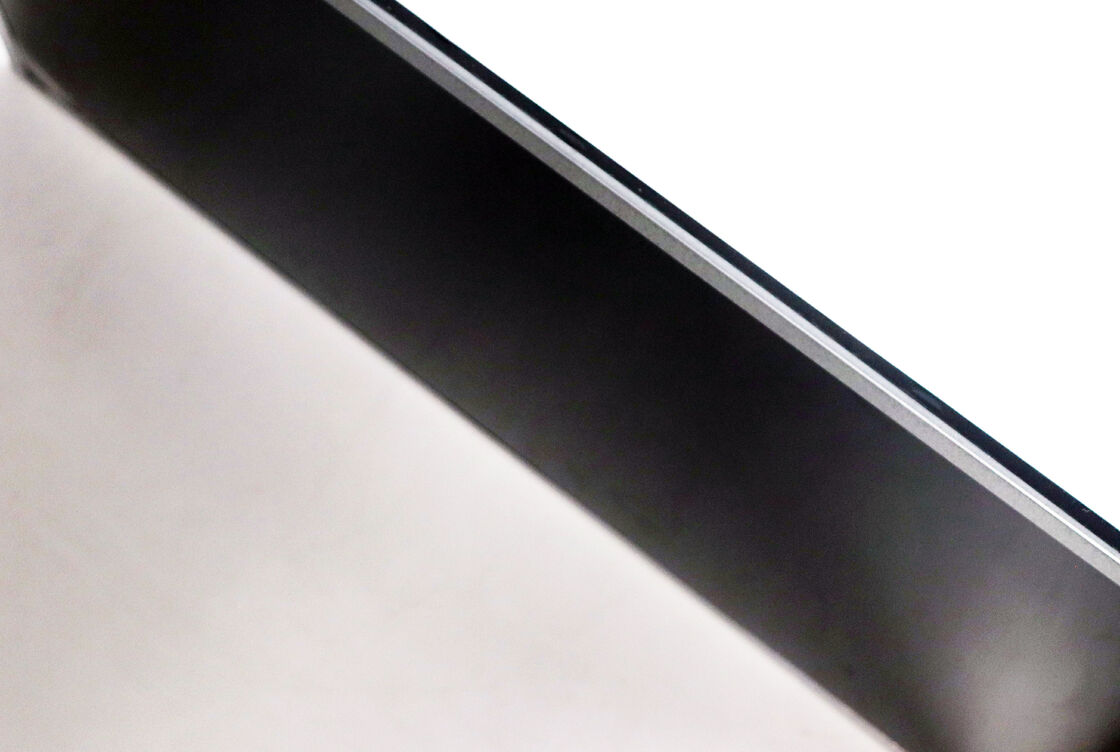

Name: Wholesale Original 27 Inch Lcd Screen DV270FHB-P20 Resolution 1920x1080 Brightness LVDS Interface LCD Module
Brand: Shenzhen P&O Technology Co., Ltd
SKU: DV270FHB-P20
Price: Negotiable USD
Availability: InStock

Home > products > HD TFT Display >

Wholesale Original 27 Inch Lcd Screen DV270FHB-P20 Resolution 1920x1080 Brightness LVDS Interface LCD Module

Place of Origin:

Shenzhen, China

Brand Name:

BOE

Certification:

RoHS

Model Number:

DV270FHB-P20

Request A Quote

Product Details

Size (inch):

27 Inch

Resolution:

1920x1080

Display Colors:

16.7M

Viewing Angle:

89/89/89/89°IPS

Surface Treatment:

Haze 25%, 3H

Active Area:

597.888(H)x336.312(V) Mm

Interface:

LVDS

Dimensional Outline:

607.048(H)x346.642(V)x1.32(Depth) Mm

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

50 cm * 40 cm * 16 cm and above

Delivery Time

5-8 working days

Payment Terms

T/T,L/C,Credit card,PayPal,D/A,D/P

anna@polcd.com

86-755-21011746

Contact Now

Product Description

Parameter:

Product name:	27 inch Color TFT LCD Module
Model:	DV270FHB-P20
Number of pixels	1920(H)x1080 (V)
Interface	LVDS
Display Colors	16.7M
Dimensional outline	607.048(H)x346.642(V)x1.32(Depth) mm
Weight	656.5g
Active area	597.888(H)x336.312(V) mm
Pixel pitch	0.3114 (H)x0.3114(V) mm
Pixel arrangement	RGB Vertical stripe
Display mode	Normally Black
Possible Display Type	Landscape and Portrait Enable
Open Cell Transmittance	5.1 (typ.)%
Power Consumption	3.2 W
Surface Treatment	Haze 25%, 3H
Viewing angle:	89/89/89/89°IPS
Storage conditions:	Temperature: 18°C–24°C; Humidity: 50%–70% RH

Features

1. LVDS Interface with 2 pixel / clock

2. 8-bit (6-bit+FRC) color depth, display 16.7M colors

3. Color Gamut 72%@NTSC(CIE 1931)

4. High luminance and contrast ratio, low reflection and wide viewing angle

5. DE (Data Enable) only

6. RoHS/Halogen Free

7. Gamma Correction

8. Reverse type

Wholesale Original 27 Inch Lcd Screen DV270FHB-P20 Resolution 1920x1080 Brightness LVDS Interface LCD Module
