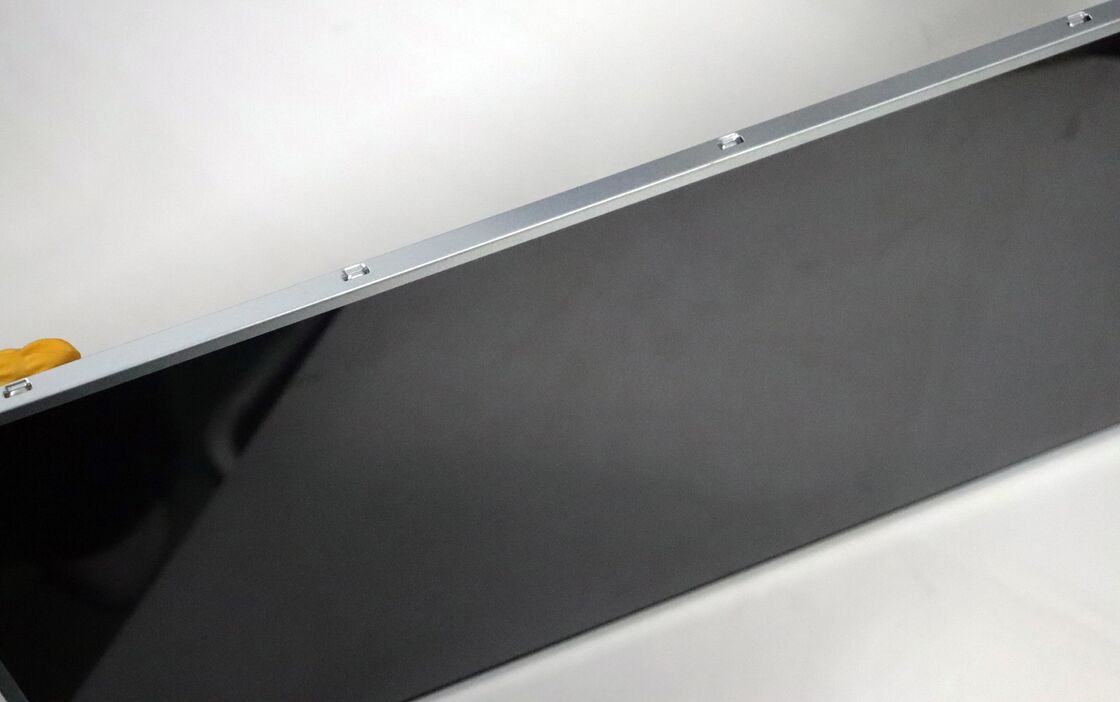

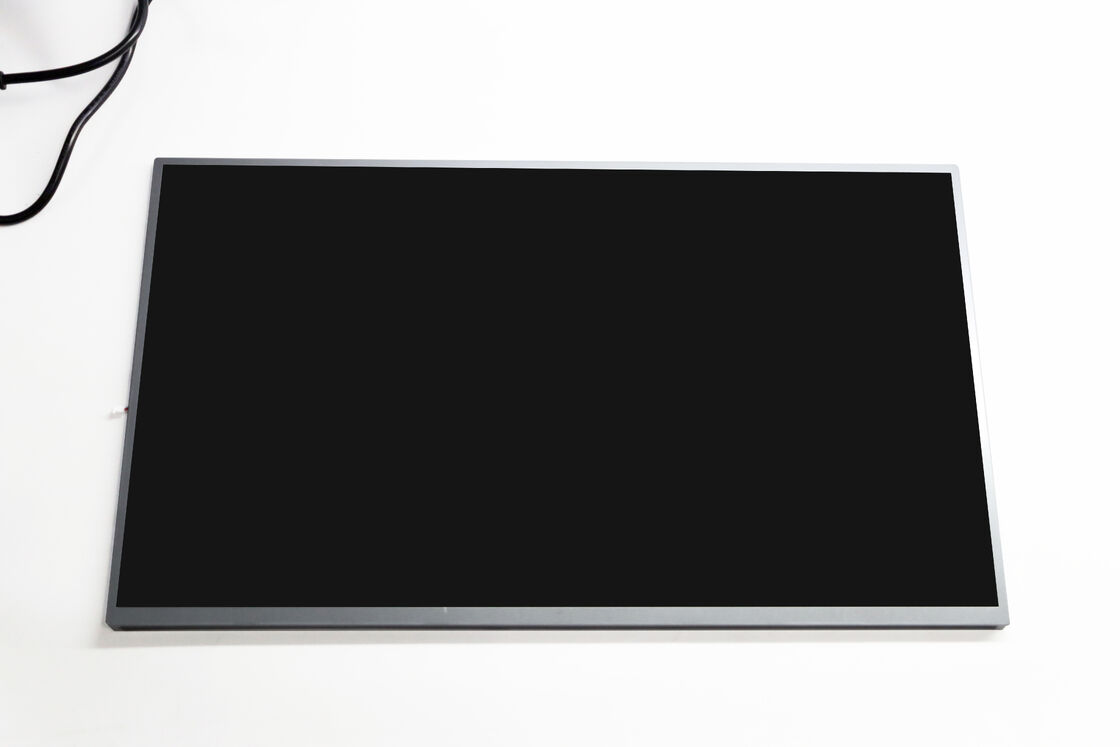

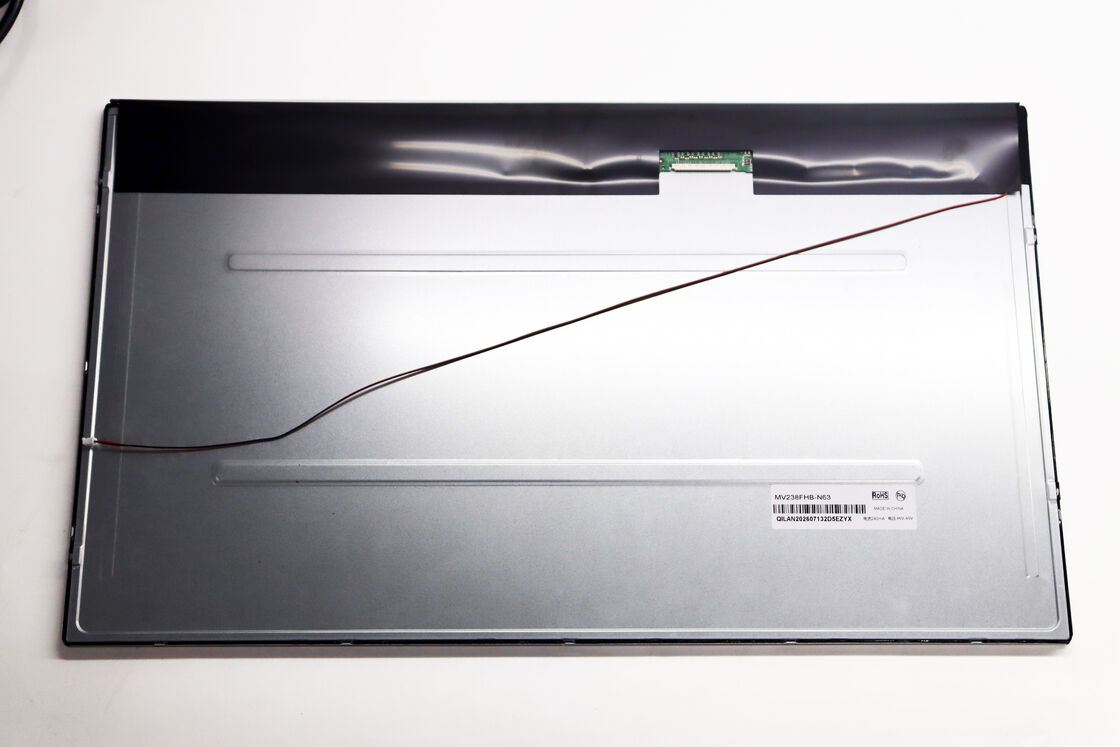

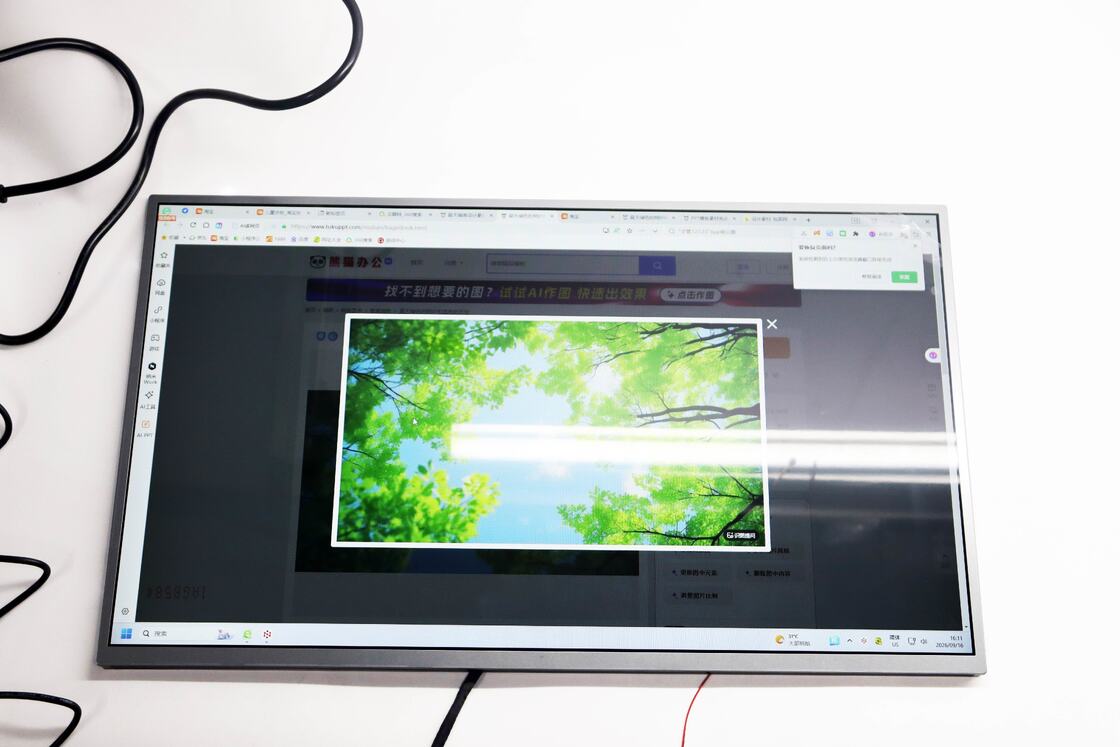

Name: 23.8'' Desktop Monitor MV238FHB-N63 LCD Screen 1920x1080 Brightness 300 Nits Lvds Interface IPS LCD Display Panel
Brand: Shenzhen P&O Technology Co., Ltd
SKU: MV238FHB-N63
Price: Negotiable USD
Availability: InStock

Home > products > HD TFT Display >

23.8'' Desktop Monitor MV238FHB-N63 LCD Screen 1920x1080 Brightness 300 Nits Lvds Interface IPS LCD Display Panel

Place of Origin:

Shenzhen, China

Brand Name:

BOE

Certification:

RoHS

Model Number:

MV238FHB-N63

Request A Quote

Product Details

Size (inch):

23.8 Inch

Resolution:

1920x1080

Display Colors:

16.7M

Active Area:

527.04x296.46mm

Brightness (cd/㎡):

250-300 Nit

Interface:

LVDS

Dimensional Outline:

543.08(H)x316.72(V)x10.2(Depth) Mm

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

50 cm * 40 cm * 16 cm and above

Delivery Time

5-8 working days

Payment Terms

T/T,L/C,Credit card,PayPal,D/A,D/P

anna@polcd.com

86-755-21011746

Contact Now

Product Description

Parameter:

Product name:	23.8 inch TFT LCD Module
Model:	MV238FHB-N63
Number of pixels	1920(H)x1080 (V)
Interface	LVDS
Active area	527.04x296.46mm
Display Colors	16.7M
BLU Brightncs	250-300nit
Dimensional outline	543.08(H)x316.72(V)x10.2(Depth) mm
Back-light	1-LED Lighting Bar type
Pixel pitch	0.2745(H)x0.2745(V) mm
Pixel arrangement	RGB Vertical stripe
Display mode	Transmissive Mode, Normally Black
Surface Treatment	SR16, 3H hard coating, Haze : 25
Viewing angle:	89/89/89/89°IPS
Storage conditions:	Temperature: 18°C–24°C; Humidity: 50%–70% RH

Features

1. LVDS Interface with 2 pixel / clock

2. 6-bit (Hi-FRC) color depth, display 16.7M colors

3. Color Gamut 72%@NTSC(CIE 1931)

4. High luminance and contrast ratio, low reflection and wide viewing angle

5. DE (Data Enable) only

6. RoHS/Halogen Free

7. Gamma Correction

8. Reverse type

Application

1. Desktop Type of PC & Workstation Use

2. Slim-Size Display for Stand-alone Monitor

3. Display Terminals for Control System

4. Monitors for Process Controller
