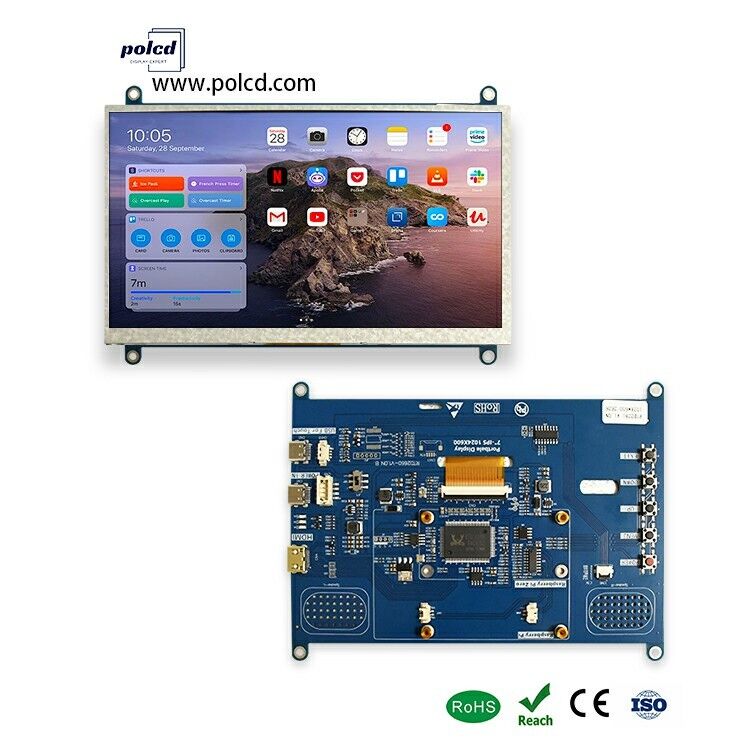

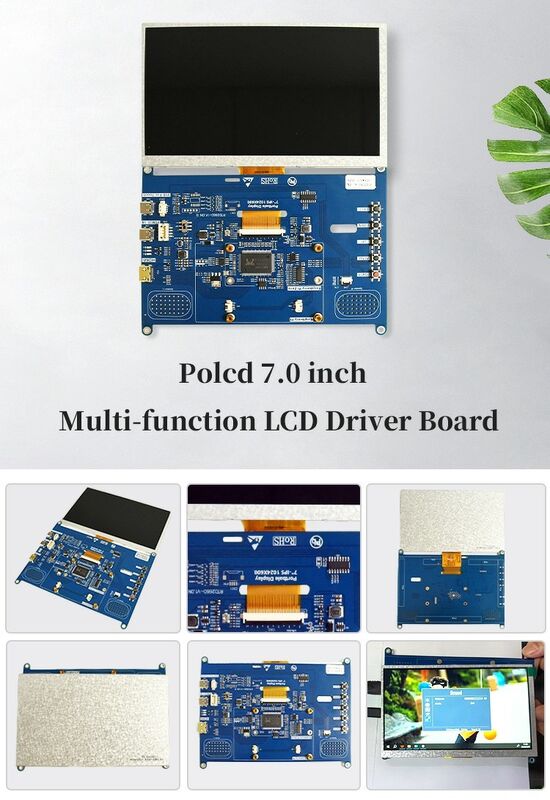

Name: Polcd 7 Inch Multi-function Universal LCD Driver Board Mini H-D-M-I Controller Board for 1024x600 TFT LCD Display
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P070A1001
Availability: InStock

Home > Products > Serial Port Screen >

Polcd 7 Inch Multi-function Universal LCD Driver Board Mini H-D-M-I Controller Board for 1024x600 TFT LCD Display

7 inch universal LCD driver board

Mini HDMI controller board for TFT LCD

1024x600 LCD display driver board

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P070A1001

Request A Quote

Product Details

Main Chipset:

RTD2281CL

Resolution:

800x480 / 1024x600

Luminance(cd/m2):

350-1000 Nit

Audio Output:

Analog Audio Signal Input And Speaker Output

Standard Interface:

USB, MINI H-D-M-I

Touch Support:

Capacitive Touch / Resistance Touch Or No Touch

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

1~7 working days

Payment Terms

L/C,Credit card,PayPal,D/P,D/A,T/T,Western Union

Supply Ability

40,000 PCS per day

Polcd RTD2281 LCD Driver Board 5 4.3 Inch HDM-I 800x480 Touch Screen TFT Display Module for Raspberry Pi

Get Best Price

Video

Polcd 4.3" 5" Universal LCD Display Driver Control Board 40-pin DIY Complete Kit Mini Full-HD Display Driver Board

Get Best Price

Video

Polcd RTD2281 Multi-function Raspberry Pi Display Screen Universal LCD Driver Board 4.3 inch 5 Inch H-DMI USB Controller Board

Get Best Price

Video

Polcd 4.3 5 Inch Universal LCD Driver Board HD-MI USB Controller Board RTD2281 for TFT LCD Display Module

Get Best Price

008613714394335

anna@polcd.com

86-755-21011746

Contact Now

Product Description

Product name	7 inch Multi-function Universal LCD Driver Board
Model	P070A1001
Main Chipset	RTD2281CL
Resolution	800x480 / 1024x600
Luminance(cd/m2)	350-1000 nit
Video Input	PC-RGB, HD-MI:Up to 1920*1080@60HZ
Operating Speed	155MHz
Audio Output	Analog audio signal input and speaker output
Back-light	LED Side-light type
Touch Support	Capacitive Touch / Resistance Touch or No Touch
Key Functions	Menu, Up, Down, Exit, Power
power to panel	3.3V
standard interface	USB, MINI H-D-M-I
Relative humidity	≤80%
Storage temperature	-20~+70 ℃
Operation temperature	-10~+60 ℃

Technical Highlights

Main Chipset: RTD2281CL

Video Input: Mini HD-MI (Supports up to 1080P signal input)

Display Support: Optimized for 7-inch 50-Pin RGB interface LCD

Audio Output: Built-in speaker interface for integrated sound solutions

Touch Interface: USB touch support for capacitive panels

Versatile Application Scenarios

Maker & DIY Projects: Custom portable monitors, gaming consoles, and secondary PC displays.

Industrial HMI: Equipment monitoring panels and embedded control systems.

Smart Home & IoT: Interactive wall panels, security system monitors, and smart appliances.

Automotive & Medical: In-car entertainment displays and portable medical diagnostic screens.

Polcd 7 Inch Multi-function Universal LCD Driver Board Mini H-D-M-I Controller Board for 1024x600 TFT LCD Display 0
