2.8 Inch 178° Ips Tft Capacitive Touch Screen Full View Angle Spi Interface

2.8 Inch 178° Ips Tft Capacitive Touch Screen Full View Angle Spi Interface

2.8 inch tft capacitive touch screen

spi tft capacitive touch screen

Place of Origin:

Shenzhen, China

Brand Name:



RoHS, ISO9001

Model Number:


Contact Us

Request A Quote
Product Details
2.8 Inch 240x320
4 Wire SPI
Driver IC:
Brightness (cd/m²):
300 Nit
Viewing Angle:
IPS Full View Angle
Display Area:
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Please contact us for latest price
Packaging Details
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Delivery Time
1-7 working days
Payment Terms
T/T, L/C, Credit card, PayPal, D/A, D/P, Western Union, MoneyGram
Supply Ability
25,000 PCS per day
Product Description

We are the manufacturer, can be continuous supply for at least 20 years !!
>>>> NO MOQ
>>>> Free Sample
>>>> Fast Delivery
>>>> Any information can consult us.

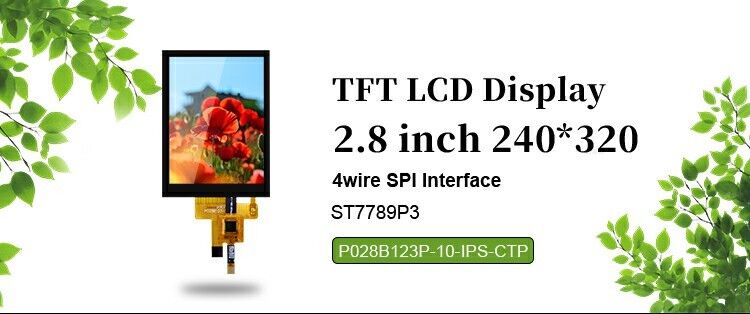

Model P028B123-10-IPS-CTP
Screen Size 2.8 inch Diagonal
Number of Pixel 240RGB(H)x320(V)
Pin 10 pin
Display area 43.20(H)x57.60(V)mm
Pixel pitch 0.180(H)x0.180(V)mm
Outline Dimension 50.00x69.20x3.10mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Display Color 262K
Luminance(cd/m2) 300 nit
Contrast Ratio 1200:1
Interface 4wire SPI
Back-light LED Side-light type
Drive IC ST7789V
Operation Temperature -20~70 ℃
Storage Temperature -30~80 ℃

The advantages of a 2.8 inch TFT Display are as follows:
1. Good display performance: TFT LCD screens use plasma technology, which provides high-definition, high-brightness, and high-contrast display performance, making images more realistic and clear.
2. Wide viewing angle: 2.8" LCD have a wide viewing angle in both horizontal and vertical directions, ensuring that multiple observers can see a clear image from different angles.
3. Fast response time: TFT LCD have a very fast response time, which allows for quick updates of the content on the screen, making it possible to display high-speed moving images.
4. Low power consumption: TFT LCD screens have very low power consumption. Compared to other types of LCD screens, they require less power to operate, which can extend the battery life of a device.
5. Small size: 2.8-inch LCD screen is small in size and is very suitable for small devices such as portable electronic products and smartwatches.
6. High reliability: TFT LCD screens have a long service life and high stability. They are not prone to problems such as screen flickering or backlight leakage and can provide stable display performance for a long time.
Customized touch panel:
Our TFT LCD displays can be customized with capacitive or resistive touch screens, with glass or acrylic custom panels. In addition, we can also customize blue light filters to protect users' eyes from harmful blue light radiation.
The touch panel offers single and multi-touch options. Single-point touch only needs to respond to one touch point, while multi-touch screen needs to respond to the position and action of multiple touch points at the same time, so more advanced touch sensor technology and higher processing power are required to achieve faster response speed.

Free Service:
1. Free Connectors for Sample Order.
2. 50% Discount for Tooling Charge.
3. Free Modification for Tooling of CTP / FPC / Backlight.
4. Free Tooling for Order ≥3000pcs Within 1 Year VIP.
5. Free Tooling for FPC.
6. Free Samples for Standard Products.
7. Free Testing Board for New Projects.

8. Half Tooling Fee for Customizing Backlight / CTP.
