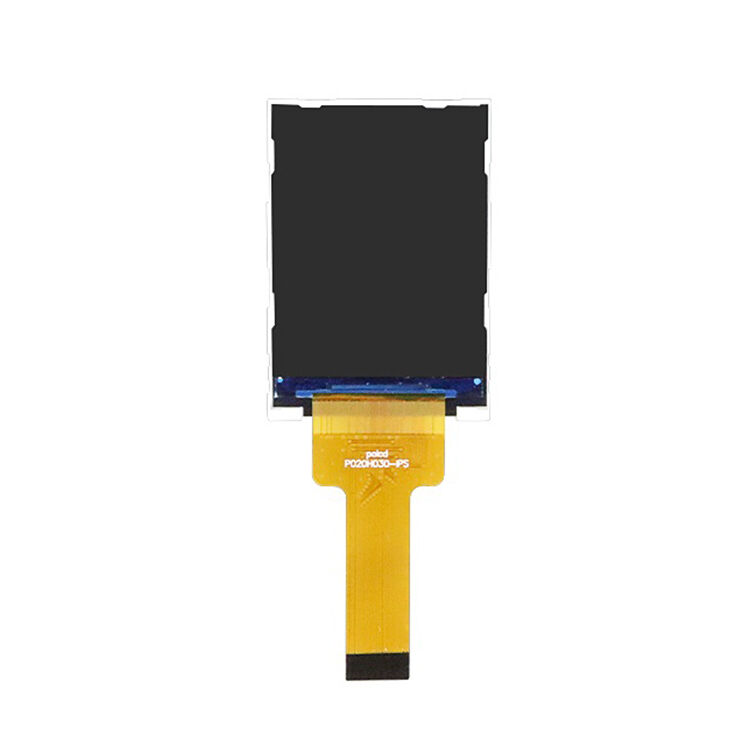

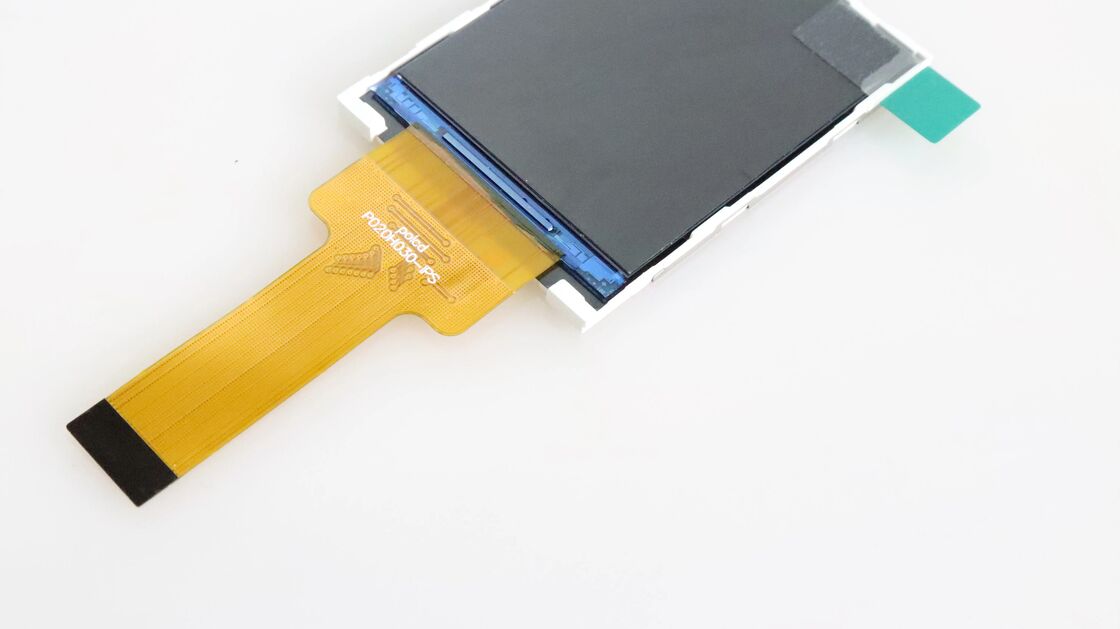

Name: Polcd 2 inch 240*320 IPS Screen Transmissive ST7789V 300 nit 20 pin MCU interface TFT LCD Module Display
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P020H030-IPS
Availability: InStock

Home > Products > TFT LCD Module >

Polcd 2 inch 240*320 IPS Screen Transmissive ST7789V 300 nit 20 pin MCU interface TFT LCD Module Display

2 inch IPS TFT LCD module

ST7789V transmissive display screen

20 pin MCU interface LCD

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P020H030-IPS

Request A Quote

Product Details

Resolution:

240x320

Interface:

8 Bit MCU

Driver IC:

ST7789V

Brightness (cd/m²):

300 Nit

Viewing Angle:

IPS All Viewing Angle

Display Area:

30.60(H)x40.80(V)mm

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

1-7 working days

Payment Terms

T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram

Supply Ability

40,000 PCS per day

anna@polcd.com

86-755-21011746

Contact Now

Product Description

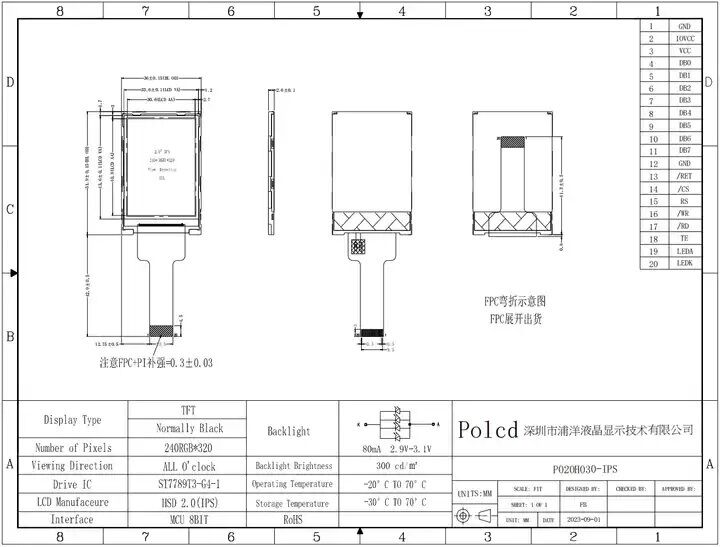

Parameter:

Model	P020H030-IPS
Screen Size	2.0 inch
Number of Pixel	240RGB(H)x320(V)
Display area	30.60(H)x40.80(V)mm
Pixel pitch	0.0425(H)x0.1275(V)mm
Outline Dimension	36.00x51.90x2.55mm
Pixel arrangement	RGB Vertical Stripe
Pins	20 Pins
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262K
Luminance(cd/m2)	300 nit
Contrast Ratio	800:1
Surface treatment	--
Interface	8 bit MCU
Back-light	LED Side-light type
Drive IC	ST7789V
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

Features

8Bit MCU interface.

Applications

1. MPOS Device.

2. Personal Navigation Device.

3. Other devices which require high quality displays.

Polcd 2 inch 240*320 IPS Screen Transmissive ST7789V 300 nit 20 pin MCU interface TFT LCD Module Display 0
