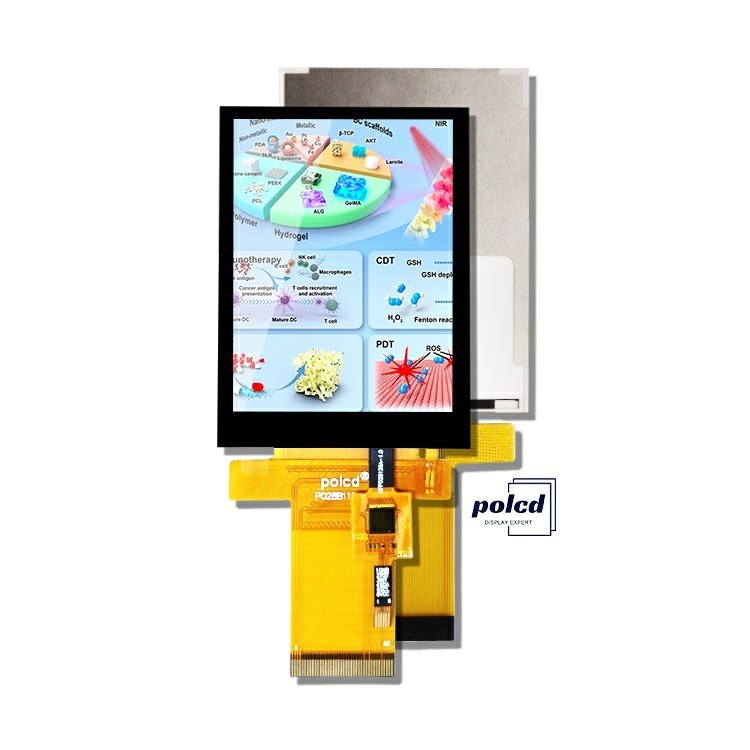

Polcd 2.8 Inch 480x640 Resolution IPS Glass TFT LCD Display Module with RGB Interface Type LCM

Polcd 2.8 Inch 480x640 Resolution IPS Glass TFT LCD Display Module with RGB Interface Type LCM

2.8 inch IPS TFT LCD display

480x640 resolution RGB LCD module

IPS glass TFT display with LCM

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P028B119-IPS-CTP

Contact Us

Request A Quote
Polcd 2.8 Inch 480x640 Resolution IPS Glass TFT LCD Display Module with RGB Interface Type LCM
Polcd 2.8 Inch 480x640 Resolution IPS Glass TFT LCD Display Module with RGB Interface Type LCM Polcd 2.8 Inch 480x640 Resolution IPS Glass TFT LCD Display Module with RGB Interface Type LCM Polcd 2.8 Inch 480x640 Resolution IPS Glass TFT LCD Display Module with RGB Interface Type LCM Polcd 2.8 Inch 480x640 Resolution IPS Glass TFT LCD Display Module with RGB Interface Type LCM
Product Details
Screen Size:
2.8 Inch
Resolution:
480RGB(H)x640(V)
Brightness (cd/m²):
300 Nit
Interface:
RGB 24bit
Driver Ic:
ST7701S
Display Area:
43.20(H)x57.60(V)
Viewing Direction(eye):
ALL
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Delivery Time
1~7 working days
Payment Terms
T/T,L/C,Credit card,PayPal,D/P,D/A,Western Union,MoneyGram
Supply Ability
40,000 PCS per day
RELATED PRODUCTS
Good price Polcd 2.3 Inch TFT LCD 480*360 ST7701S RGB Interface 40 pin 310nit brightness LCM Display online Video

Polcd 2.3 Inch TFT LCD 480*360 ST7701S RGB Interface 40 pin 310nit brightness LCM Display

Get Best Price
Good price Polcd 2.8 Inch 480x640 Resolution IPS Glass TFT LCD Display Module with RGB Interface Type LCM online Video

Polcd 2.8 Inch 480x640 Resolution IPS Glass TFT LCD Display Module with RGB Interface Type LCM

Get Best Price
Good price Polcd 2.8 Inch 480*640 Resolution RGB Interface Touch Panel ST7701S LCD TFT Display Module online Video

Polcd 2.8 Inch 480*640 Resolution RGB Interface Touch Panel ST7701S LCD TFT Display Module

Get Best Price
Good price Polcd Tft RGB 2.8 Inch Industrial Controller Color Display Panel Capacitive Touch Screen IPS LCD Module online Video

Polcd Tft RGB 2.8 Inch Industrial Controller Color Display Panel Capacitive Touch Screen IPS LCD Module

Get Best Price
Contact Us
00-86-13714394335
anna@polcd.com
86-755-21011746
Contact Now
Product Description


TFT Display Description:

Equipped with Full viewing angle, RGB interface, and brightness of 300 nit, this 2.8-inch TFT LCD display delivers a high-quality display suitable for various applications, especially in low-light environments.


Parameter:

Model P028B119-IPS-CTP
Screen Size 2.8 inch
Number of Pixel 480RGB(H)x640(V)
Pin 40 pin
Display area 43.20(H)x57.60(V)mm
Pixel pitch 0.09(H)x0.09(V)mm

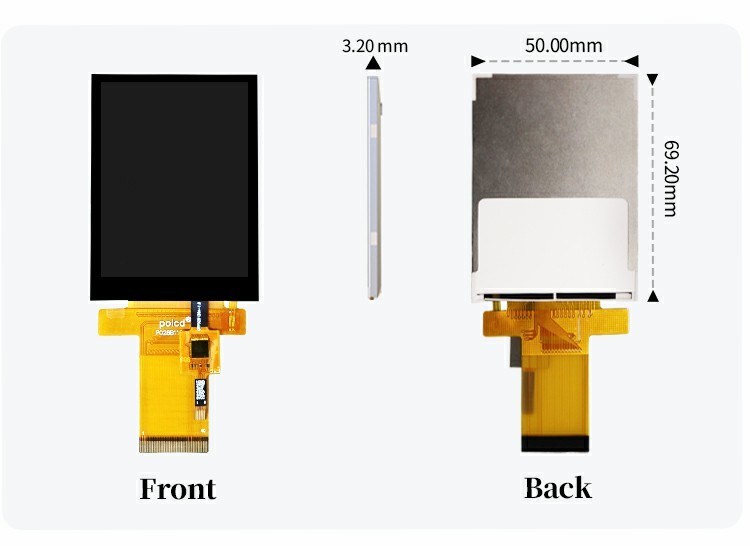

Outline Dimension 50.00x69.20x3.20mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Display Color 262K
Luminance(cd/m2) 300 nit
Contrast Ratio 1000:1
Interface RGB 24bit
Back-light LED Side-light type
LCM IC ST7701S
CTP IC GT911
Operation Temperature -20~70
Storage Temperature -30~80

Polcd 2.8 Inch 480x640 Resolution IPS Glass TFT LCD Display Module with RGB Interface Type LCM 0
