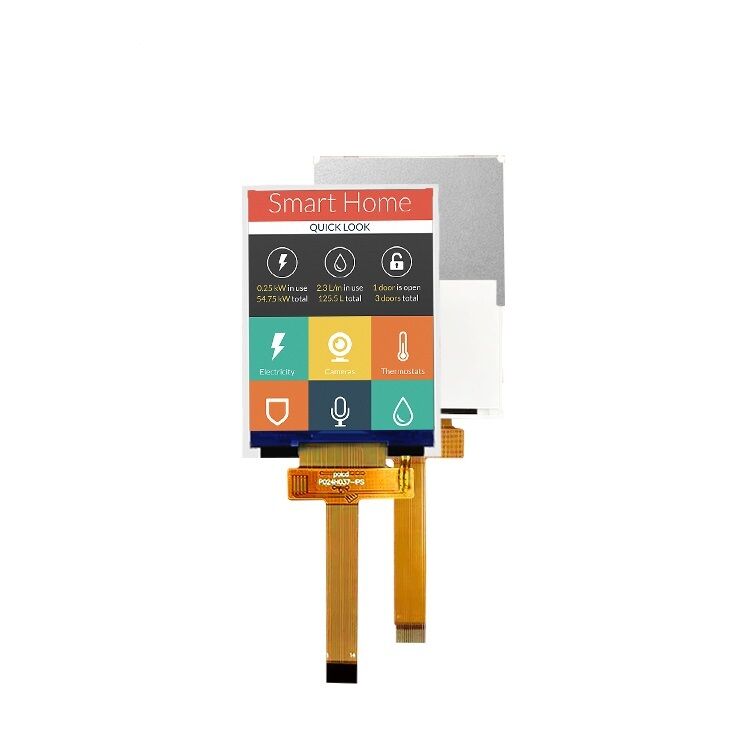

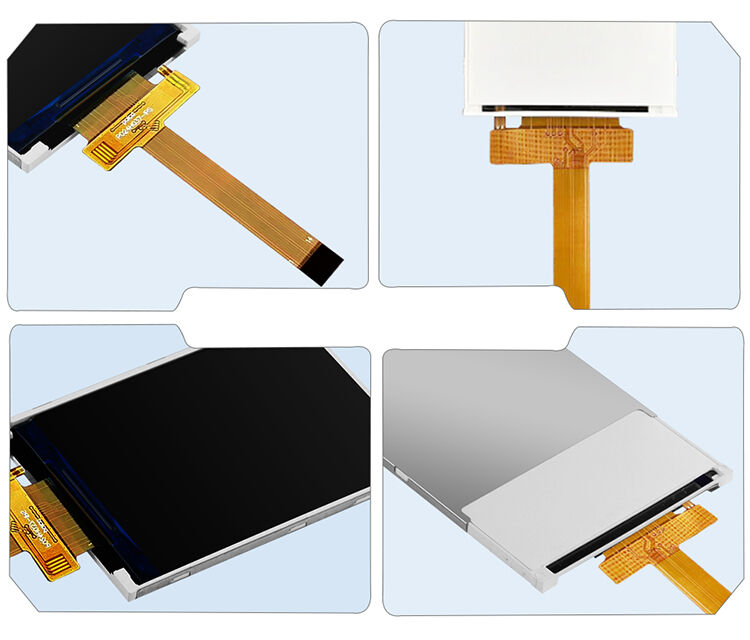

Polcd 2.4" TFT SPI 240*320 RGB Color 14 Pin ST7789V Small IPS Full Viewing Angle 2.4 inch TFT LCD Display

Polcd 2.4" TFT SPI 240*320 RGB Color 14 Pin ST7789V Small IPS Full Viewing Angle 2.4 inch TFT LCD Display

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P024H037-IPS

Contact Us

Request A Quote
Product Details
Resolution:
2.4 Inch 240x320
Interface:
4 Wire SPI
Driver IC:
ST7789V
Brightness (cd/m²):
300 Nit
Viewing Angle:
IPS All View Angle
Display Area:
36.72(H)x48.96(V)mm
PIN:
14 Pin
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Delivery Time
1-7 working days
Payment Terms
T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram
Supply Ability
40,000 PCS per day
Product Description

Parameter:

Model P024H037-IPS
Screen Size 2.4 inch
Number of Pixel 240RGB(H)x320(V)
Display area 36.72(H)x48.96(V)mm
Pixel pitch 0.153(H)x0.153(V)mm
Pins 14 Pins
Outline Dimension 42.72x60.26x2.25mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Display Color 262K
Luminance(cd/m2) 300 nit
Contrast Ratio 800:1
Interface 4W SPI
Back-light LED Side-light type
Drive IC ST7789V
Operation Temperature -20~70℃
Storage Temperature -30~80℃


2.4 inch TFT display is a thin-film transistor liquid crystal display that measures 2.4 inches diagonally. It is a popular display size for various applications, including handheld devices, digital cameras, portable gaming consoles, and other embedded systems. The display has a high resolution and contrast ratio, a wide viewing angle, and a built-in resistive touchscreen. It also supports various communication protocols, such as SPI, I2C, and UART, making it compatible with a wide range of devices. Its low power consumption and built-in power management system make it ideal for battery-powered devices. Additionally, its compact and lightweight design makes it easy to integrate into various devices.


Polcd 2.4" TFT SPI 240*320 RGB Color 14 Pin ST7789V Small IPS Full Viewing Angle 2.4 inch TFT LCD Display 0
