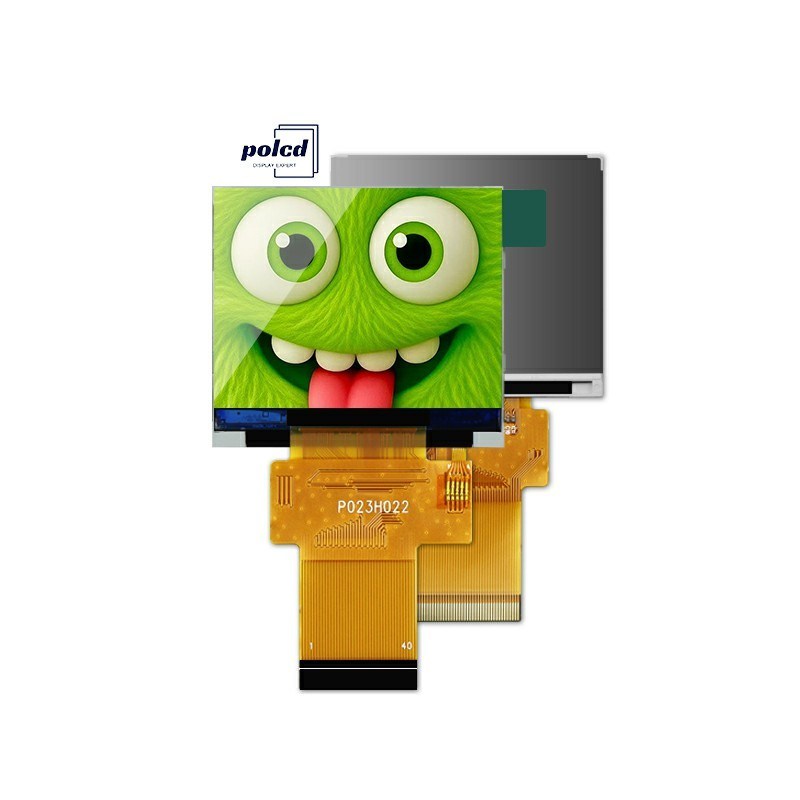

Name: Polcd 2.3 Inch 320*240 ILI9342C TFT LCD Module SPI Interface 40pin IPS Model TFT LCD Display
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P023H022
Availability: InStock

Home > Products > Medical LCD Display >

Polcd 2.3 Inch 320*240 ILI9342C TFT LCD Module SPI Interface 40pin IPS Model TFT LCD Display

2.3 inch IPS TFT LCD display

SPI interface TFT LCD module

medical LCD display with warranty

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P023H022

Request A Quote

Product Details

Size (inch):

2.31

Resolution:

320*240

Brightness (cd/m²):

300

Interface:

RGB 18bit

Driver Ic:

ILI9342C

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

1-7 working days

Payment Terms

T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram

Supply Ability

40,000 PCS per day

Polcd Custom LCD Screen 2.8" QVGA ST7789V RGB interface 2.8 inch 240x320 IPS Capacitive Touch Display Panel

Get Best Price

Polcd 2.4 inch Transmissive 240x320 brightness 260 driver ic ST7789V Interface 4 Line serial TFT LCD

Get Best Price

Video

Polcd 4.0'' Circle Panel LCD Module 720*720 ST7703 IPS View Angle MIPI interface Round TFT Display

Get Best Price

Video

Polcd OEM ODM 2.8 Inch 240*320 IPS TFT LCD Screen Module with High Visibility Display

Get Best Price

00-86-13714394335

anna@polcd.com

86-755-21011746

Contact Now

Product Description

Description:

2.31 inch TFT LCD (Thin-Film Transistor Liquid Crystal Display) refers to a small LCD display screen that measures 2.31 inches diagonally and uses thin-film transistor technology to control the liquid crystal display. It typically has a resolution of 240x320 pixels and the ability to display up to 262,144 colors. The screen may also include a capacitive touch panel for user input and interaction. This type of display technology is commonly used in various applications where a small, high-quality display with touch input is required, such as handheld devices, smartwatches, and medical devices.

Parameter:

Model	P023H022
Screen Size	2.31 inch
Number of Pixel	320RGB(H)x240(V)
Display area	46.75(H)x35.06(V)mm
Pixel pitch	0.1461(H)x0.1461(V)mm
Pins	40 pins

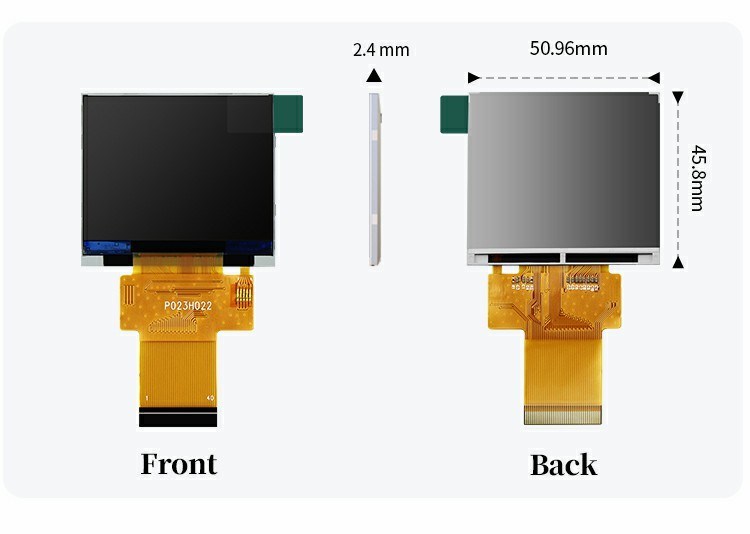

Outline Dimension	50.96x45.80x2.40mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally White
Viewing Direction(eye)	6 0'CLOCK
Display Color	262K
Luminance(cd/m2)	300 nit
Contrast Ratio	600:1
Interface	RGB 18BIT
Back-light	LED Side-light type
Drive IC	ILI9342C
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

Polcd 2.3 Inch 320*240 ILI9342C TFT LCD Module SPI Interface 40pin IPS Model TFT LCD Display 0
