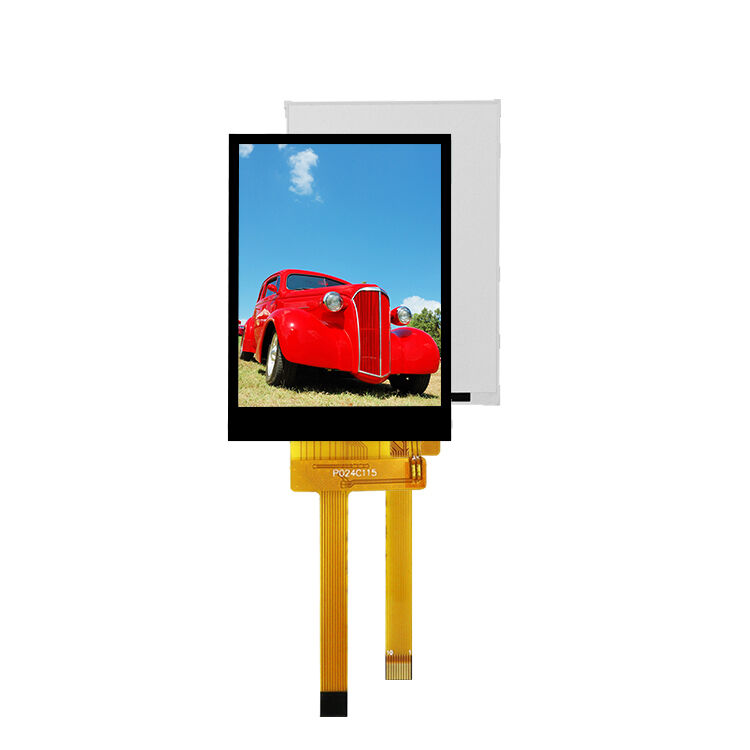

Name: Polcd Small Touch LCD Module 2.4" 240x320 LCM screen Panel 2.4 inch TFT liquid crystal display
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P024C115-CTP
Availability: InStock

Home > Products > TFT LCD Display >

Polcd Small Touch LCD Module 2.4" 240x320 LCM screen Panel 2.4 inch TFT liquid crystal display

2.4 inch TFT LCD module

small touch LCD screen panel

240x320 LCM display with warranty

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P024C115-CTP

Request A Quote

Product Details

Resolution:

2.4 Inch 240x320

Interface:

4 Wire SPI

Driver IC:

ST7789V3

Brightness (cd/m²):

260 Nit

Viewing Angle:

12 O'clock

Display Area:

36.72(H)x48.96(V)mm

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

1-7 working days

Payment Terms

T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram

Supply Ability

40,000 PCS per day

Polcd 2.4" TFT Mini Small Size 2.4 inch IPS Display Module ST7789V3 240x320 LCD Screen with Touch Panel

Get Best Price

Video

Polcd Qvga 240x320 Resolution 2.4 inch ST7789V3 Touch Screen CTP TFT LCD Display Module

Get Best Price

Video

Polcd Custom TFT LCD 0.96 ~ 10.1" LCM IPS Screen 2.4 2.8 3 3.5 4.3 5 7 inch Touch Panel TFT Display LCD Module

Get Best Price

Video

Polcd Colorful 3.5 inch 320x480 Color Capacitive Touch IPS Viewing Angle TFT-LCD Panel Modules

Get Best Price

008613714394335

anna@polcd.com

86-755-21011746

Contact Now

Product Description

Parameter:

Model	P024C115-CTP
Screen Size	2.4 inch diagonal
Number of Pixel	240RGB(H)x320(V)
Display area	36.72(H)x48.96(V)mm
Pixel pitch	51(H)x153(V)um
Pins	10 Pins
Outline Dimension	42.72x60.26x3.20mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally White
Viewing Direction(eye)	12 0'CLOCK
Gray inversion direction	--
Display Color	262K
Luminance(cd/m²)	260 nit
Contrast Ratio	250:1
Surface treatment	――
Interface	4W SPI
Back-light	LED Side-light type
Drive IC	ST7789V3
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

2.4 inch TFT display is a thin-film transistor liquid crystal display that measures 2.4 inches diagonally. It is a popular display size for various applications, including handheld devices, digital cameras, portable gaming consoles, and other embedded systems. The display has a high resolution and contrast ratio, a wide viewing angle, and a built-in resistive touchscreen. It also supports various communication protocols, such as SPI, I2C, and UART, making it compatible with a wide range of devices. Its low power consumption and built-in power management system make it ideal for battery-powered devices. Additionally, its compact and lightweight design makes it easy to integrate into various devices.

Free Service:
1. Free Connectors for Sample Order.
2. 50% Discount for Tooling Charge.
3. Free Modification for Tooling of CTP / FPC / Backlight.
4. Free Tooling for Order ≥3000pcs Within 1 Year VIP.
5. Free Tooling for FPC.
6. Free Samples for Standard Products.
7. Free Testing Board for New Projects.
8. Half Tooling Fee for Customizing Backlight / CTP.
