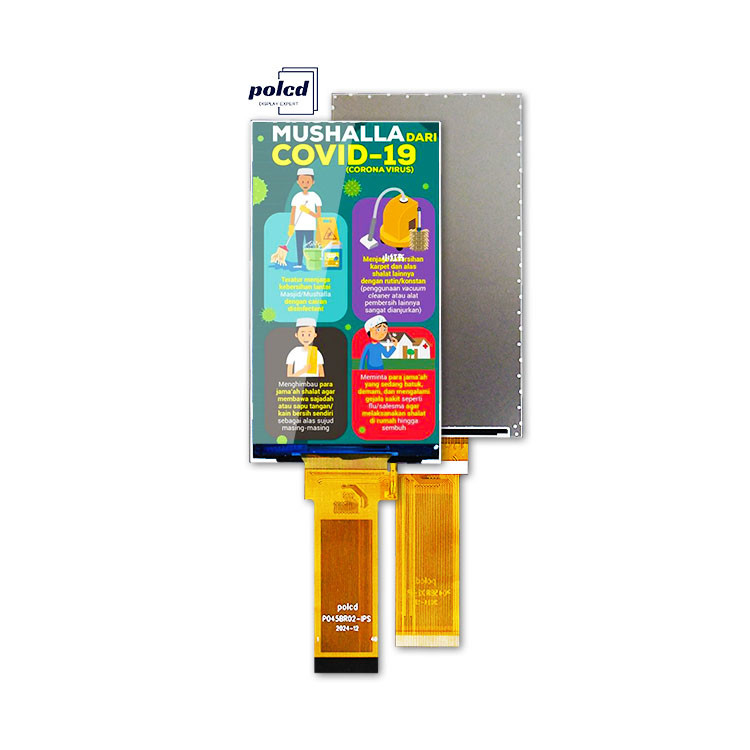

Name: Polcd Rgb Interface 4.5 Inch Color Display Panels 480*854 Resolution 40pin GC9503V Ic TFT LCD Module
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P045BR02-IPS
Availability: InStock

Home > products > TFT LCD Display >

Polcd Rgb Interface 4.5 Inch Color Display Panels 480*854 Resolution 40pin GC9503V Ic TFT LCD Module

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P045BR02-IPS

Request A Quote

Product Details

Resolution:

480x854

Interface:

RGB 24bit

LCM Driver Ic:

GC9503V

Brightness (cd/m²):

300 Nit

Viewing Angle:

IPS All View Angle

Display Area:

55.44(H)x98.64(V)mm

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

1-7 working days

Payment Terms

T/T, L/C, Credit card, PayPal, D/A, D/P, Western Union, MoneyGram

Supply Ability

25,000 PCS per day

anna@polcd.com

86-755-21011746

Contact Now

Product Description

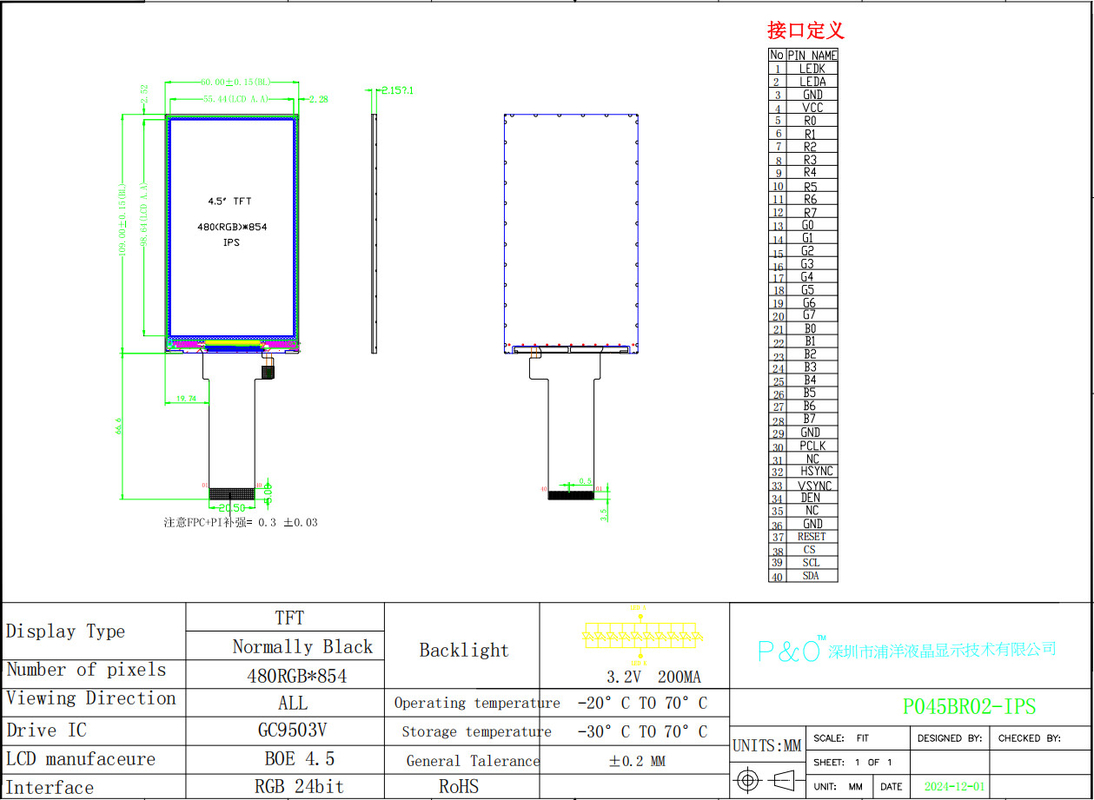

Parameter:

Model	P045BR02-IPS
Screen Size	4.5 inch
Number of Pixel	480RGB(H)x854(V)
Pin	40 pin
Display area	55.44(H)x98.64(V)mm
Pixel pitch	0.1155(H)x0.1155(V)mm

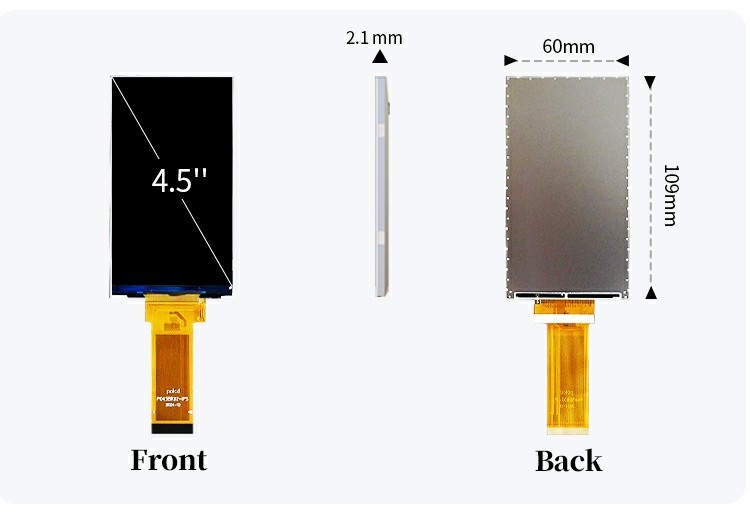

Outline Dimension	60x109x2.15mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262K
Luminance(cd/m²)	300 nit
Contrast Ratio	1200:1
Interface	RGB 24bit
Back-light	LED Side-light type
LCM IC	GC9503V
Operation Temperature	-20~70
Storage Temperature	-30~80

Polcd Rgb Interface 4.5 Inch Color Display Panels 480*854 Resolution 40pin GC9503V Ic TFT LCD Module 0
