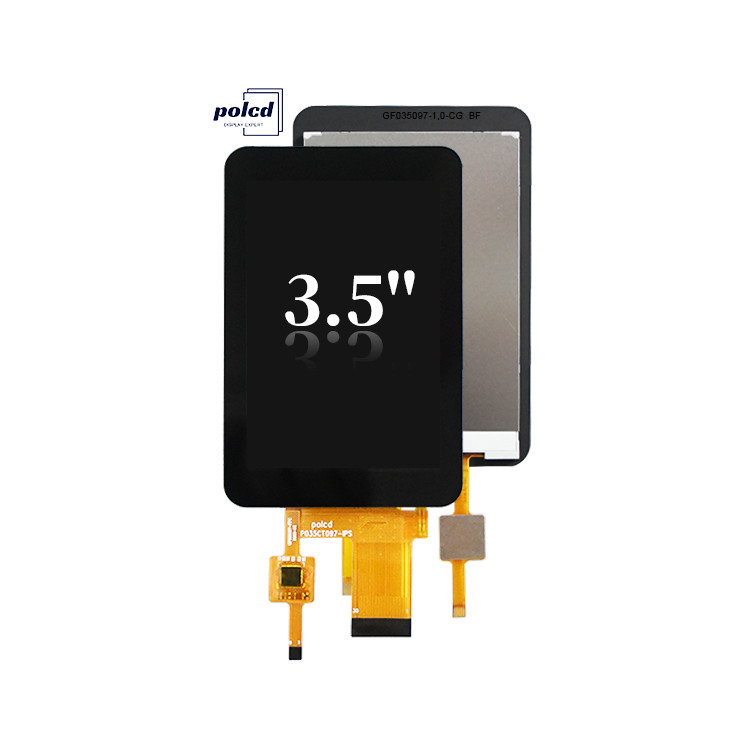

Name: Polcd CTP 320x480 Resolution 30pin 3.5 Inch TFT LCD Touch Screen Module 330 nit TN Glass LCD Display
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P035CT097-IPS-CTP
Availability: InStock

Home > products > IPS TFT LCD Display >

Polcd CTP 320x480 Resolution 30pin 3.5 Inch TFT LCD Touch Screen Module 330 nit TN Glass LCD Display

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P035CT097-IPS-CTP

Request A Quote

Product Details

Resolution:

320*480

Interface:

4Line SPI

LCM Driver Ic:

ST7796U

Brightness (cd/m²):

330 Nit

Viewing Angle:

IPS All View Angle

Display Area:

48.96(H)x73.44(V)mm

CTP Drive Ic:

GT911

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

1-7 working days

Payment Terms

T/T, L/C, Credit card, PayPal, D/A, D/P, Western Union, MoneyGram

Supply Ability

25,000 PCS per day

anna@polcd.com

86-755-21011746

Contact Now

Product Description

Parameter:

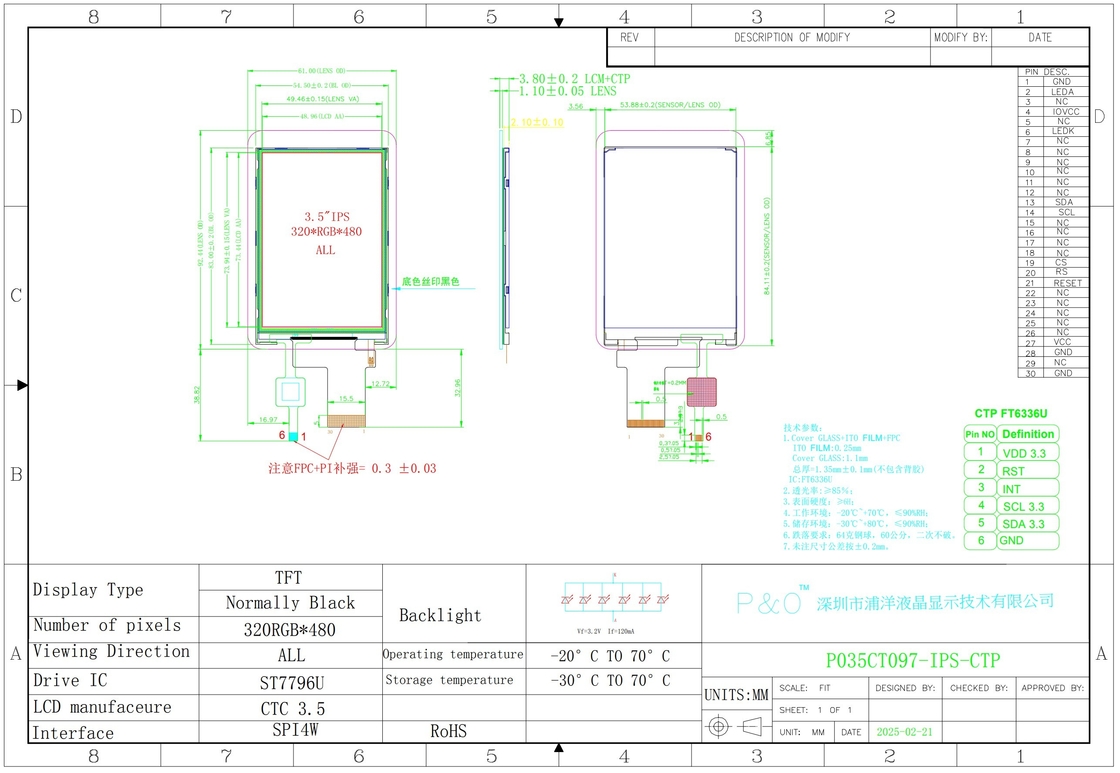

Model	P035CT097-IPS-CTP
Screen Size	3.5 inch
Number of Pixel	320RGB(H)x480(V)
Display area	48.96(H)x73.44(V)mm
Pixel pitch	0.153(H)x0.153(V)mm
Pins	30 pins

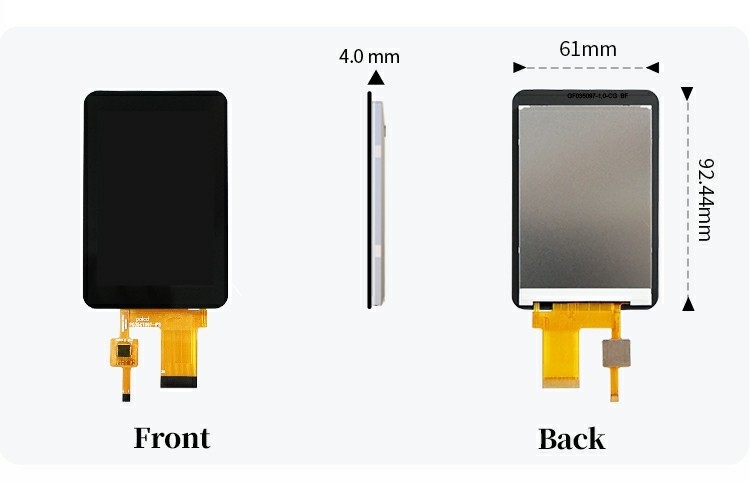

Outline Dimension	61x92.44x3.8±0.2mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262K
Luminance(cd/m2)	330 nit
Contrast Ratio	1000:1
Interface	4Line SPI
Back-light	LED Side-light type
Drive IC	ST7796U
CTP IC	GT911
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃
