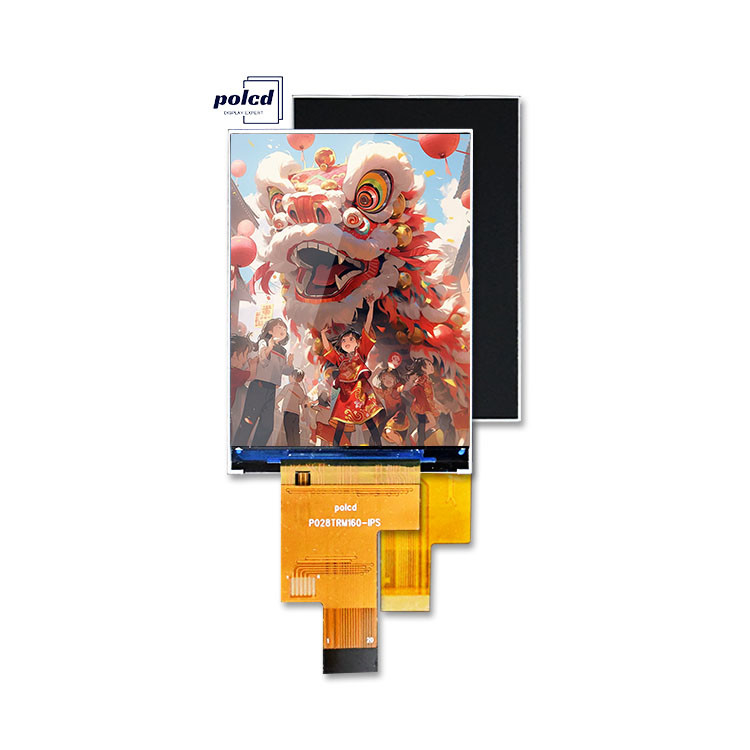

Name: Polcd 2.8" High Resolution 480*640 Lcd Screen IPS View MIPI Interface 2.8 Inch Tft Lcd Panel
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P028TRM160-IPS
Availability: InStock

Home > products > IPS TFT LCD Display >

Polcd 2.8" High Resolution 480*640 Lcd Screen IPS View MIPI Interface 2.8 Inch Tft Lcd Panel

2.8 Inch Lcd Screen

2.8 Inch Tft Lcd Panel

480*640 Lcd Screen

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P028TRM160-IPS

Request A Quote

Product Details

Resolution:

480x640

Interface:

MIPI

Driver IC:

ST7701S

Brightness (cd/m²):

300 Nit

Viewing Angle:

IPS All View Angle

Display Area:

43.20(H)x57.60(V)mm

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

1-7 working days

Payment Terms

T/T, L/C, Credit card, PayPal, D/A, D/P, Western Union, MoneyGram

Supply Ability

25,000 PCS per day

Polcd Custom 4.5" 480x854 LCD Module IPS Full Viewing Direction GC9503V ic 4.5 Inch LCD Panel TFT Display

Get Best Price

Video

Polcd 3.97" TFT LCD ST7701S Driver Ic 480x800 3.97 inch LCD Screen for Consumer Industrial

Get Best Price

Video

Polcd 3.97" High Resolution 480x800 Pixels IPS Color RGB LCD Module 3.97 Inch TFT Lcd Display

Get Best Price

Video

Polcd 3.97 Inch 4 Inch 480*800 300nit 40pin Rgb Interface All Transmissive ST7701S Tft Lcd Display Module

Get Best Price

00-86-13714394335

anna@polcd.com

86-755-21011746

Contact Now

Product Description

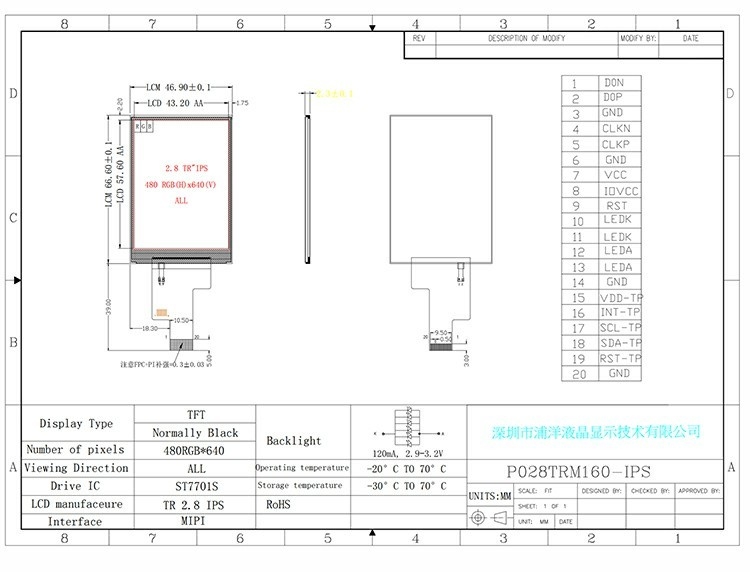

Parameter:

Model	P028TRM160-IPS
Screen Size	2.8 inch
Number of Pixel	480RGB(H)x640(V)
Display area	43.20(H)x57.60(V)
Pixel pitch	0.09(H)x0.09(V)mm
Pin	20 pins
Outline Dimension	46.9x66.6x2.30mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262K
Luminance(cd/m2)	300 nit
Contrast Ratio	1000:1
Interface	MIPI
Back-light	LED Side-light type
Drive IC	ST7701S
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃
