Name: Polcd 2.8 Inch 480x640 Resolution IPS Glass LCM LCD Module MIPI Interface TFT Display
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P028TRM160-IPS
Availability: InStock

Home > products > TFT LCD Display >

Polcd 2.8 Inch 480x640 Resolution IPS Glass LCM LCD Module MIPI Interface TFT Display

480x640 TFT LCD Display

2.8 Inch TFT LCD Display

MIPI Interface TFT LCD Display

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P028TRM160-IPS

Request A Quote

Product Details

Resolution:

480x640

Interface:

MIPI

Driver IC:

ST7701S

Brightness (cd/m²):

300 Nit

Viewing Angle:

IPS All View Angle

Display Area:

43.20(H)x57.60(V)mm

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

1-7 working days

Payment Terms

T/T, L/C, Credit card, PayPal, D/A, D/P, Western Union, MoneyGram

Supply Ability

25,000 PCS per day

Polcd Custom 5 Inch LCD Module RGB Interface 800*480 ST7265 IPS Panel TFT LCD Display

Get Best Price

Video

Polcd Custom TFT LCD 0.96 ~ 10.1" LCM IPS Screen 2.4 2.8 3 3.5 4.3 5 7 inch Touch Panel TFT Display LCD Module

Get Best Price

Video

Polcd 240x320 Led Backlit Tft Lcd Display 2.4 Inch LCM 260 Nit Brightness Lcm Panel

Get Best Price

Video

3.5inch Ips Touch Screen 320x480 Lcm Modules Ili9488 Mcu Spi Interface

Get Best Price

00-86-13714394335

anna@polcd.com

86-755-21011746

Contact Now

Product Description

Parameter:

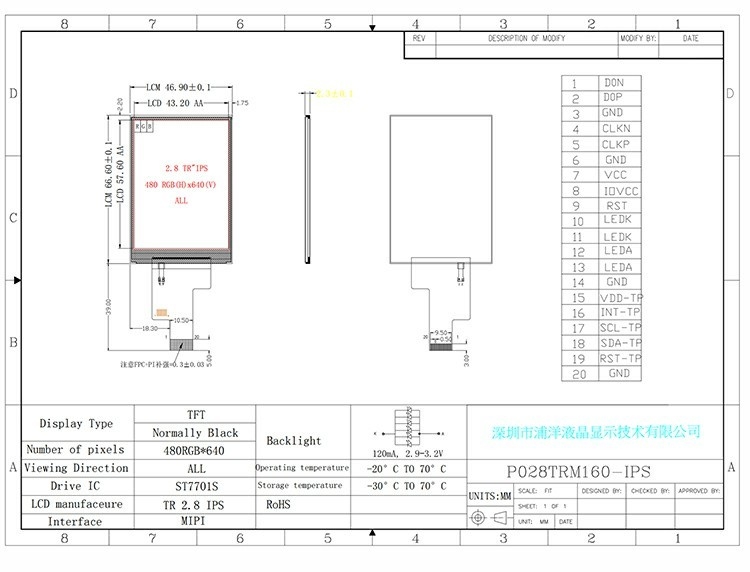

Model	P028TRM160-IPS
Screen Size	2.8 inch
Number of Pixel	480RGB(H)x640(V)
Display area	43.20(H)x57.60(V)
Pixel pitch	0.09(H)x0.09(V)mm
Pin	20 pins

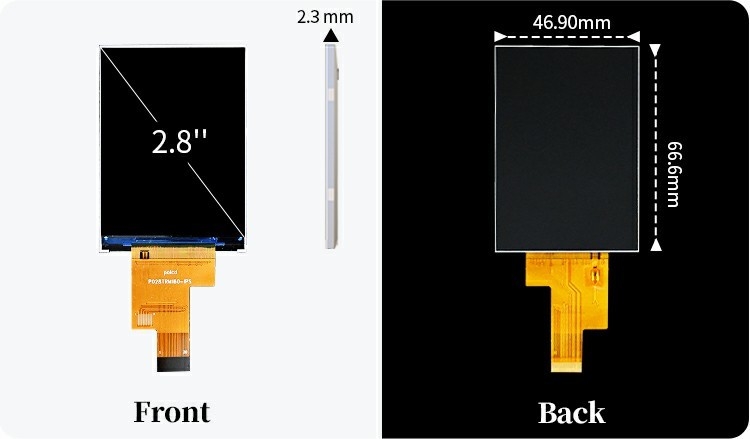

Outline Dimension	46.9x66.6x2.30mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262K
Luminance(cd/m2)	300 nit
Contrast Ratio	1000:1
Interface	MIPI

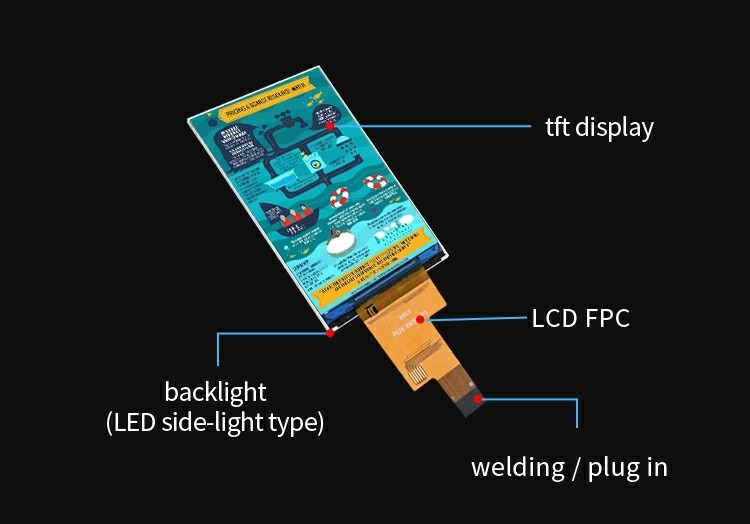

Back-light	LED Side-light type
Drive IC	ST7701S
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃
