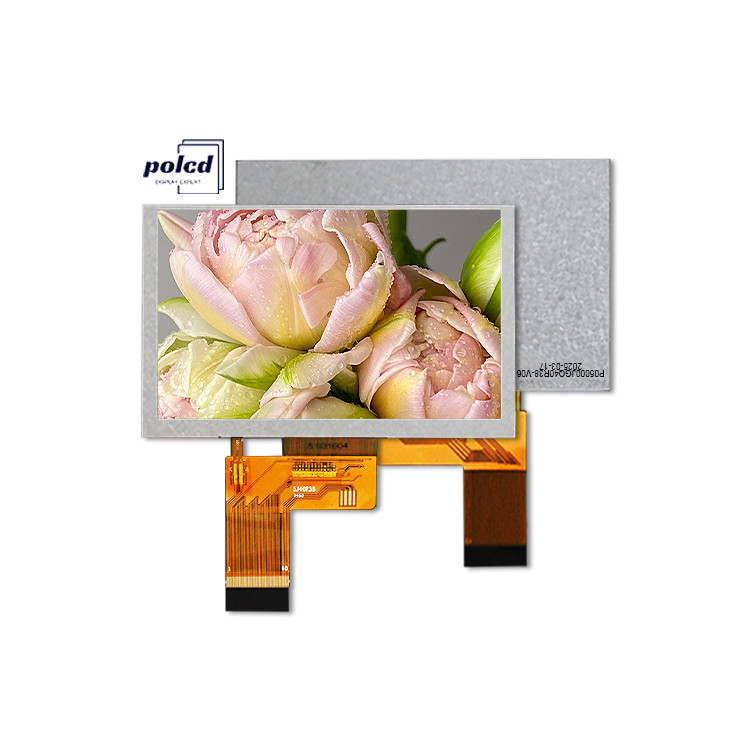

Polcd Custom 5 Inch LCD Module RGB Interface 800*480 ST7265 IPS Panel TFT LCD Display

Polcd Custom 5 Inch LCD Module RGB Interface 800*480 ST7265 IPS Panel TFT LCD Display

ST7265 TFT LCD Display

800*480 TFT LCD Display

5 Inch TFT LCD Display

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P05000JGQ40R38-V06

Contact Us

Request A Quote
Polcd Custom 5 Inch LCD Module RGB Interface 800*480 ST7265 IPS Panel TFT LCD Display
Polcd Custom 5 Inch LCD Module RGB Interface 800*480 ST7265 IPS Panel TFT LCD Display Polcd Custom 5 Inch LCD Module RGB Interface 800*480 ST7265 IPS Panel TFT LCD Display Polcd Custom 5 Inch LCD Module RGB Interface 800*480 ST7265 IPS Panel TFT LCD Display Polcd Custom 5 Inch LCD Module RGB Interface 800*480 ST7265 IPS Panel TFT LCD Display Polcd Custom 5 Inch LCD Module RGB Interface 800*480 ST7265 IPS Panel TFT LCD Display
Product Details
Resolution:
5 Inch 800x480
Display Mode:
TFT Transmissive
Viewing Direction(eye):
IPS Full View Angle
Driver IC:
ST7265
Display Area:
108.00(H)x64.80(V) Mm
Brightness:
500 Nit
Contrast Ratio:
1500:1
Interface:
RGB 24bit
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Delivery Time
1-7 working days
Payment Terms
T/T, L/C, Credit card, PayPal, D/A, D/P, Western Union, MoneyGram
Supply Ability
25,000 PCS per day
RELATED PRODUCTS
Good price Polcd Custom 5 Inch LCD Module RGB Interface 800*480 ST7265 IPS Panel TFT LCD Display online Video

Polcd Custom 5 Inch LCD Module RGB Interface 800*480 ST7265 IPS Panel TFT LCD Display

Get Best Price
Good price Polcd Custom TFT LCD 0.96 ~ 10.1 Video

Polcd Custom TFT LCD 0.96 ~ 10.1" LCM IPS Screen 2.4 2.8 3 3.5 4.3 5 7 inch Touch Panel TFT Display LCD Module

Get Best Price
Good price Polcd 240x320 Led Backlit Tft Lcd Display 2.4 Inch LCM 260 Nit Brightness Lcm Panel online Video

Polcd 240x320 Led Backlit Tft Lcd Display 2.4 Inch LCM 260 Nit Brightness Lcm Panel

Get Best Price
Good price 3.5inch Ips Touch Screen 320x480 Lcm Modules Ili9488 Mcu Spi Interface online Video

3.5inch Ips Touch Screen 320x480 Lcm Modules Ili9488 Mcu Spi Interface

Get Best Price
Contact Us
00-86-13714394335
anna@polcd.com
86-755-21011746
Contact Now
Product Description

Specifications:

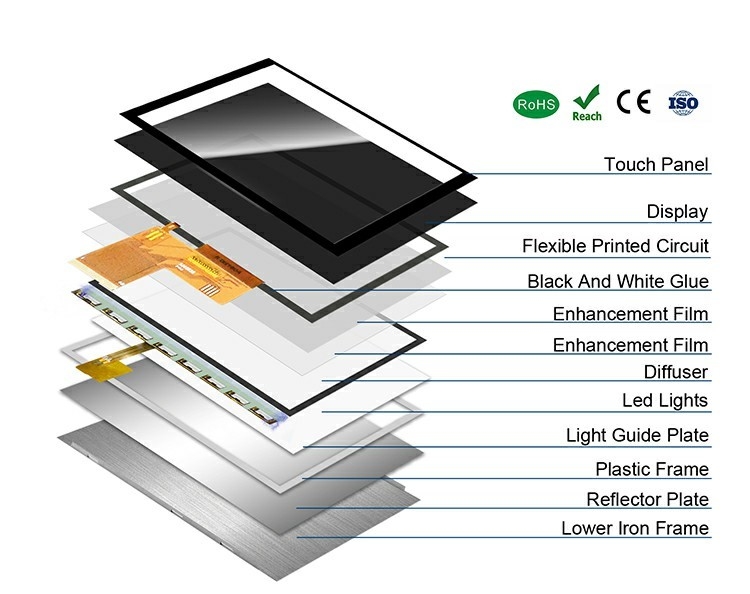

P05000JGQ40R38-V06 is a color active matrix liquid crystal display module using amorphous silicon TFT (thin film transistor). The module consists of a color TFT-LCD panel, driver IC, FPC and backlight unit. The module display area is 800x480 pixels. This product complies with RoHS environmental standards.



Parameter:

Model P05000JGQ40R38-V06
Screen Size 5 inch
Number of Pixel 800RGB(H)x480(V)
Active area (WxH) 108.00*64.80mm
Pins 40 pins
Module outline (W*H*D) 120.8*75.95*2.9(Typ)mm
LCD Type TFT Transmissive
Viewing Direction(eye) ALL
Luminance(cd/m2) 500 nit
Contrast Ratio 1500:1
Interface Parallel RGB 24-bit
Back-light LED Side-light type
Drive IC ST7265
Operation Temperature -20~70℃
Storage Temperature -30~80℃
Input voltage 3.3v



Polcd Custom 5 Inch LCD Module RGB Interface 800*480 ST7265 IPS Panel TFT LCD Display 0Polcd Custom 5 Inch LCD Module RGB Interface 800*480 ST7265 IPS Panel TFT LCD Display 1
