Name: Polcd Custom LCD Screen 2.8" QVGA TFT LCD Module ST7789V SPI interface 2.8 inch 240x320 IPS Display Panel
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P028B125-IPS
Availability: InStock

Home > products > Medical LCD Display >

Polcd Custom LCD Screen 2.8" QVGA TFT LCD Module ST7789V SPI interface 2.8 inch 240x320 IPS Display Panel

2.8 inch LCD Module

2.8 inch IPS Display Panel

2.8 inch LCD Screen

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P028B125-IPS

Chat Now

Product Details

Number Of Pixel:

240RGB(H)x320(V)

Screen Size:

2.8 Inch

Display Area:

43.20(H)x57.60(V)

Brightness (cd/m²):

300

Interface:

SPI / MCU / RGB

Driver Ic:

ST7789V

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

Sample packing box 20*18*13cm

Delivery Time

5-8 working days

Payment Terms

T/T, L/C, Credit card, PayPal

Supply Ability

500,000 piece per week

Polcd 2.8 Inch Tft Touch Lcd Display Module 240*320 RGB Interface Color Touch Small Screen

Get Best Price

Video

Polcd Custom Rgb Interface 2.8 Inch Small Color TFT Display Panel Touch Screen LCD Module

Get Best Price

Video

Polcd LCD Manufacturer 4.5 inch 480x854 Gc9503v Rgb interface High Brightness IPS TFT Screen Panel Display

Get Best Price

Video

Polcd 2.8 Inch LCM Module 240x320 Resolution MCU interface ST7789V 24pin IPS TFT LCD Screen Display

Get Best Price

00-86-13714394335

anna@polcd.com

86-755-21011746

Chat Now

Product Description

Description:

Suitable for a range of applications that require small form factor displays, this 2.8-inch TFT LCD display features IPS technology and an SPI interface, delivering high-quality visuals and efficient data transfer. It is a popular choice among manufacturers seeking reliable and efficient display solutions, thanks to its compact size and versatile functionality.

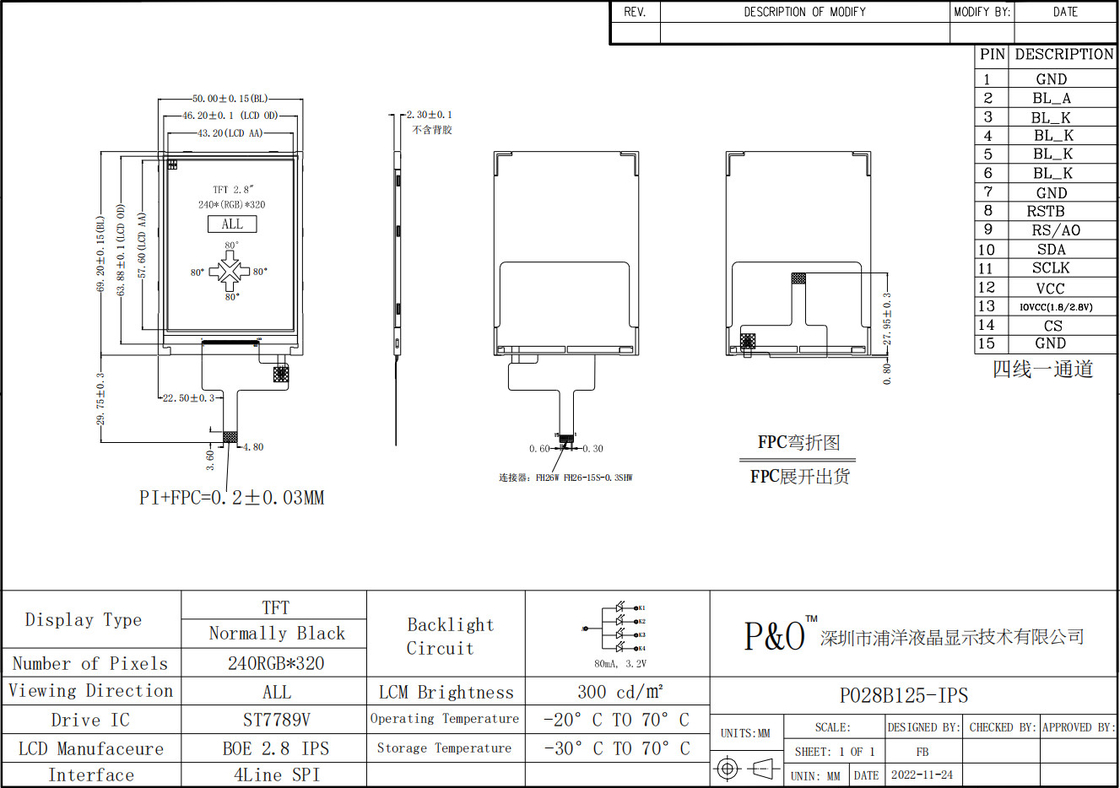

Parameter:

Model No.	P028B125-IPS
Screen Size	2.8 inch
Number of Pixel	240RGB(H)x320(V)
Pin	15 pins
Display area	43.20(H)x57.60(V)mm
Pixel pitch	0.180(H)x0.180(V)mm
Outline Dimension	50.00x69.20x2.30mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262K
Luminance(cd/m²)	300 nit
Contrast Ratio	1200:1
Interface	4wire SPI
Back-light	LED Side-light type
Drive IC	ST7789V
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

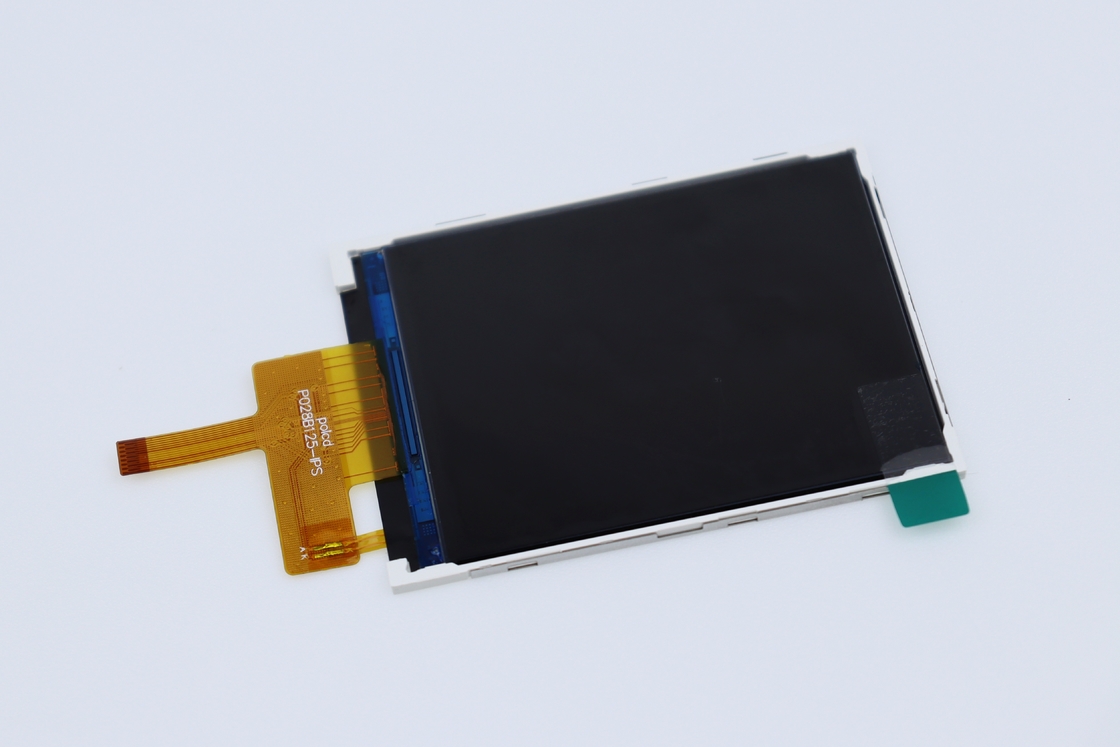

Polcd Custom LCD Screen 2.8" QVGA TFT LCD Module ST7789V SPI interface 2.8 inch 240x320 IPS Display Panel 0

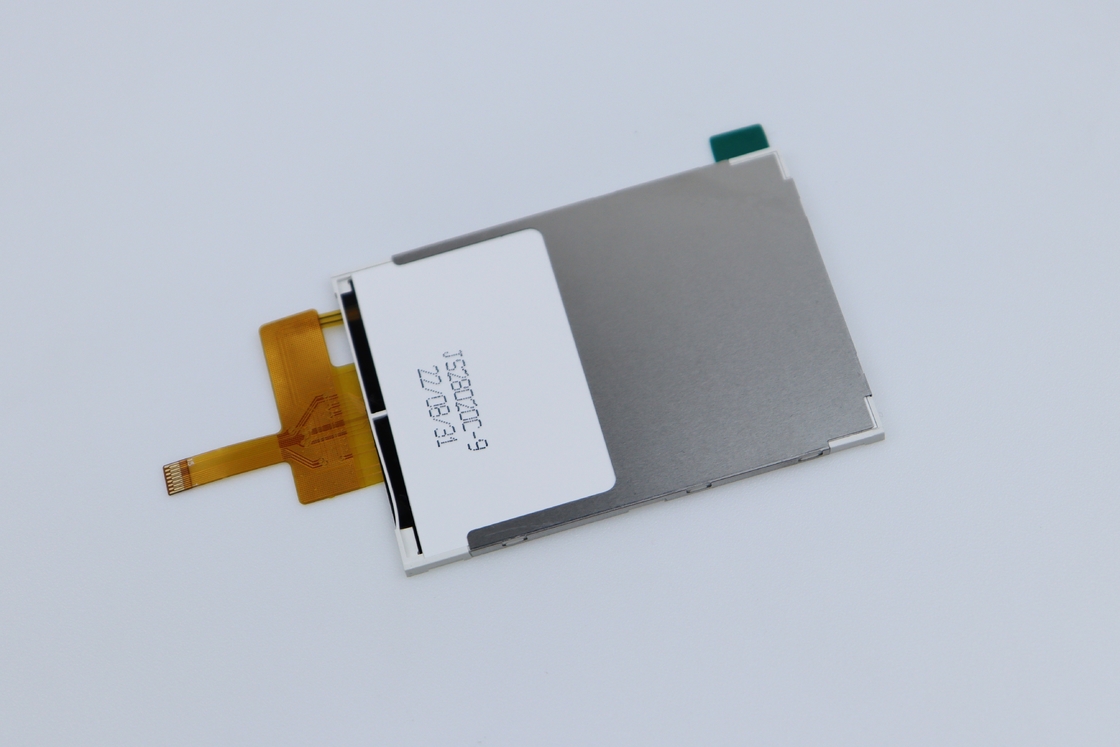

Polcd Custom LCD Screen 2.8" QVGA TFT LCD Module ST7789V SPI interface 2.8 inch 240x320 IPS Display Panel 3
