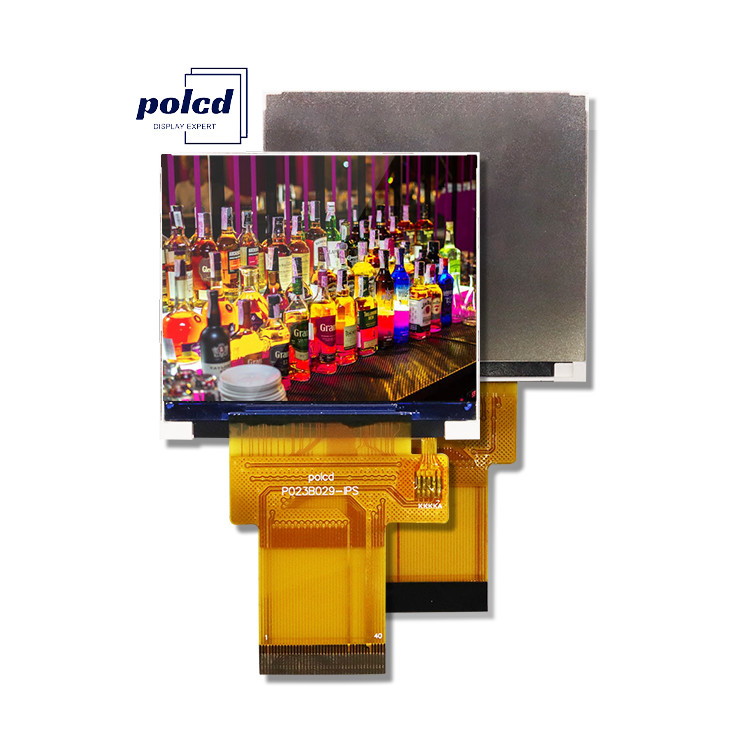

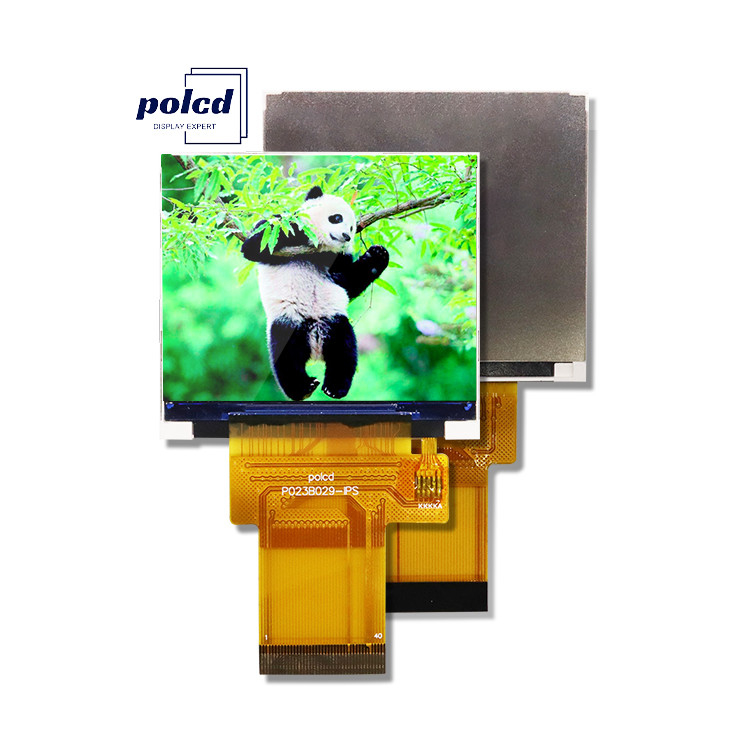

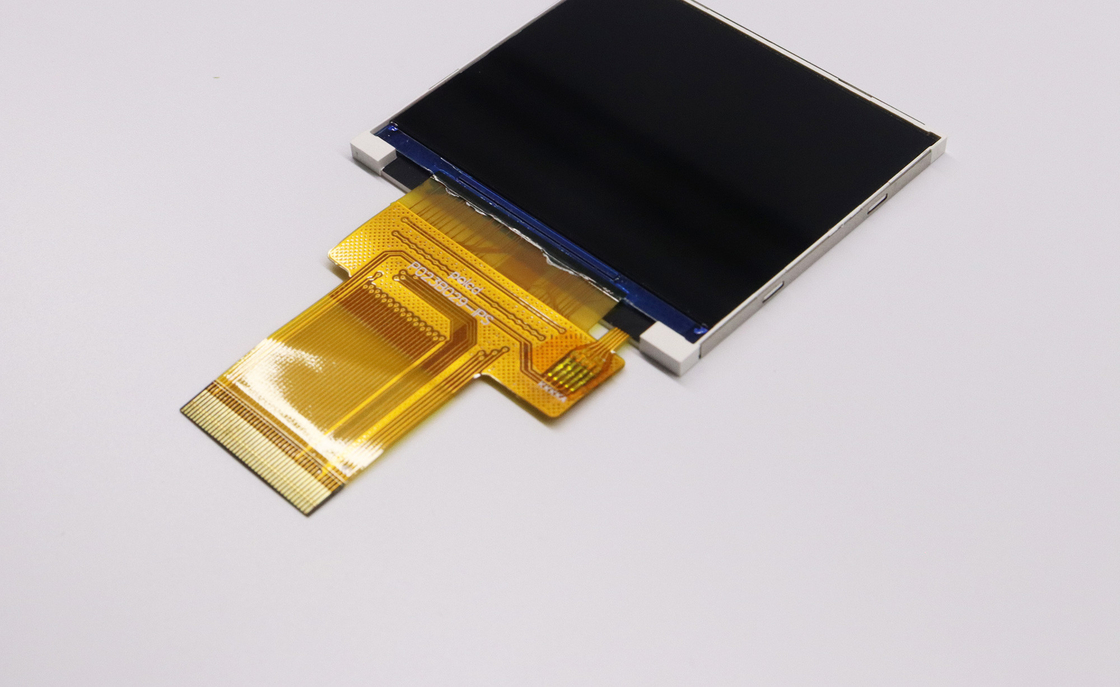

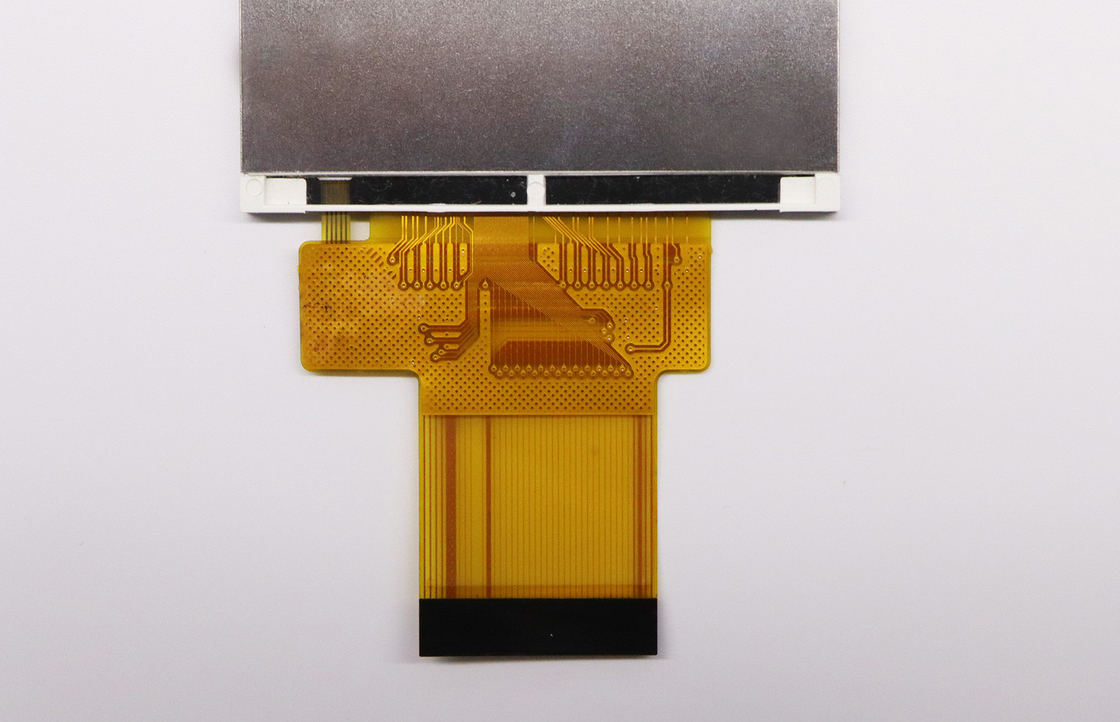

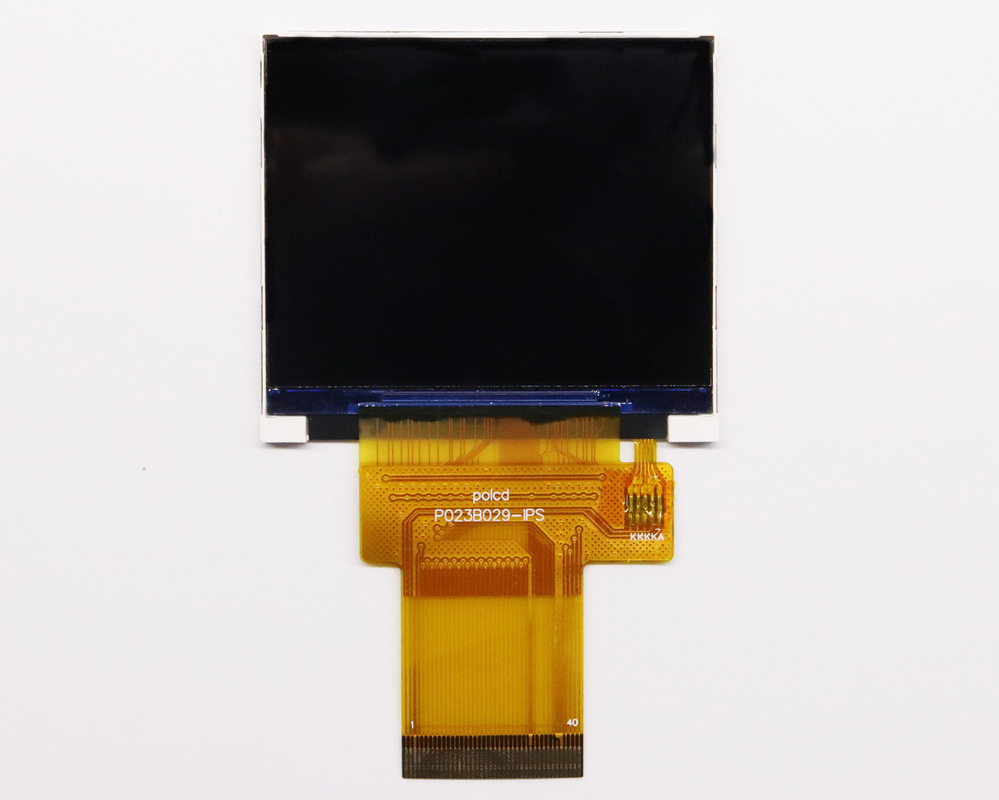

Polcd Small 2.3 inch 480x360 High Resolution RGB Color IPS Viewing Angle Landscape TFT LCD Screen

Polcd Small 2.3 inch 480x360 High Resolution RGB Color IPS Viewing Angle Landscape TFT LCD Screen

2.3 inch IPS TFT LCD Screen

High Resolution IPS TFT LCD Screen

480x360 IPS TFT LCD Screen

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P023B029-IPS

Contact Us

Request A Quote
Product Details
Size (inch):
2.31 Inch
Resolution:
480*360
Display Area:
46.8(H)x35.1(V)mm
Brightness (cd/m²):
310 Nit
Interface:
RGB 24bit
Driver Ic:
ST7701S
Viewing Direction(eye):
IPS Full View Angle
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Delivery Time
1~7 working days
Payment Terms
T/T, L/C, Credit card, PayPal, D/A, D/P, Western Union, MoneyGram
Supply Ability
25,000 PCS per day
Product Description

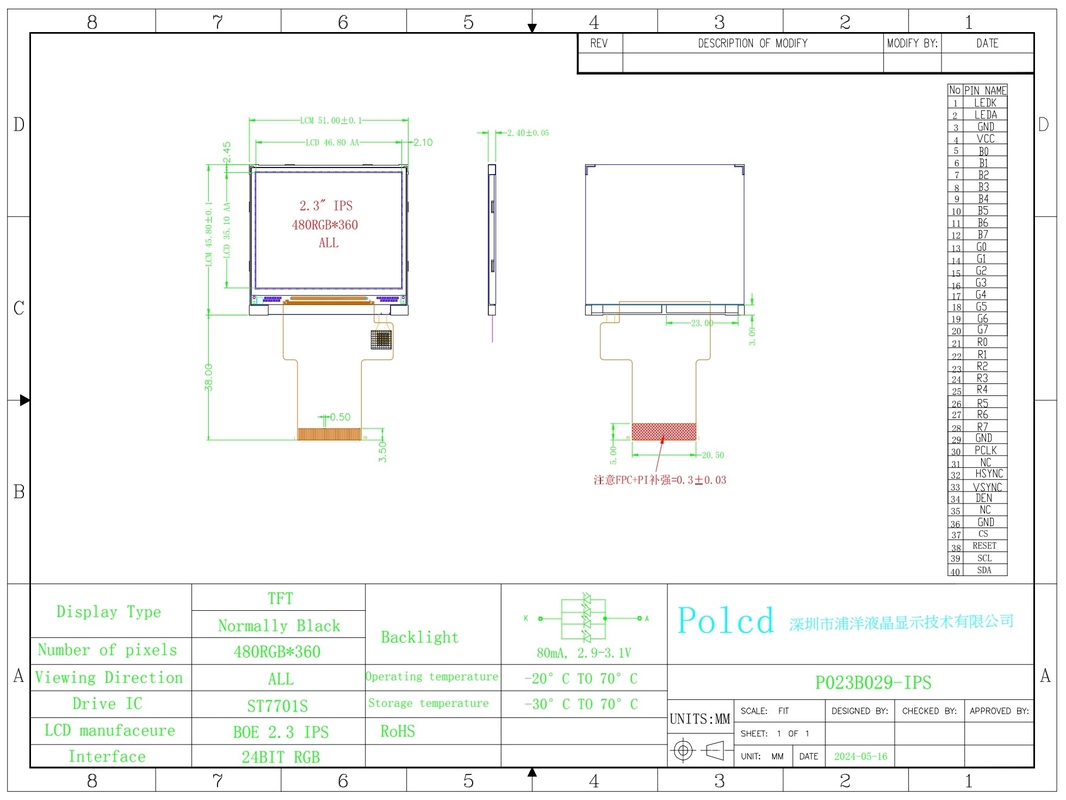

Parameter:

Model P023B029-IPS
Screen Size 2.31 inch
Number of Pixel 480RGB(H)x360(V)
Display area 46.8(H)x35.1(V)mm
Pixel pitch 0.0975(H)x0.0975(V)mm
Pin 40 pin
Outline Dimension 51x45.8x2.4mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Display Color 262K
Luminance(cd/m2) 310 nit
Contrast Ratio 1200:1
Interface RGB 24bit
Back-light LED Side-light type
LCM Drive IC ST7701S
Operation Temperature -20~70℃
Storage Temperature -30~80℃



Polcd Small 2.3 inch 480x360 High Resolution RGB Color IPS Viewing Angle Landscape TFT LCD Screen 0Polcd Small 2.3 inch 480x360 High Resolution RGB Color IPS Viewing Angle Landscape TFT LCD Screen 1Polcd Small 2.3 inch 480x360 High Resolution RGB Color IPS Viewing Angle Landscape TFT LCD Screen 2
