Name: Polcd 3.5 Inch QVGA LCD Display Featured 320x480 Resolution MCU SPI Interface Touch Panel 3.5" TFT LCD Modules
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P035C013-V6-CTP-911
Availability: InStock

Home > products > Medical LCD Display >

Polcd 3.5 Inch QVGA LCD Display Featured 320x480 Resolution MCU SPI Interface Touch Panel 3.5" TFT LCD Modules

3.5 Inch LCD Display

320x480 Resolution LCD Display

3.5 Inch QVGA LCD Display

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P035C013-V6-CTP-911

Request A Quote

Product Details

Screen Size:

3.5 Inch

Resolution:

320*480

Brightness (cd/m²):

300 Nit

Interface:

MCU 8/16bit SPI 3/4wire

Driver Ic:

ILI9488

Display Area:

48.96(H)x73.44(V)mm

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

20 cm * 30 cm * 40 cm

Delivery Time

1~7 working days

Payment Terms

T/T, L/C, Credit card, PayPal

Supply Ability

500,000 piece per week

anna@polcd.com

86-755-21011746

Contact Now

Product Description

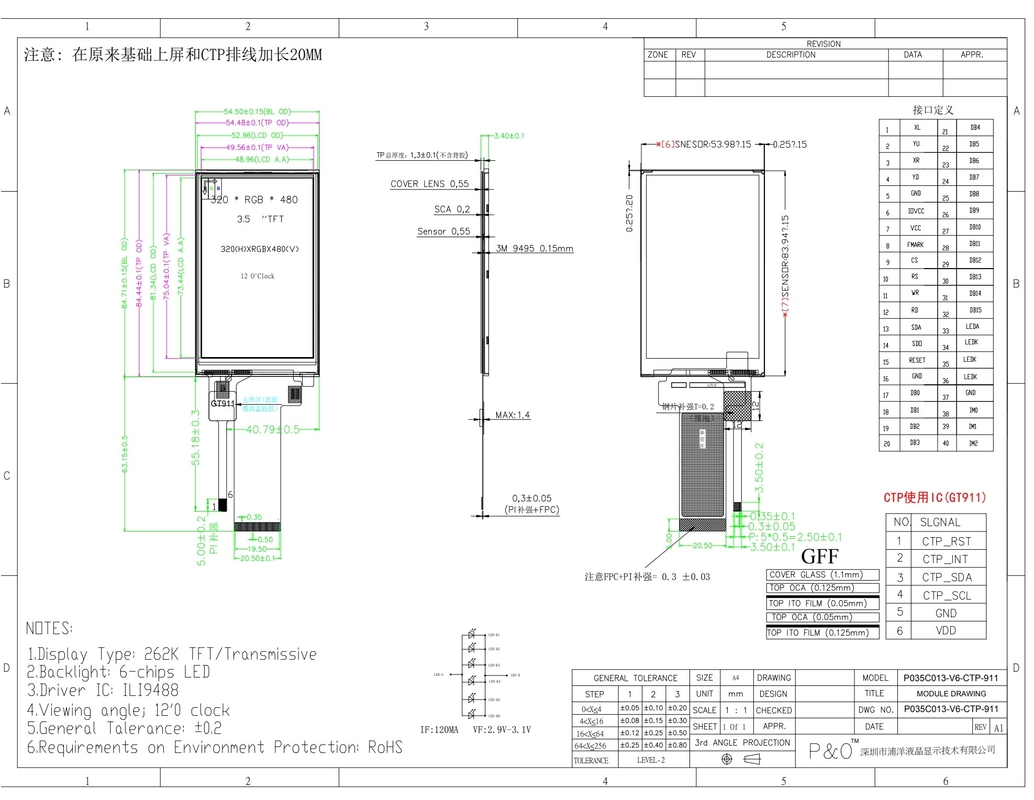

Parameter:

Model	P035C013-V6-CTP-911
Screen Size	3.5 inch
Number of Pixel	320RGB(H)x480(V)
Display area	48.96(H)x73.44(V)mm
Pixel pitch	0.153(H)x0.153(V)mm
Pins	40 pins

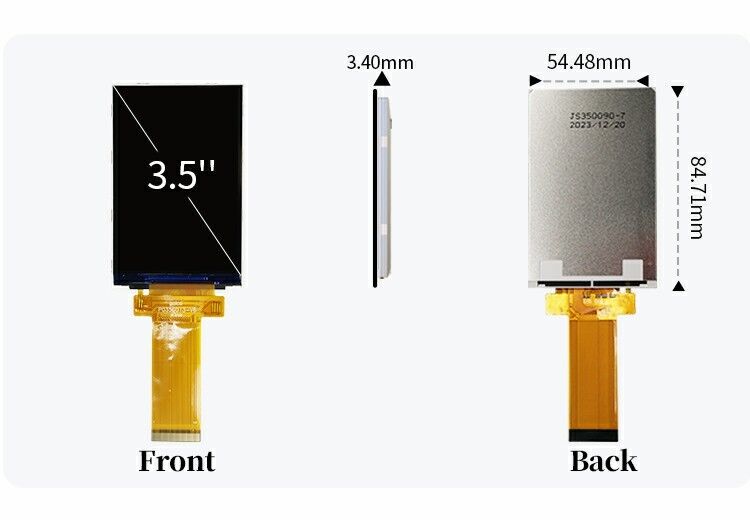

Outline Dimension	54.48x84.71x3.40mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally white
Viewing Direction(eye)	12 0’CLOCK
Gray inversion direction	--
Display Color	262K
Luminance(cd/m2)	300 nit
Contrast Ratio	500:1
Surface treatment	--
Interface	MCU 8/16bit SPI 3/4 wire
Back-light	LED Side-light type
Drive IC	ILI9488
CTP IC	GT911

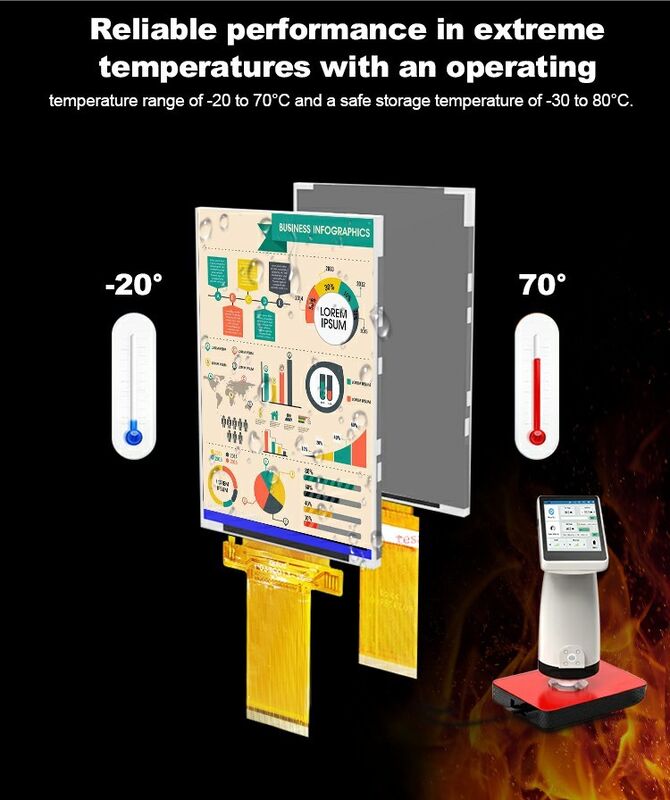

Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

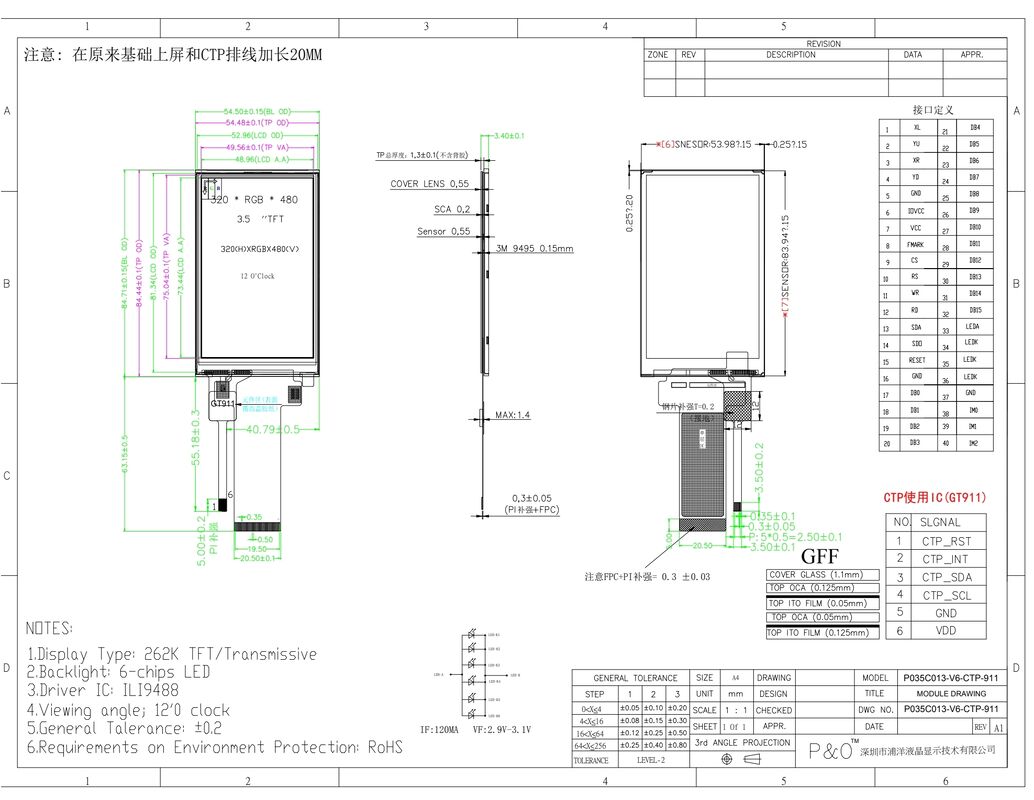

Polcd 3.5 Inch QVGA LCD Display Featured 320x480 Resolution MCU SPI Interface Touch Panel 3.5" TFT LCD Modules 0
