Polcd 5 Inch LCD Vertical Screen 720*1280 MIPI Interface Capacitive Touch Panel IPS 5" TFT Display

Polcd 5 Inch LCD Vertical Screen 720*1280 MIPI Interface Capacitive Touch Panel IPS 5" TFT Display

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P050H031-V2-IPS-CTP

Contact Us

Request A Quote
Product Details
Resolution:
5 Inch 720x1280
Display Mode:
TFT: Transmissive
Viewing Direction(eye):
IPS Full View Angle
Driver IC:
ST7703
Display Area:
62.10(H)x110.40(V)mm
Brightness:
350 Nit
Contrast Ratio:
800:1
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Delivery Time
1-7 working days
Payment Terms
T/T, L/C, Credit card, PayPal, D/A, D/P, Western Union, MoneyGram
Supply Ability
25,000 PCS per day
Product Description

Parameter:

Model P050H031-V2-IPS-CTP
Screen Size 5 inch
Number of Pixel 720RGB(H)x1280(V)
Pin 30 pin
Display area 62.10(H)x110.40(V)mm
Pixel pitch 0.0945(H)x0.0945(V)mm

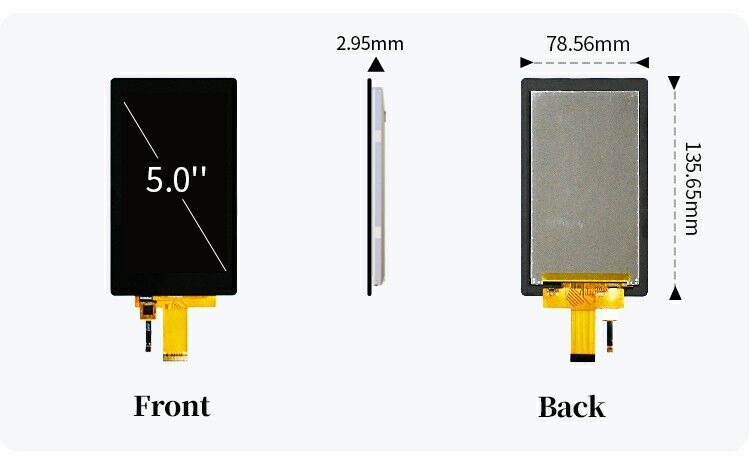

Outline Dimension 78.56x135.65x2.95mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Display Color 262K
Luminance(cd/m2) 350 nit
Contrast Ratio 800:1
Interface MIPI
Back-light LED Side-light type
LCM IC ST7703
CTP IC GT911
Operation Temperature -20~70
Storage Temperature -30~80



Polcd 5 Inch LCD Vertical Screen 720*1280 MIPI Interface Capacitive Touch Panel IPS 5" TFT Display 0Polcd 5 Inch LCD Vertical Screen 720*1280 MIPI Interface Capacitive Touch Panel IPS 5" TFT Display 1
