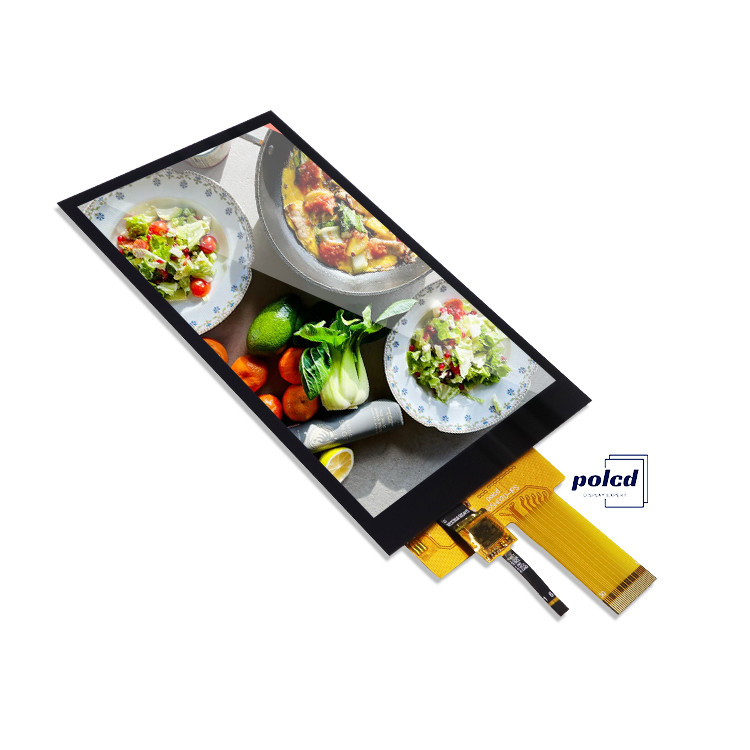

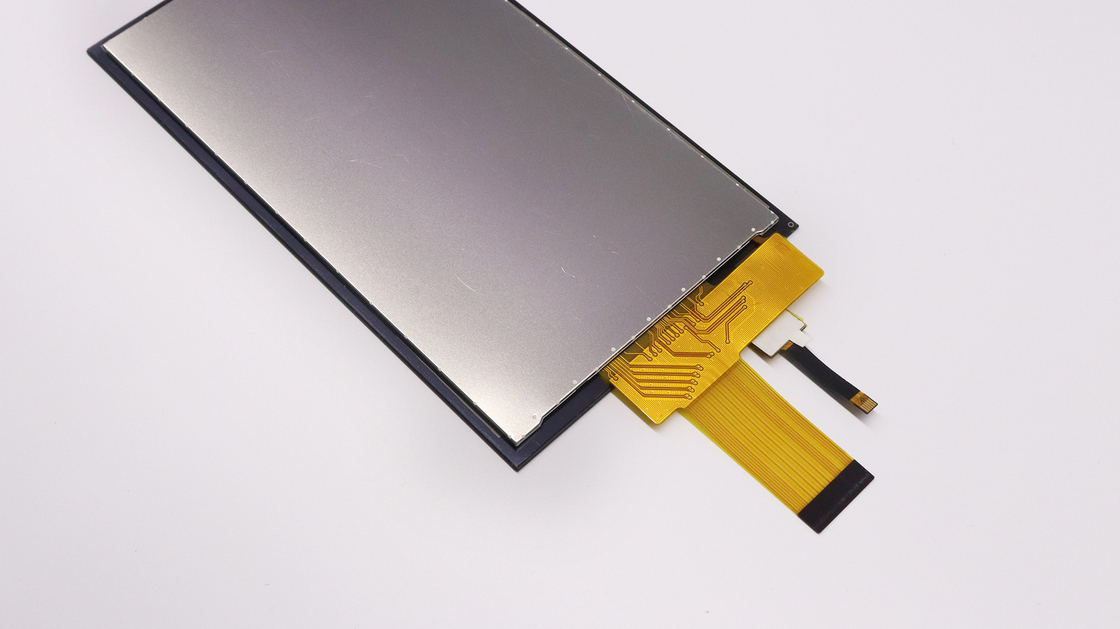

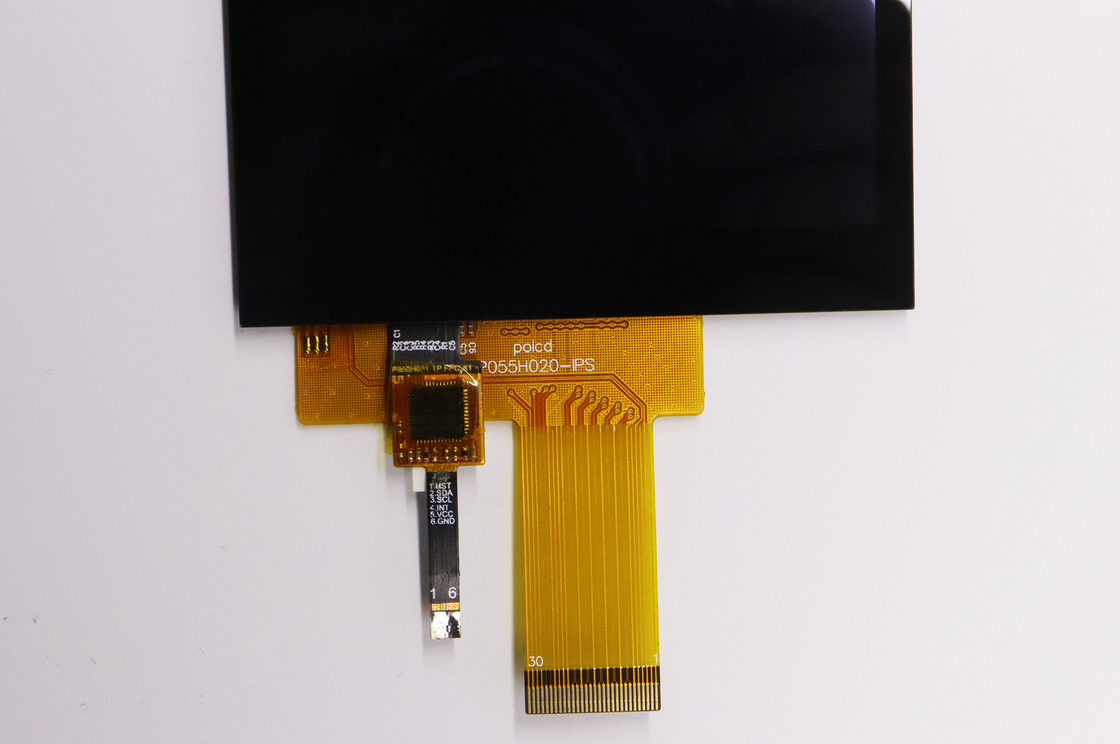

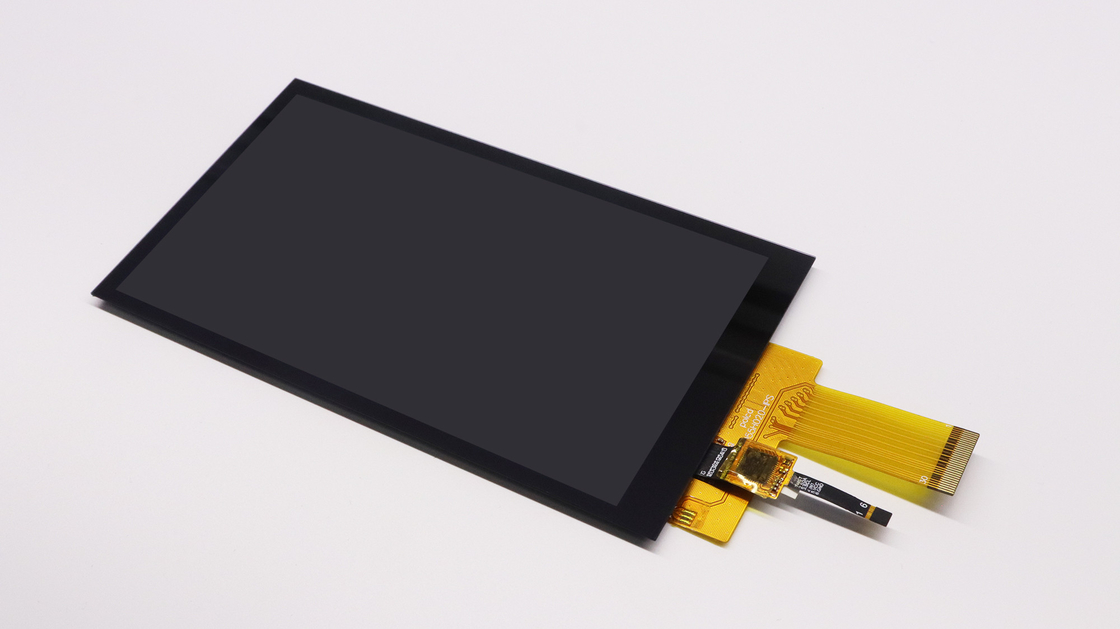

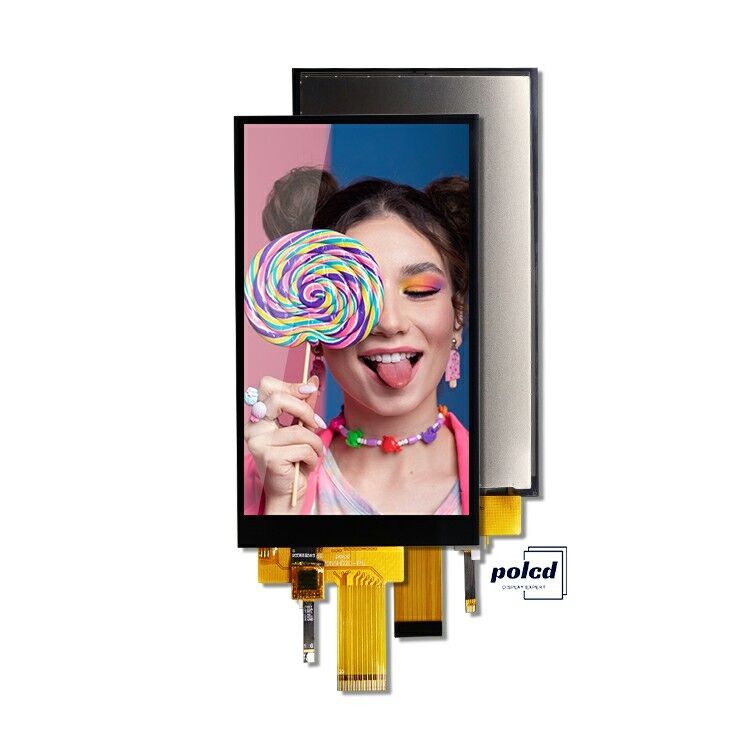

Polcd MIPI Interface 5.5 Inch Small Color Display Panel Capacitive Touch Screen TFT LCD Module

Polcd MIPI Interface 5.5 Inch Small Color Display Panel Capacitive Touch Screen TFT LCD Module

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P055H020-V2-IPS-CTP

Contact Us

Request A Quote
Product Details
Size (inch):
5.5 Inch
Resolution:
720*1280
Display Area:
68.04(H)x120.96(V)mm
Brightness (cd/m²):
350 Nit
Interface:
MIPI
Driver IC:
ST7703
CTP IC:
GT911
Viewing Direction(eye):

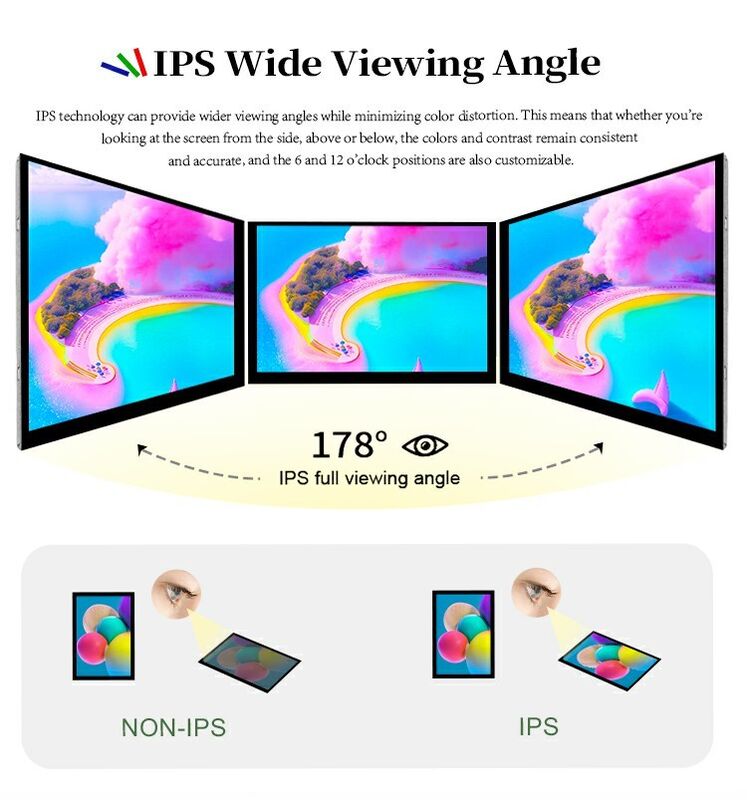

IPS Full View Angle
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
20 cm * 30 cm * 40 cm
Delivery Time
5-8 working days
Payment Terms
T/T, L/C, Credit card, PayPal
Supply Ability
500,000 piece per week
Product Description

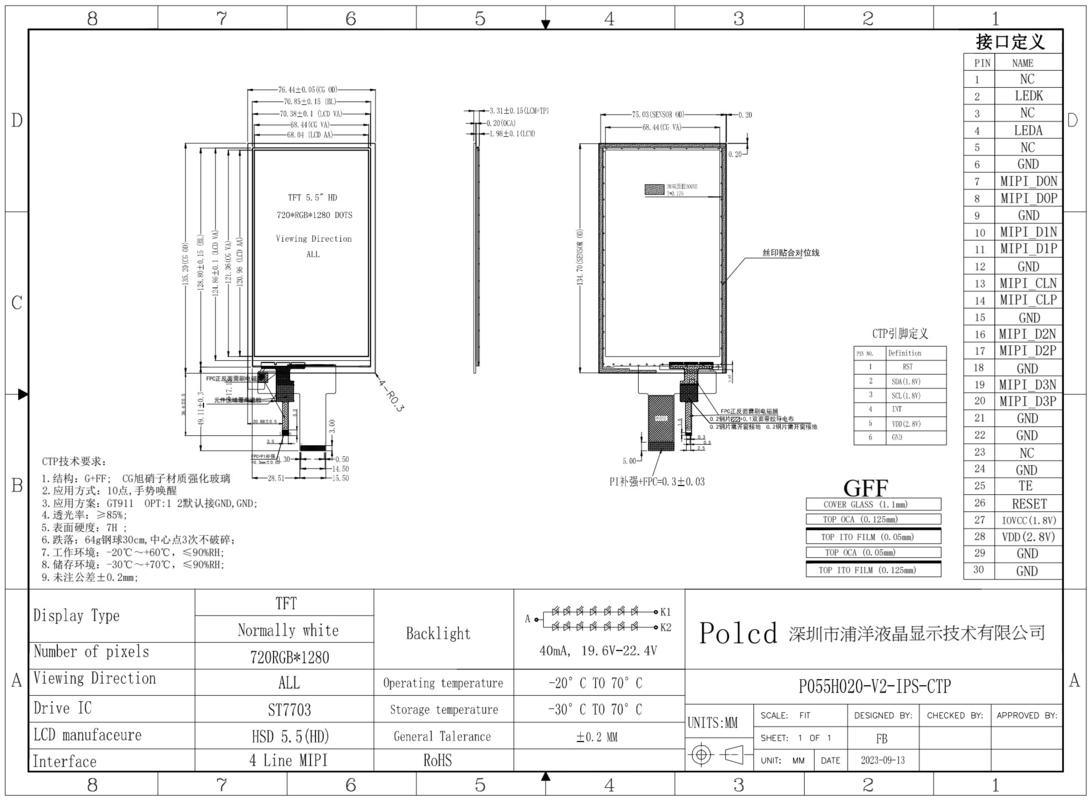

Parameter:

Model P055H020-V2-IPS-CTP
Screen Size 5.5 inch
Number of Pixel 720RGB(H)x1280(V)
Pin 30 pin
Display area 68.04(H)x120.96(V)mm
Pixel pitch 0.0945(H)x0.0945(V)mm
Outline Dimension 76.44x135.20x3.31mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Display Color 262K
Luminance(cd/m2) 350 nit
Contrast Ratio 800:1
Interface MIPI
Back-light LED Side-light type
LCM IC ST7703
CTP IC GT911
Operation Temperature -20~70
Storage Temperature -30~80



Polcd MIPI Interface 5.5 Inch Small Color Display Panel Capacitive Touch Screen TFT LCD Module 0Polcd MIPI Interface 5.5 Inch Small Color Display Panel Capacitive Touch Screen TFT LCD Module 1Polcd MIPI Interface 5.5 Inch Small Color Display Panel Capacitive Touch Screen TFT LCD Module 2
