Name: 4.5 Inch IPS LCD 480x854 RGB Interface ST7701S TFT LCD Display with Capacitive Touch Panel
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P045IVR04-IPS-CTP-V2
Price: Negotiable USD
Availability: InStock

Home > products > IPS TFT LCD Display >

4.5 Inch IPS LCD 480x854 RGB Interface ST7701S TFT LCD Display with Capacitive Touch Panel

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P045IVR04-IPS-CTP-V2

Request A Quote

4.5 Inch IPS LCD 480x854 RGB Interface ST7701S TFT LCD Display with Capacitive Touch Panel

Product Details

Resolution:

480x854

Interface:

RGB 24bit

LCM Driver Ic:

ST7701S

Brightness (cd/m²):

300 Nit

Viewing Angle:

IPS All View Angle

Display Area:

55.44(H)x98.64(V)mm

CTP IC:

GT911

Contrast Ratio:

1200:1

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

1-7 working days

Payment Terms

T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,

Supply Ability

40,000 PCS per day

Polcd Custom Industrial 2.8 Inch RGB Display Panel Waterproof Capacitive TFT LCD Modules with Touch Screen

Get Best Price

Video

Polcd 2.4" TFT SPI 240*320 RGB Color 14 Pin ST7789V Small IPS Full Viewing Angle 2.4 inch TFT LCD Display

Get Best Price

Video

Polcd Factory 2.4" Screen TFT Display Qvga 240x320 Lcm Screen Panel 2.4 inch TFT Liquid Crystal Display

Get Best Price

Video

Polcd 2.4" Small Lcd Display Module 240x320 Resolution SPI ST7789V IC TFT LCD Module for Home Appliances

Get Best Price

008613714394335

anna@polcd.com

86-755-21011746

Contact Now

Product Description

Parameter:

Model	P045IVR04-IPS-CTP-V2
Screen Size	4.5 inch
Number of Pixel	480RGB(H)x854(V)
Pin	40 pin
Display area	55.44(H)x98.64(V)mm
Pixel pitch	0.1155(H)x0.1155(V)mm

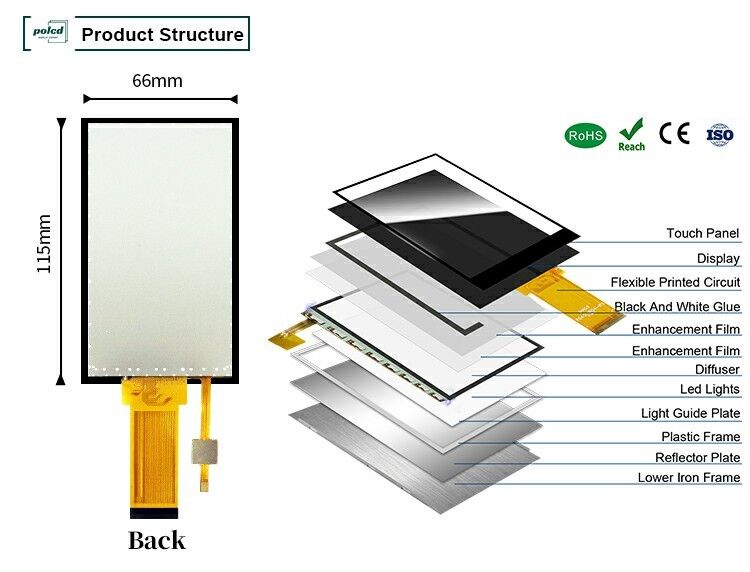

Outline Dimension	66x115x3.7±0.2mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262K
Luminance(cd/m²)	300 nit
Contrast Ratio	1200:1
Interface	RGB 24bit
Back-light	LED Side-light type
Drive IC	ST7701S
CTP IC	GT911
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃
